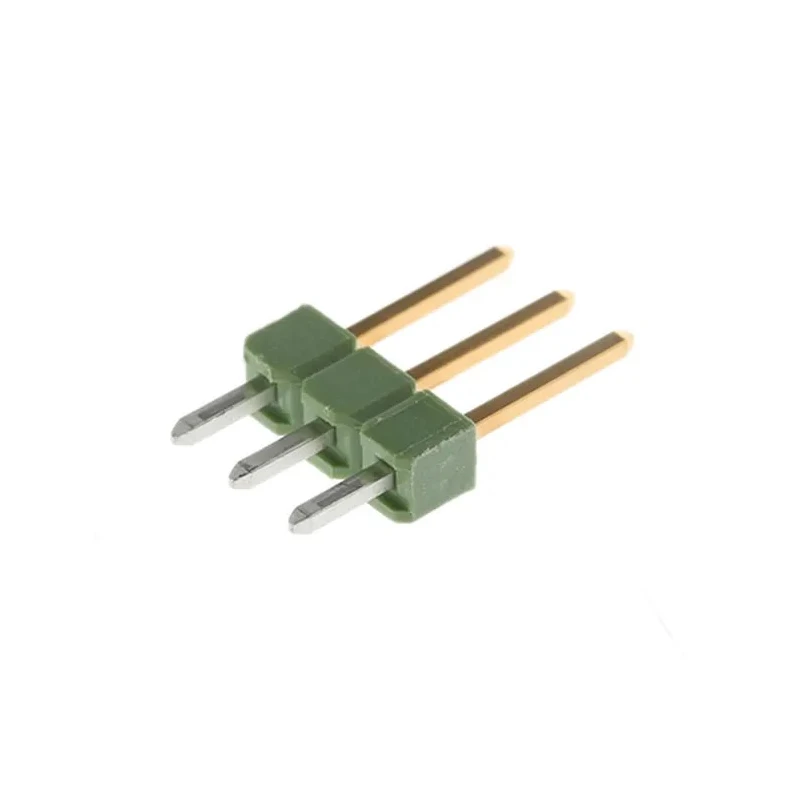

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 3 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 826629-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826629-3 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features 3 straight male contacts in a single row.
- Utilizes unshrouded construction allowing versatile breakaway to required size.
- Constructed with polybutylene terephthalate housing for durability.
- Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
- Through hole mount type for robust and stable PCB attachment.
- Suitable for operating temperatures from -65°C to 105°C.
- Tail pin length of 3.2 mm and mating pin length of 6.7 mm provide secure connections.
- Ideal for use in board-to-board and wire-to-board interconnect systems.
Product Description
TE Connectivity 826629-3 AMPMODU MOD II Series Straight Through Hole Pin Header features a single row of three male contacts with a 2.54 mm pitch, designed for board-to-board and wire-to-board applications. It has an unshrouded configuration allowing flexible breakaway for custom lengths and easy installation through solder post mounting, saving assembly time and labor.
The connector housing is made of durable polybutylene terephthalate, ensuring long-term reliability under a wide temperature range from -65°C to 105°C. Gold-plated brass contacts provide excellent electrical performance with resistance to corrosion and wear. It supports operational voltage up to 750 V and current up to 3 A, making it suitable for a wide variety of electronic designs.
This pin header is ideal for industrial automation, automotive controls, telecommunications systems, medical devices, computer equipment, and consumer electronics. Its straight orientation and through-hole mount type enable robust mechanical and electrical connections with printed circuit boards.
The tail pin length of 3.2 mm and mating pin length of 6.7 mm assure secure soldering and mating engagement. The unshrouded design allows technicians to break the header to the required size, accommodating customized layouts efficiently.
Features 3 straight male contacts in single row. Durable polybutylene terephthalate housing. Gold-plated brass contact material. Temperature operating range -65°C to 105°C. Voltage rating 750 V, current rating 3 A. Through hole mount saves assembly time.
Versatile board-to-board and wire-to-board use. Unshrouded for flexible breakaway sizing. Robust solder termination with 3.2 mm tail length. Common in automotive, industrial, telecom, and medical applications. Explore more connectors and electronic components from TE Connectivity on EnvMart for your industrial and manufacturing needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this pin header is 750 V.
This model has a current rating of 3 A.
The connector housing is made of polybutylene terephthalate, and the contacts are made of brass with gold plating.
It operates within a temperature range of -65°C to 105°C.
This pin header features 3 male contacts in a single row.
The pitch of the contacts is 2.54 mm.
It uses a through hole mount type for robust PCB attachment.
The tail pin length is 3.2 mm.
The mating pin length is 6.7 mm.
Yes, it is designed for board-to-board and wire-to-board applications.
The orientation of this pin header is straight.
The country of origin for this product is India.
