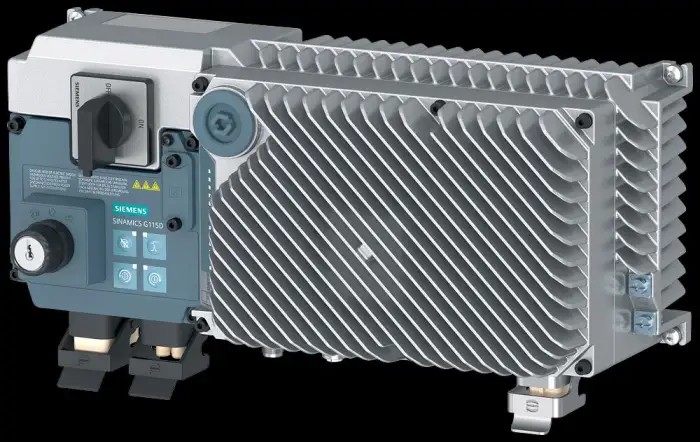

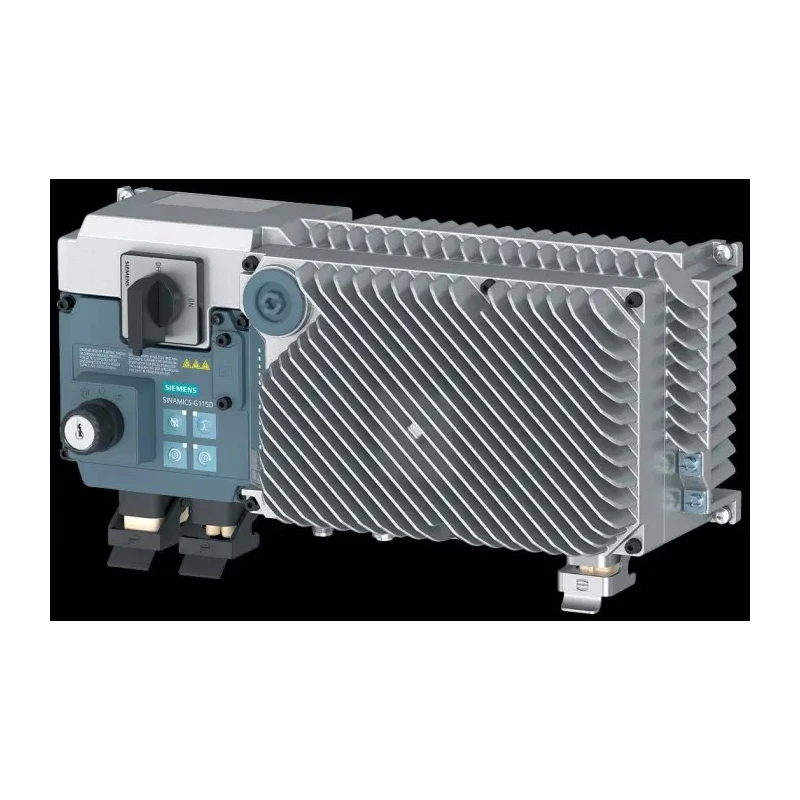

Siemens SINAMICS G115D Wall-Mounted AC Inverter Drive 380-480V, 8.2A Max Output Current 6SL3520-1XH61-5AA0

Siemens 6SL3520-1XH61-5AA0 SINAMICS G115D series Inverter Drive is a wall-mounted AC inverter designed for industrial automation and control applications. It operates with an input voltage ranging from 380V to 480V and delivers a maximum high level output current of 8.2A. This drive supports highly efficient three-phase asynchronous motors up to efficiency class IE3 and synchronous reluctance motors up to IE4, making it suitable for energy-conscious manufacturing environments.

The compact dimensions (129mm length, 380mm width, and 216mm height) allow for flexible installation in tight spaces without the need for a dedicated control cabinet, significantly reducing installation costs and cooling requirements. Operating reliably in temperatures from -30°C to 55°C, this inverter is built for robust performance under varied industrial conditions.

Siemens designed the SINAMICS G115D system as a modular, preconfigured solution to simplify commissioning, wiring, and maintenance. The system’s wall-mounted design facilitates quick deployment while minimizing power losses and interference by allowing shorter cable runs between converters and motors.

As part of a comprehensive drive system, this inverter is compatible with the worldwide-used SIMOGEAR 2KJ8 geared motors, offering uniform performance regardless of supply voltage variations. The drive complies with a wide range of international standards such as CE, UL, REACH, Low-Voltage Directive 2014/35/EC, EMC Directive 2014/30/EC, and others, ensuring safety and regulatory adherence across global industrial markets.

The drive supports three-phase asynchronous motors up to IE3 efficiency and synchronous reluctance motors up to IE4 class. Designed for easy installation and cabling with wall-mounted mount type. Operating temperature range from -30°C to 55°C ensures reliable performance in varied environments.

Compact dimensions: Length 129mm, Width 380mm, and Height 216mm for space-efficient setups. Compliance with multiple international standards including CE, UL, REACH, and EMC regulations. No control cabinet required, saving space and reducing cooling needs.

Compatible with SIMOGEAR 2KJ8 geared motors globally irrespective of line voltage. Robust and modular design supports versatile industrial automation applications.

This inverter drive is ideal for automation in manufacturing, industrial process control, HVAC systems, and other commercial applications requiring efficient motor management. Its modular design and compliance with global standards make it suitable for worldwide integration and usage.
