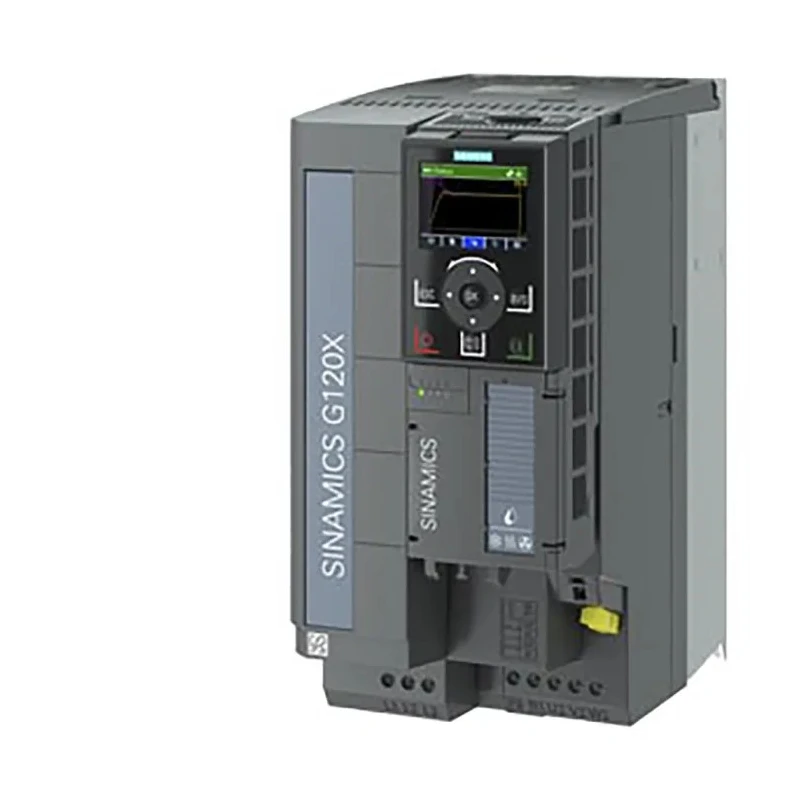

Siemens SINAMICS G120X Series 15 kW 3 Phase Inverter Drive, 480V, 12 A, Wall Mount 6SL3220-1YE28-0UF0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3220-1YE28-0UF0 |
| IP Rating | IP20 |
| Drive Type | PID Control |
| Mount Type | Wall |
| Overall Length | 140mm |
| Series | SINAMICS G120X |
| Overall Width | 209mm |
| Power Rating | 15kW |
| Maximum Operating Temperature | +55°C |
| Output Frequency | 200Hz |
| Minimum Operating Temperature | -20°C |
| Number of Phases | 3 |
| Maximum Output Current | 12A |
| Standards/Approvals | CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, UL Listed |
| Maximum Supply Voltage | 480V |
| Overall Depth | 295mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- The inverter features a robust wall mount design suitable for compact installations.
- It supports output frequencies up to 200 Hz for precise motor control.
- Compatible with AC motors and equipped with PID control drive for efficient operation.
- Designed to operate in harsh environments with an operating temperature range from -20°C to +55°C.
- Constructed to meet international standards including CE, cUL, EAC, KCC, RCM, REACH, SEMI F47, and UL listing.
- Has an IP20 rating ensuring protection against solid objects for indoor industrial environments.
- Compact dimensions of 140 mm length, 209 mm width, and 295 mm depth save control cabinet space.
- Manufactured in the United Kingdom ensuring high-quality production standards.
Product Description
Siemens 6SL3220-1YE28-0UF0 SINAMICS G120X Series inverter drive is engineered for industrial automation applications requiring precise and reliable motor control. Rated at 15 kW power with a 3 phase input, this inverter is designed to operate on supply voltages ranging from 380V to 480V with a maximum output current of 12 A and a maximum frequency of 200 Hz. The wall mount type design facilitates easy integration in compact control cabinets, optimizing space utilization.
The Inverter Drive is optimized for HVAC, water, wastewater, and building technology sectors, emphasizing straightforward installation and commissioning with options such as the SINAMICS G120 Smart Access Module and Intelligent Operator Panels.
Operating temperature range from -20°C to +55°C ensures robust performance in diverse environmental conditions. The unit complies with numerous certifications including CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, and UL Listed, signifying global standards conformance. Its compact size (140 mm length x 209 mm width x 295 mm depth) further assists in efficient cabinet layout.
The inverter provides PID control drive and is compatible with AC motors, furnishing stable operation under variable line conditions. The device features IP20 ingress protection suited for indoor industrial environments. Constructed with sustainability in mind, it is an energy-efficient component contributing to reduced power consumption and environmental impact.
Applications for the Siemens SINAMICS G120X inverter include industrial motor drives in HVAC systems, water and wastewater treatment plants, and building automation. Its rugged electrical design and advanced control options make it a versatile solution for various industrial automation challenges.
The inverter is user-friendly with intuitive operator panels and interfaces. It offers robust and reliable construction ensuring long-term durability. Energy efficiency helps reduce operational energy costs. Wide range of power ratings and frame sizes available within the SINAMICS G120X series.
Designed to meet the demands of harsh industrial environments.
For engineers and system integrators seeking dependable and efficient frequency converters, the Siemens SINAMICS G120X series provides versatile options. Explore our full range of automation products to optimize your industrial control systems.
