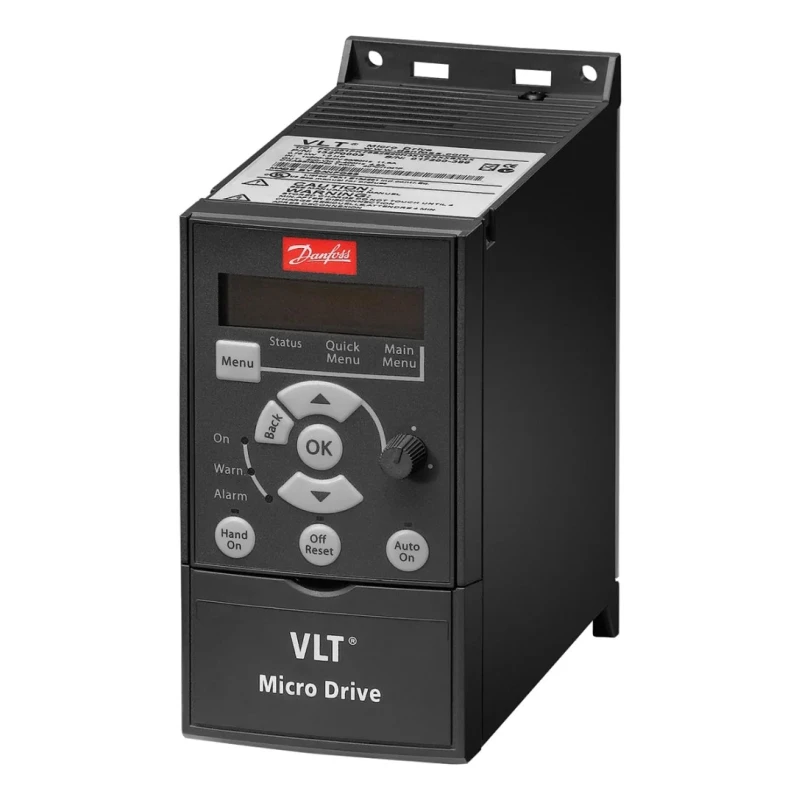

Danfoss Inverter Drive 370 W 3 Phase VLT FC51 Series Panel Mount 400V ac 1.2 A FC51

Danfoss FC51 Inverter Drive is a high-performance 370 W variable speed drive designed for three phase AC motors, delivering reliable control and energy efficiency. It operates at a supply voltage of 400V AC with a maximum output current of 1.2 A, providing precise frequency outputs at 200 and 400 Hz. This panel mount drive features a compact form factor with dimensions of 239mm width, 194mm depth, and 90mm length, making it convenient for various industrial installations.

The drive incorporates advanced features including a Process PI-controller, Automatic Energy Optimizer (AEO), and Automatic Motor Tuning (AMT) which optimize motor performance and reduce energy consumption. It offers robust motor torque of up to 150% for one minute and supports flying start functionality to catch spinning motors, enhancing operational flexibility.

Additional functions include built-in brake controls, electronic thermal relay for motor protection, and a built-in RFI filter to minimize electromagnetic interference. The VLT FC51 drive supports side-by-side mounting and is rated IP20 for adequate environmental protection. It adheres to international standards ISO 14001, RoHS, and WEEE, aligning with sustainable manufacturing and disposal practices.

Applications for the Danfoss FC51 inverter drive include controlling centrifugal pumps, radial and axial fans, compressors, and conveyor systems in industrial, manufacturing, HVAC, and automation settings. It ships without a control panel; however, control panels with LCD displays are available separately to enhance user interfacing.

Supports three phase input and panel mounting for flexible installation. Operates at 400V AC supply voltage with output frequency of 200 and 400 Hz. Maximum output current of 1.2 A with motor torque up to 150% for short durations.

Features advanced functions including Process PI-controller, Automatic Energy Optimizer, and Automatic Motor Tuning. Integrated brake functions, electronic thermal relay, and built-in RFI filter for enhanced performance.

Compact design with overall dimensions of 239mm width, 194mm depth, and 90mm length. IP20 rated for protection and supports compatible AC motor types. Designed to operate at maximum ambient temperature of 50°C with side-by-side mounting capability.

Adheres to environmental and safety standards such as ISO 14001, RoHS, and WEEE. Ideal for industrial applications including centrifugal pumps, fans, compressors, and conveyors. Choose Danfoss FC51 Inverter Drives at EnvMart for reliable, energy-saving motor control solutions suitable for a wide range of industrial automation requirements.
