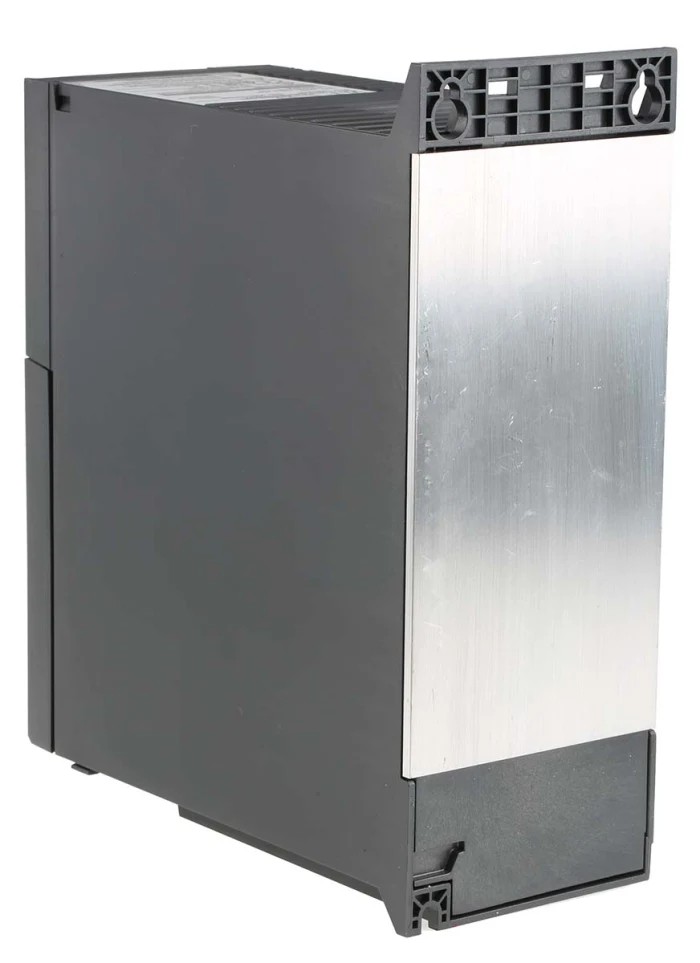

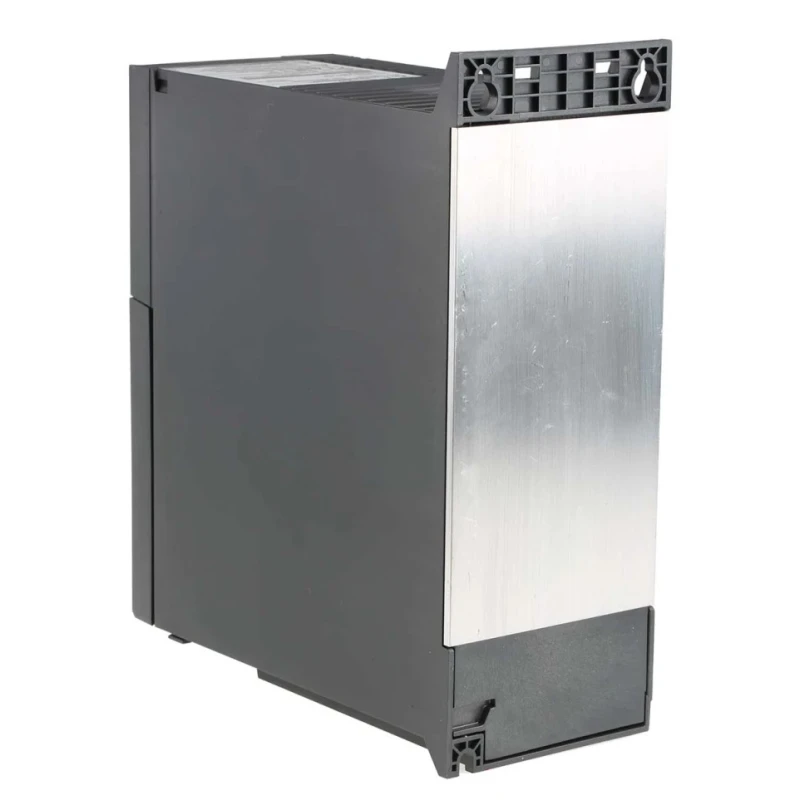

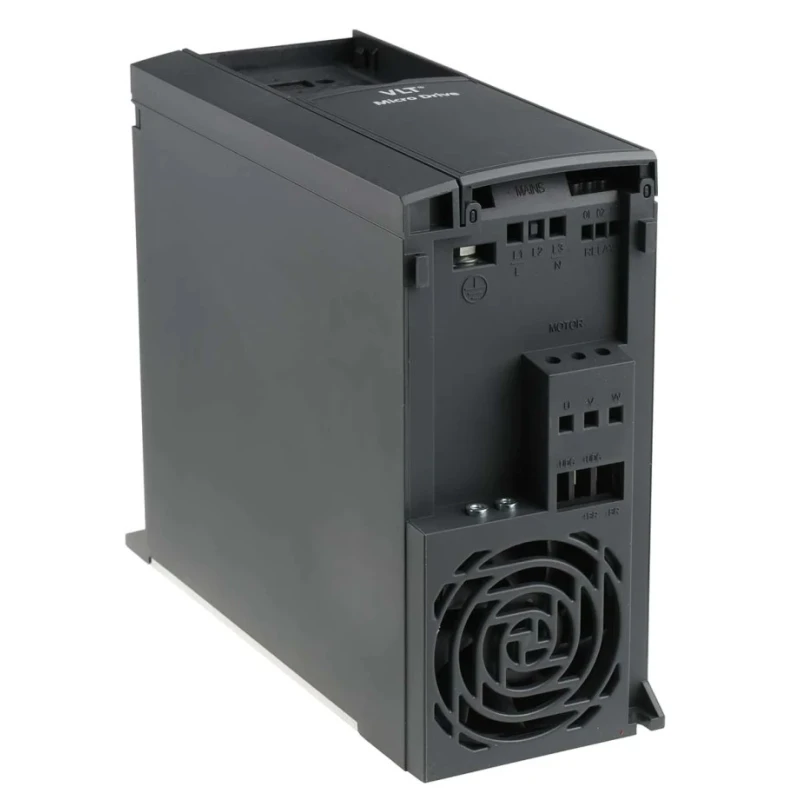

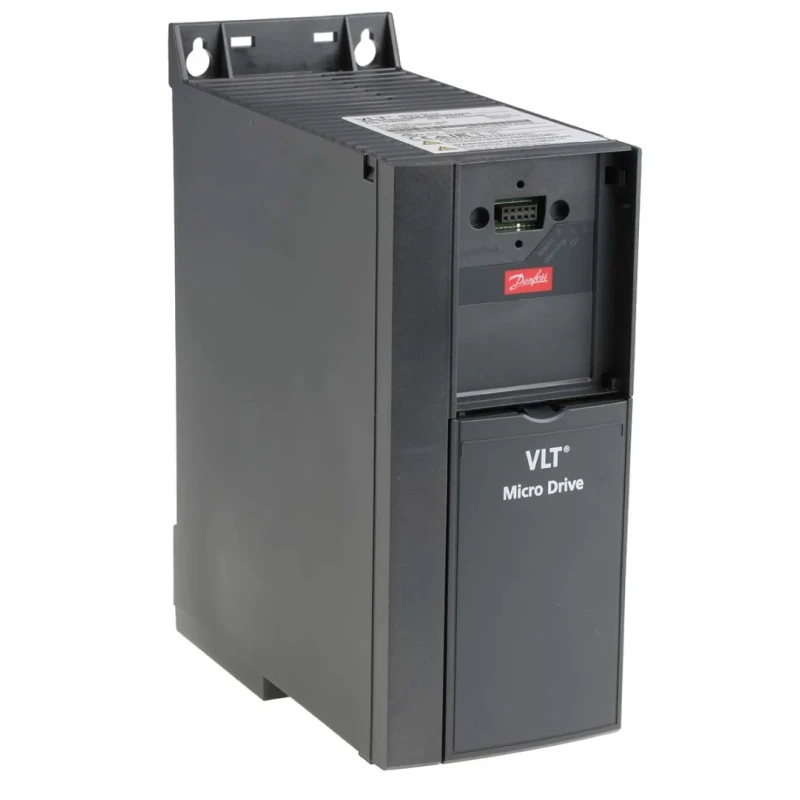

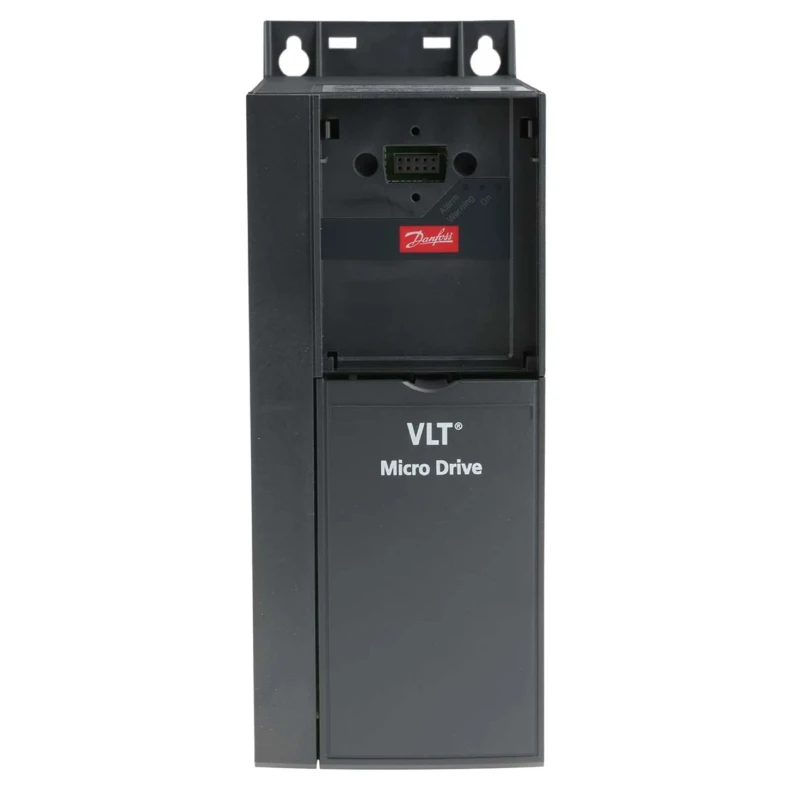

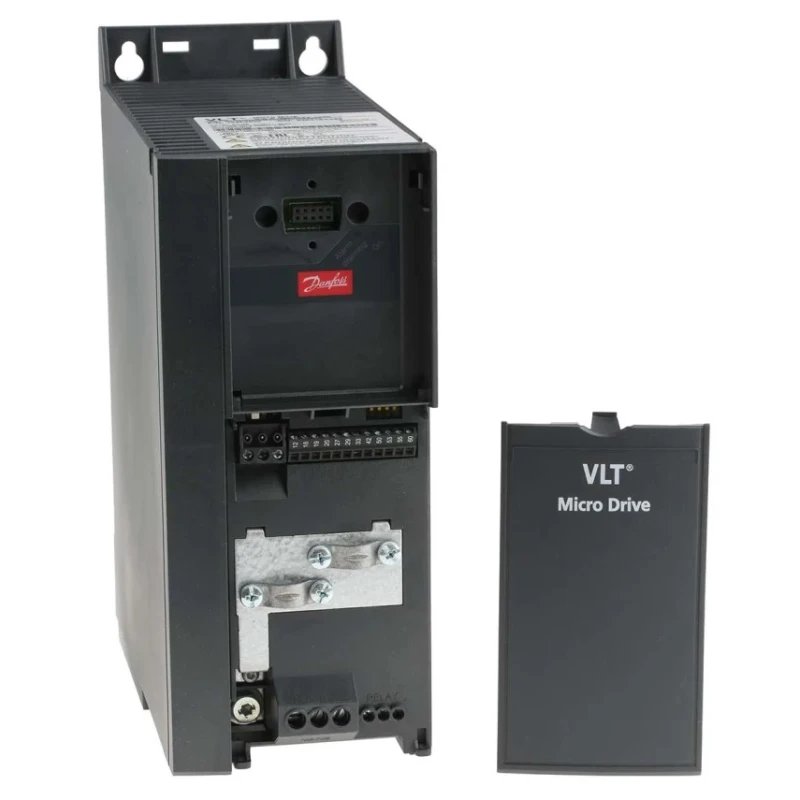

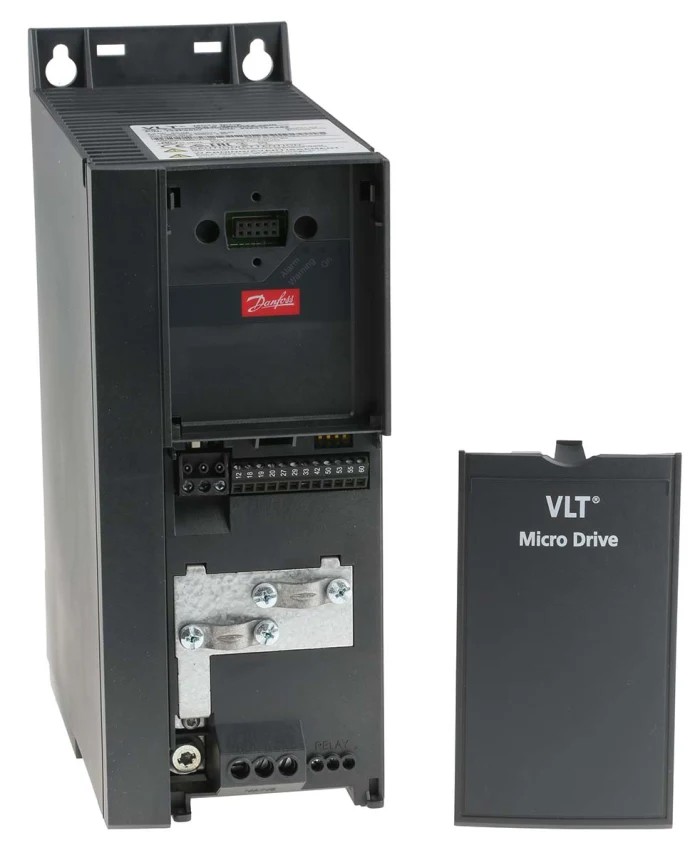

Danfoss VLT FC51 Series Inverter Drive 2.2 kW 1 Phase 230V 9.6 A Variable Speed Panel Mount FC51

Danfoss FC51 Inverter Drive is a 2.2 kW, single phase variable speed drive operating at 230V with a maximum output current of 9.6 A. This compact inverter provides reliable and efficient control for AC motors in various industrial applications.

The VLT FC51 series features a panel mount design with overall dimensions of 90mm length, 239mm width, and 194mm depth, coupled with an IP20 rating making it suitable for installation inside control panels. It supports output frequencies of 200 and 400 Hz, enabling versatile motor speed regulation. The drive integrates advanced control functions such as a Process PI-controller, Automatic Energy Optimizer (AEO), and Automatic Motor Tuning (AMT) that optimize motor operation and energy consumption.

Additional attributes include a built-in electronic thermal relay to protect the motor, brake functions, and an RFI filter to reduce electrical noise. The drive permits side-by-side mounting for space-efficient panel layouts and operates reliably at ambient temperatures up to 50°C.

Certified under ISO 14001 and compliant with RoHS and WEEE directives, this inverter drive supports environmental sustainability. Typical industrial uses are centrifugal pumps, radial and axial fans, compressors, and conveyor systems in automation sectors.

Supports AC motors with variable speed capability. Single phase 230V input with 9.6 A maximum output current. Compact panel mount design with IP20 protection. Process PI-controller, AEO, and AMT for optimized motor control.

Built-in thermal relay and brake functions for motor safety. Operates up to 50°C ambient temperature. Certified ISO 14001 and compliant with RoHS and WEEE standards. Suitable for pumps, fans, compressors, and conveyors. Explore other Danfoss industrial automation products and Inverter Drives at EnvMart for advanced energy-efficient motor control solutions.
