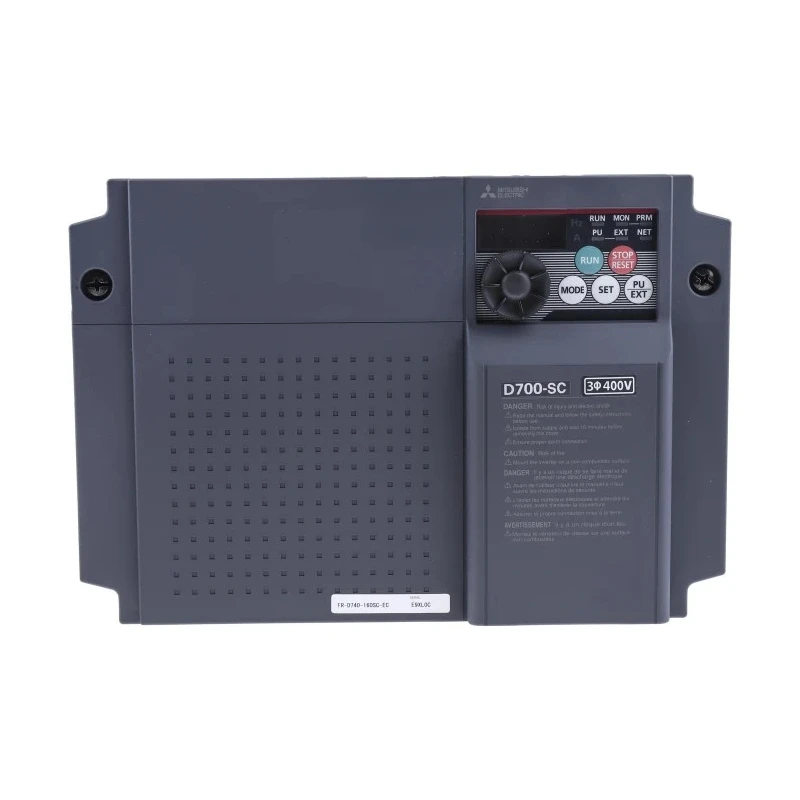

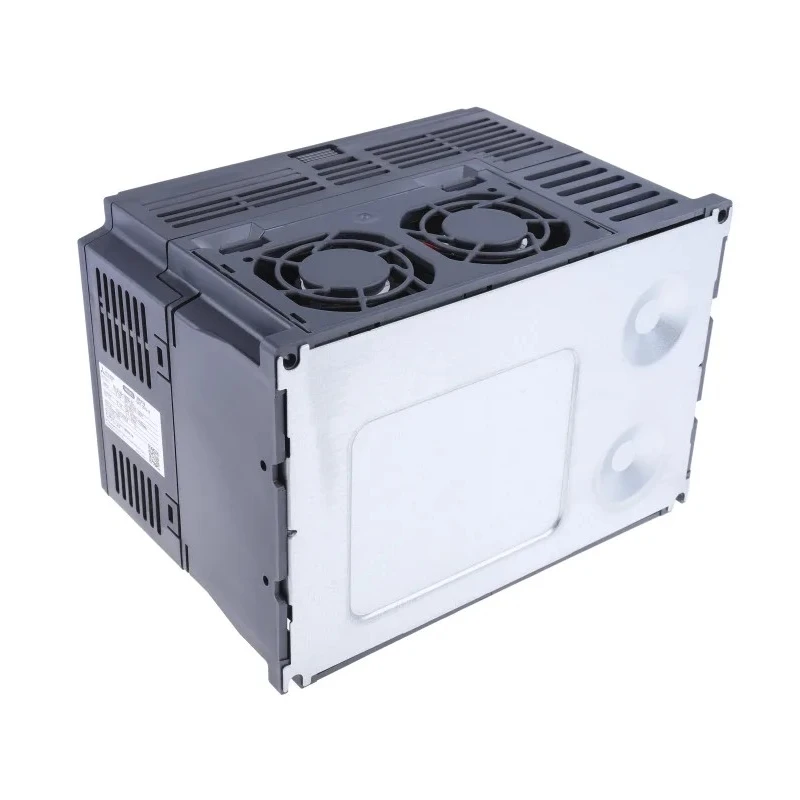

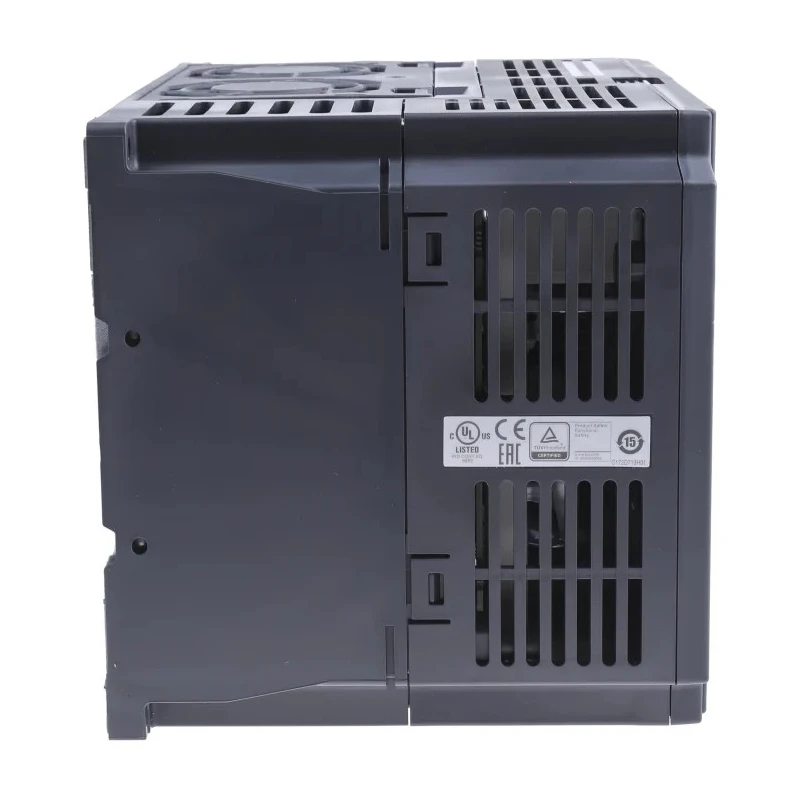

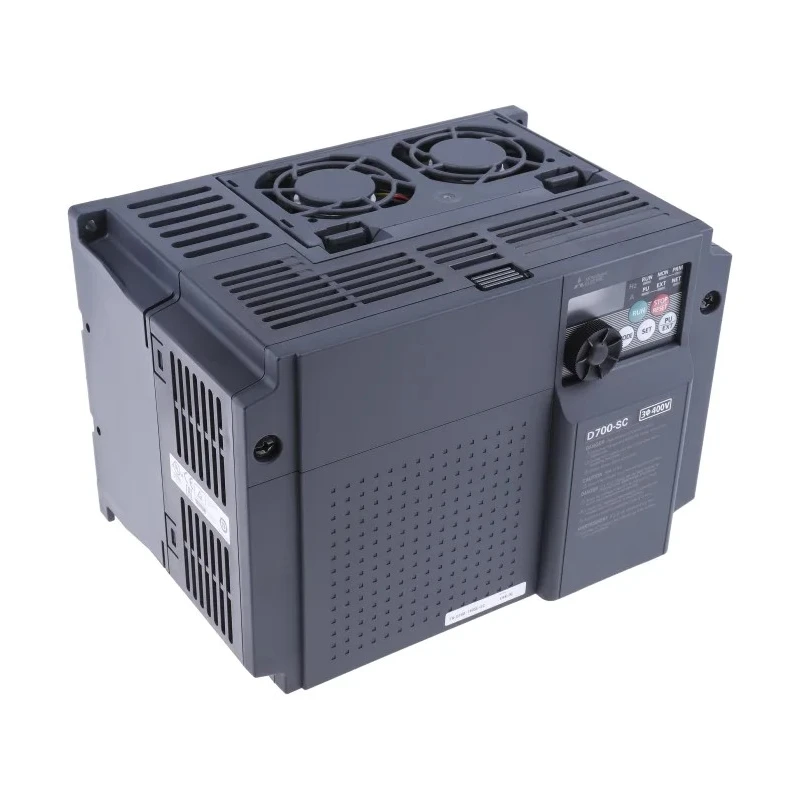

Mitsubishi Electric Inverter Drive 7.5 kW 3 Phase 400V AC Vector Control FR-D740-160SC-EC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FR-D740-160SC-EC |
| IP Rating | IP20 |
| Drive Type | Vector Control, Variable Frequency |
| Mount Type | Wall |
| Overall Length | 150mm |
| Series | FR-D740 |
| Overall Width | 220mm |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 3 |
| Maximum Output Current | 6A |
| Standards/Approvals | GOST, RoHS, EC, EAC, CE, UL/cUL |
| Overall Depth | 155mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor |
Key Features
- Employs vector control and variable frequency drive technology for precise motor operation.
- Supports up to a maximum output current of 6 amperes.
- Wall mount type with robust IP20 protection rating for indoor industrial environments.
- Operates reliably between -10°C and +40°C ambient temperature range.
- Features an integrated digital dial and four-digit LED display for easy parameterization and monitoring.
- Includes emergency stop input compliant with EN 61800-5-2 safety standards.
- Equipped with serial RS485 interface allowing communication with PLC and PC systems.
- Designed for rapid cabling using integrated spring clamps for power and control wiring.
Product Description
Mitsubishi Electric FR-D740-160SC-EC inverter drive is a high-performance variable frequency drive designed to power 7.5 kW three-phase induction motors supplied with 400V AC. It incorporates advanced vector control technology to deliver precise speed and torque performance, suitable for a wide range of industrial automation applications.
This wall mount inverter offers a compact footprint with overall dimensions of 150 mm length, 220 mm width, and 155 mm depth, protected with an IP20 rating for installation in controlled indoor environments. It operates efficiently across a temperature range from -10°C to +40°C, ensuring robustness in diverse operational conditions.
The FR-D740 series emphasizes easy installation and operation featuring integrated spring clamps for simplified cabling and a user-friendly digital dial accompanied by a four-digit LED display for parameter setting and real-time status monitoring. Safety is enhanced with an emergency stop input compliant to EN 61800-5-2 standards and a second transistor output selectable for sink or source logic safety inputs.
Communication capabilities are provided via a standard serial RS485 interface supporting ModBus RTU protocol, allowing seamless integration with PLC and PC environments. The drive includes features such as automatic restart after power failures and a built-in braking resistor connection for improved stopping power.
Typical industrial applications include machining tools, conveyor belts, feeder systems, gates, and door automation, making this inverter a versatile choice for standard to sophisticated motor control tasks. Its user-friendly FR-Configurator software enables easy parameterization and graphical machine analysis for performance optimization.
Employs vector control and variable frequency technology for precise motor control performance. Supports 3-phase 400V AC supply and maximum output current of 6 A. Compact wall mount design with IP20 rating for indoor industrial installation.
Operation temperature range from -10°C to +40°C for reliable use. Includes emergency stop input compliant with EN 61800-5-2 safety standards. Features integrated spring clamps for fast and reliable cabling. Equipped with serial RS485 communication interface supporting ModBus RTU.
Automatic restart capability after power outages for process continuity. Supports connection of an external braking resistor for enhanced stopping power. Ideal for applications like machining tools, conveyors, gates, and feeders.
Explore Mitsubishi Electric Inverter Drives on EnvMart for reliable motor control solutions in industrial, manufacturing, and automation sectors.
