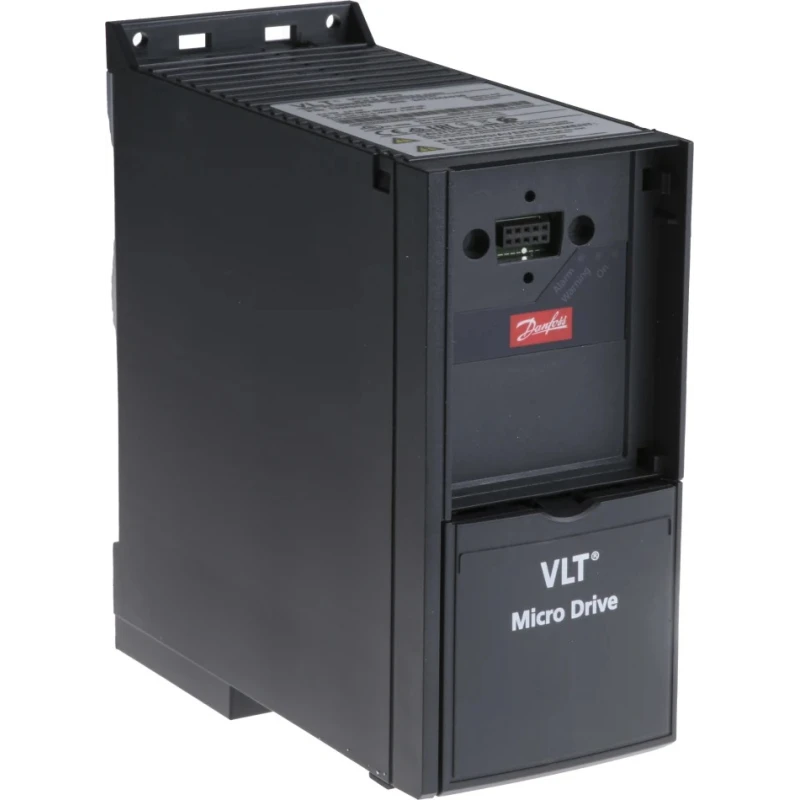

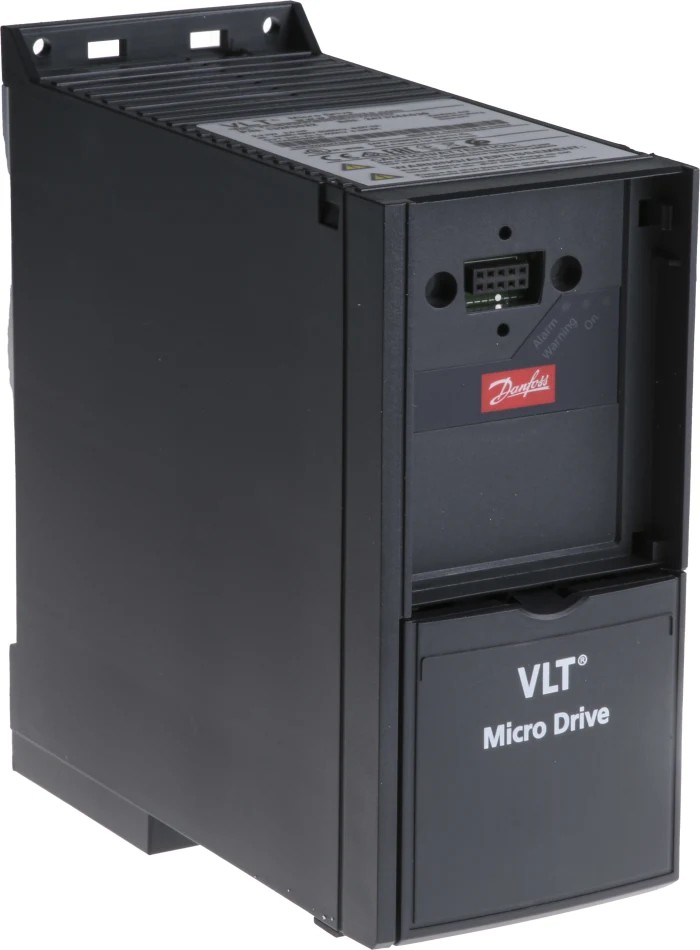

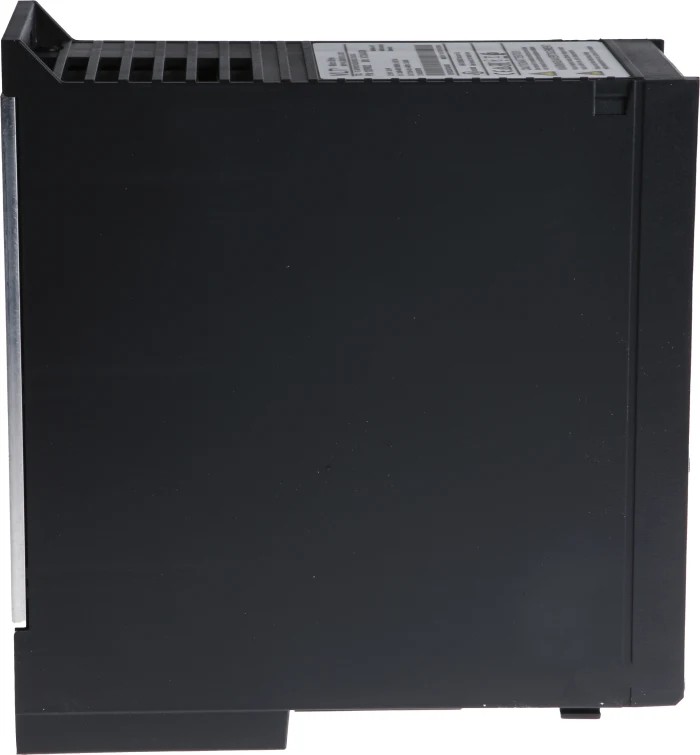

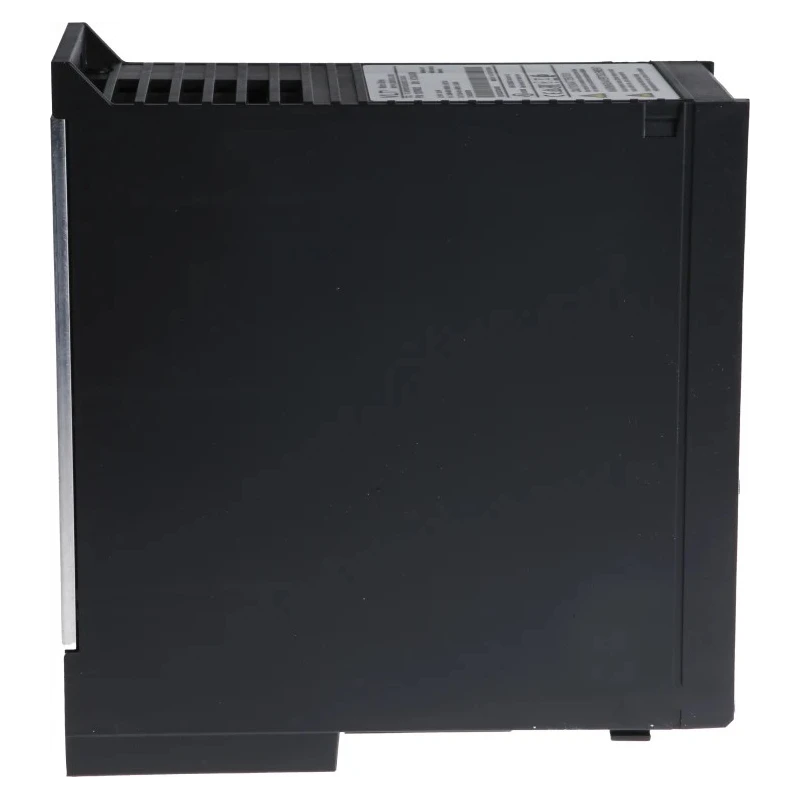

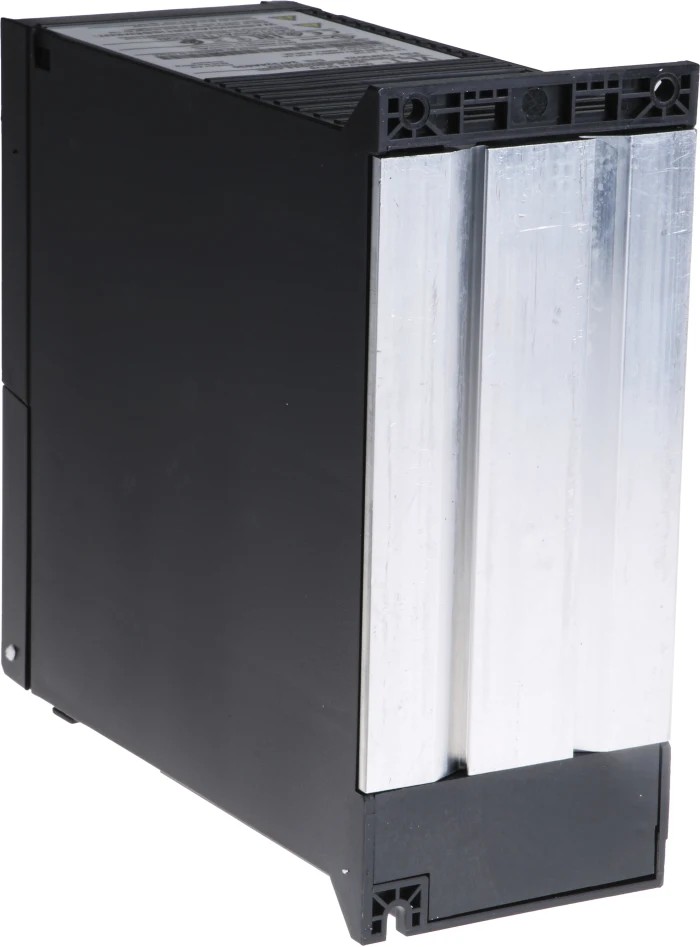

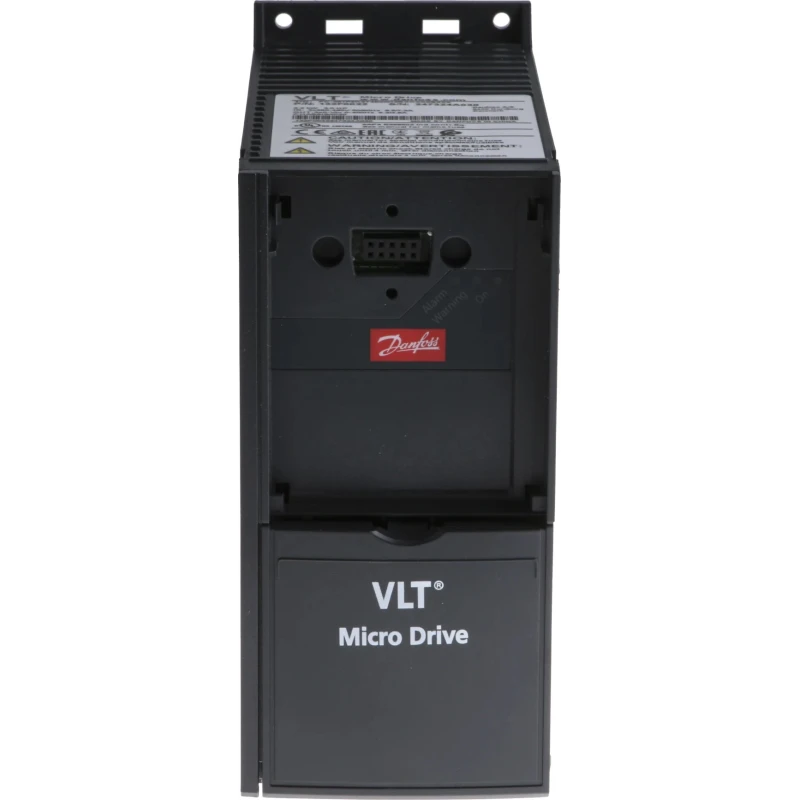

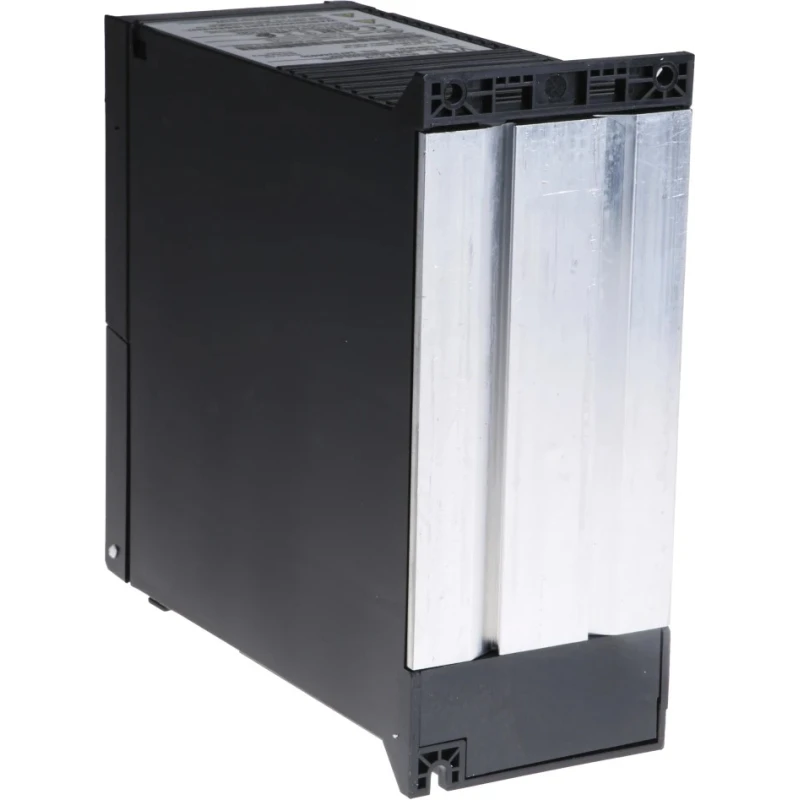

Danfoss VLT FC51 Series Inverter Drive 2.2 kW 3 Phase Variable Speed 400V AC 5.3 A FC51
Specifications
| Country of Origin | China |
|---|---|
| Brand | Danfoss |
| Model | FC51 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Panel Mount |
| Overall Length | 75mm |
| Series | VLT FC51 |
| Overall Width | 176mm |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 200, 400Hz |
| Number of Phases | 3 |
| Maximum Output Current | 5.3A |
| Standards/Approvals | ISO 14001, RoHS, WEEE |
| Overall Depth | 168mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Provides up to 2.2 kW power with a three-phase 400V AC input.
- Maximum output current is 5.3 A ensuring efficient motor control.
- Compact panel mount design with IP20 rating suitable for various industrial environments.
- Equipped with process PI-controller, automatic energy optimizer and motor tuning features.
- Built-in brake functions and RFI filter enhance operational reliability.
- Supports output frequency ranges of 200 and 400 Hz for diverse applications.
- Designed to operate efficiently up to 50°C ambient temperature.
- Suitable for centrifugal pumps, fans, compressors, and conveyor systems.
Product Description
Danfoss FC51 Inverter Drive model 132F0022 offers a 2.2 kW three-phase variable speed solution for AC motor control, powered by a 400V AC supply. This panel-mounted drive is engineered for high reliability and compactness, measuring 176mm width, 168mm depth, and 75mm length, with an IP20 enclosure rating.
It includes advanced functional features such as a process PI-controller, automatic energy optimizer (AEO), and automatic motor tuning (AMT), which optimize motor performance and energy efficiency. The inverter supports an output frequency of 200 and 400 Hz, can deliver up to 150% motor torque for 1 minute, and has built-in brake functions and RFI filtering to ensure stable operation.
The drive's maximum output current is 5.3 A, suitable for a range of industrial applications including centrifugal pumps, radial and axial fans, compressors, and conveyor belts. It is designed to operate reliably in ambient temperatures up to 50°C. The drive is supplied without a control panel, though LCD panels with or without potentiometer are available as options.
This product complies with environmental and energy-saving standards such as ISO 14001, RoHS, and WEEE, aligning with sustainable industrial practices. The country of origin for this drive is China.
Power Rating: 2.2 kW three-phase variable speed control. Input Voltage: 400V AC with IP20 protection. Maximum Output Current: 5.3 A. Compact dimensions for panel mounting. Advanced motor control features: PI-controller, AEO, AMT.
Built-in brake and RFI filter functions. Suitable for multiple industrial applications. Complies with ISO 14001, RoHS, WEEE standards. Explore more Danfoss automation and Inverter Drive solutions on EnvMart for diverse industrial requirements.
