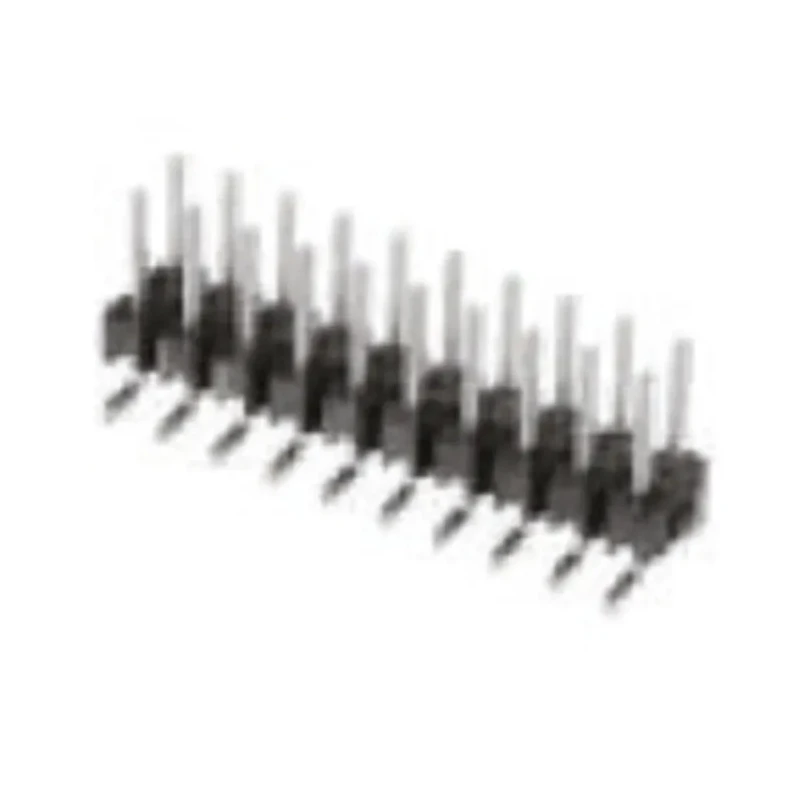

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header 10 Contacts 2.54 mm Pitch 2 Row 826662-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | 826662-5 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- Unshrouded design allows versatile usage and easy installation.
- Constructed from polybutylene terephthalate housing for durability.
- Gold-plated brass contacts ensure corrosion resistance and optimal conductivity.
- Supports a maximum current of 3A and voltage up to 750V.
- Operating temperature range from -65°C to 105°C for industrial reliability.
- Solder termination type with precise right angle mounting orientation.
- Contact tail pin length of 3.2 mm and mating pin length of 5.8 mm.
- Suitable for automotive controls, industrial, telecommunications, medical instruments, and storage equipment.
Product Description
TE Connectivity 826662-5 AMPMODU MOD II Series right angle through hole pin header with 10 male contacts spaced at 2.54 mm pitch on 2 rows offers a robust board-to-board and wire-to-board connector solution.
Constructed with a polybutylene terephthalate housing, this unshrouded pin header features gold-plated brass contacts for excellent electrical performance. It supports a continuous current rating of 3 amperes and withstands voltages up to 750 volts, making it suitable for demanding industrial environments.
The right angle orientation enables compact circuit board layouts and space-efficient designs. The solder termination type ensures secure mechanical and electrical connections to printed circuit boards. The tail pin length of 3.2 mm and mating pin length of 5.8 mm facilitate reliable mating with corresponding connectors.
This header operates efficiently within a temperature range from -65°C to 105°C, suitable for automotive, industrial test equipment, computing, telecommunications, medical instrumentation, storage equipment, and general appliance applications.
The AMPMODU MOD II series connectors are designed for easy breakaway customization allowing users to configure pin counts as needed, optimizing assembly time and labor costs. Unshrouded design allows versatile usage and easy installation.
Constructed from polybutylene terephthalate housing for durability. Gold-plated brass contacts ensure corrosion resistance and optimal conductivity. Supports a maximum current of 3A and voltage up to 750V. Operating temperature range from -65°C to 105°C for industrial reliability.
Solder termination type with precise right angle mounting orientation. Contact tail pin length of 3.2 mm and mating pin length of 5.8 mm. Suitable for automotive controls, industrial, telecommunications, medical, and storage applications.
Easy breakaway design customizable to required pin counts. Part of the economical AMPMODU MOD II interconnect system.
This product belongs to the PCB Headers category, ideal for industrial, laboratory, manufacturing, and electronics assembly applications. EnvMart offers a broad selection of TE Connectivity components engineered for performance and reliability in electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750V.
This model supports a maximum current of 3A.
The contacts in this connector are spaced at a pitch of 2.54 mm.
It operates efficiently within a temperature range from -65°C to 105°C.
This pin header uses a solder termination type.
This model features a total of 10 male contacts.
The housing is made from polybutylene terephthalate, and the contacts are gold-plated brass.
The tail pin length is 3.2 mm.
The mating pin length is 5.8 mm.
This model features a right angle orientation.
It is suitable for automotive controls, industrial, telecommunications, medical instruments, and storage equipment.
Yes, it features an easy breakaway design that allows for customization of pin counts.
