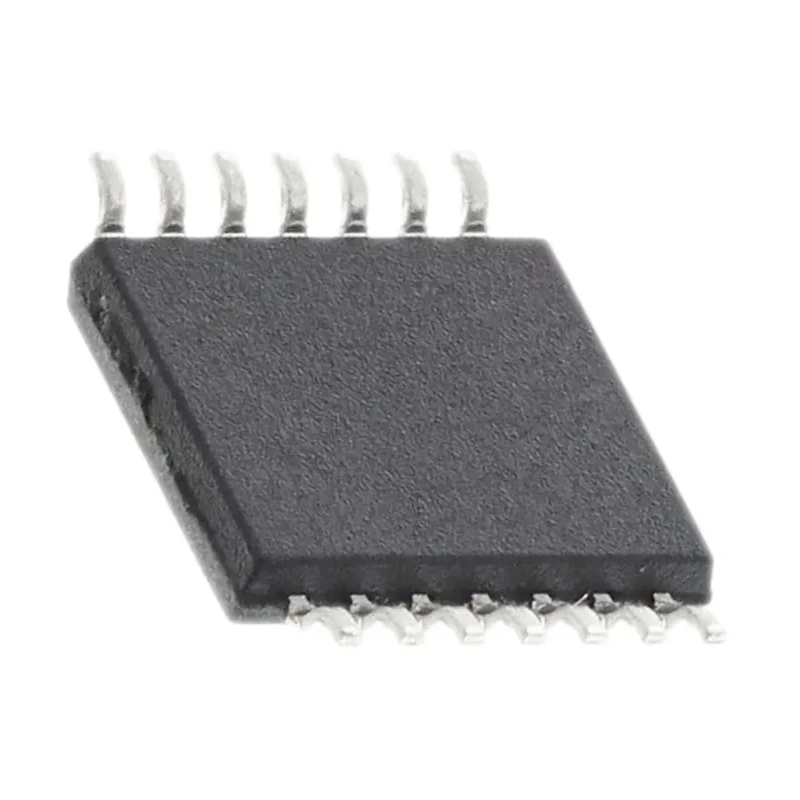

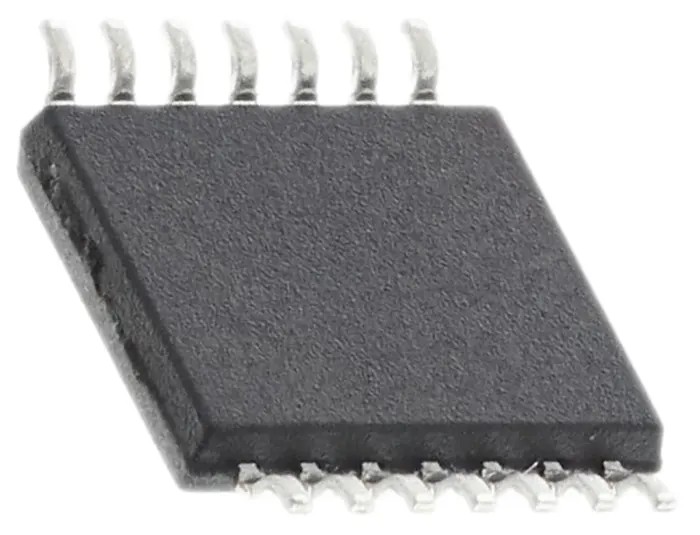

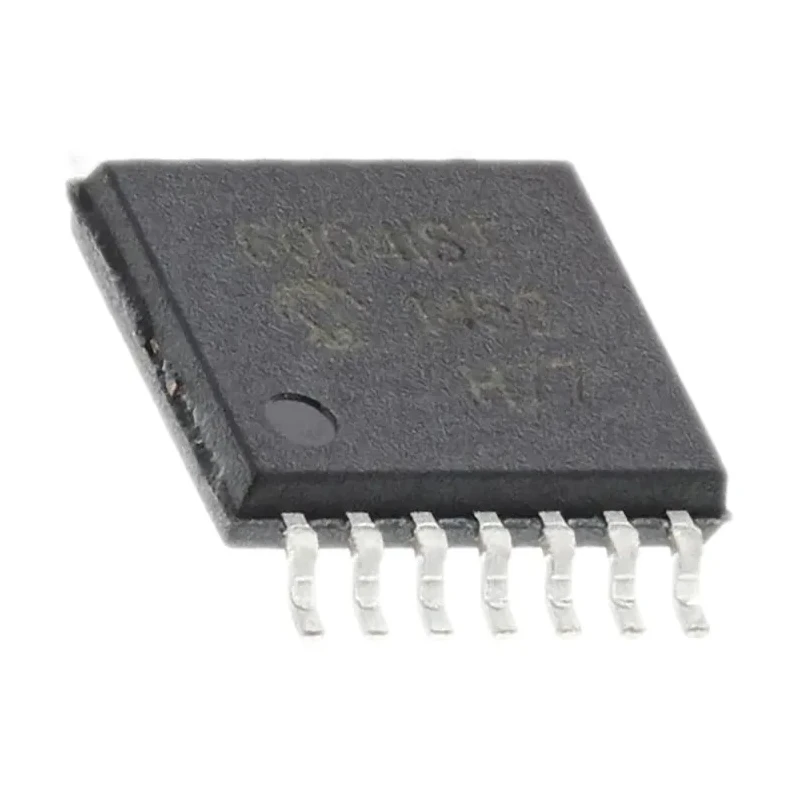

Microchip Operational Amplifier 1 MHz Gain Bandwidth Product 14-Pin TSSOP Surface Mount MCP6004-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.9mm |
| Length | 5mm |
| Model | MCP6004-I/ST |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | MCP6004 |
| Output Current | 23mA |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 19 pA |
| Vos - Input Offset Voltage | 4.5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 1 pA |
| MCP6004-E/ST Microchip, Operational Amplifier, 1 MHz, 14-Pin 6V TSSOPBrand | Microchip |
Key Features
- Includes 4 amplifier channels in a single package for multiplexed signal processing.
- Supports minimum and maximum supply voltages of 3V and 6V respectively.
- Features ultra-low input bias current of 19 pA ensuring minimal input leakage.
- Operating temperature range from -40°C to 85°C suits diverse environments.
- Compact dimensions include 5 mm length, 4.4 mm width, and 0.9 mm height for efficient PCB layout.
- Low input offset voltage of 4.5 mV enhances signal accuracy.
- Slew rate of 0.6 V/μs accommodates moderate speed signal changes.
- Output current capability up to 23 mA for driving loads effectively.
Product Description
The Microchip MCP6004-I/ST is a new, surface mount operational amplifier tailored to electronic applications requiring precise, low voltage signal amplification. This 14-pin TSSOP package amplifier integrates four independent channels, making it ideal for multiplexed signal processing in compact or portable devices.
With a gain bandwidth product of 1 MHz, it supports signals with moderate frequency while maintaining signal integrity. The amplifier operates from a minimum voltage of 3V up to a maximum of 6V, enabling usage in battery-powered or low-voltage systems.
Designed for reliability, the MCP6004-I/ST can function over a wide temperature range from -40°C to 85°C, suitable for industrial, laboratory, and commercial electronic environments. Its ultra-low input bias current of 19 pA and input offset voltage of 4.5 mV ensure high precision in signal amplification with minimal distortion or offset.
The compact form factor, with dimensions of 5 mm length, 4.4 mm width, and 0.9 mm height, allows for space-saving PCB designs. The amplifier’s slew rate of 0.6 V/μs supports effective handling of dynamic signal changes in sensor interfacing and signal conditioning applications. An output current capacity of 23 mA facilitates direct driving of moderate loads.
Being RoHS compliant, this operational amplifier meets environmental standards making it suitable for globally regulated manufacturing processes. Typical use cases include instrumentation amplification, sensor signal conditioning, data acquisition systems, and general analog circuitry in industrial, scientific, and consumer electronics.
Includes 4 amplifier channels in a single package for multiplexed signal processing. Supports minimum and maximum supply voltages of 3V and 6V respectively. Features ultra-low input bias current of 19 pA ensuring minimal input leakage.
Operating temperature range from -40°C to 85°C suits diverse environments. Compact dimensions include 5 mm length, 4.4 mm width, and 0.9 mm height for efficient PCB layout. Low input offset voltage of 4.5 mV enhances signal accuracy.
Slew rate of 0.6 V/μs accommodates moderate speed signal changes. Output current capability up to 23 mA for driving loads effectively. RoHS compliant ensuring environmental safety and regulatory compliance.
This Microchip MCP6004-I/ST operational amplifier is a robust, versatile device suitable for use in electronics manufacturing, laboratory instrumentation, HVAC control systems, automation equipment, and embedded systems design. Browse EnvMart’s selection of semiconductor Operational Amplifiers to find complementary products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6004-I/ST has a gain bandwidth product of 1 MHz, making it suitable for moderate frequency signal amplification.
This model operates within a temperature range of -40°C to 85°C, allowing it to function in various environments.
It can deliver an output current of up to 23 mA, which is effective for driving moderate loads.
The dimensions of this operational amplifier are 5 mm in length, 4.4 mm in width, and 0.9 mm in height.
This operational amplifier supports a minimum supply voltage of 3V and a maximum supply voltage of 6V.
The MCP6004-I/ST includes four independent amplifier channels in a single package.
It features an ultra-low input bias current of 19 pA, ensuring minimal input leakage.
The slew rate of this operational amplifier is 0.6 V/μs, accommodating moderate speed signal changes.
It has a low input offset voltage of 4.5 mV, which enhances signal accuracy during amplification.
Yes, this operational amplifier is RoHS compliant, meeting environmental safety and regulatory standards.
This model is packaged in a 14-pin TSSOP format, suitable for surface mounting.
It is suitable for applications such as instrumentation amplification, sensor signal conditioning, and general analog circuitry.
