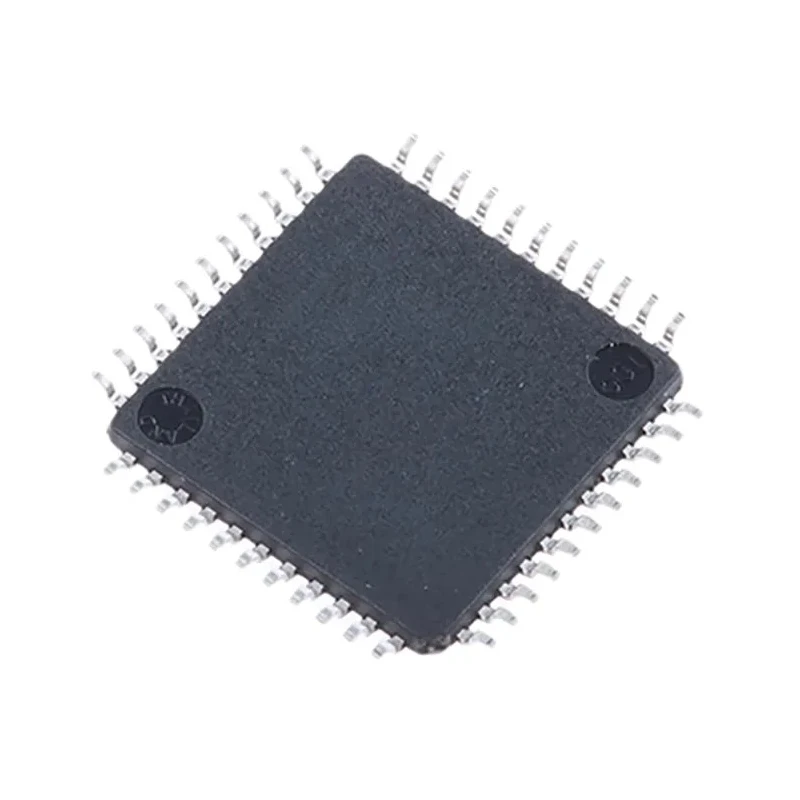

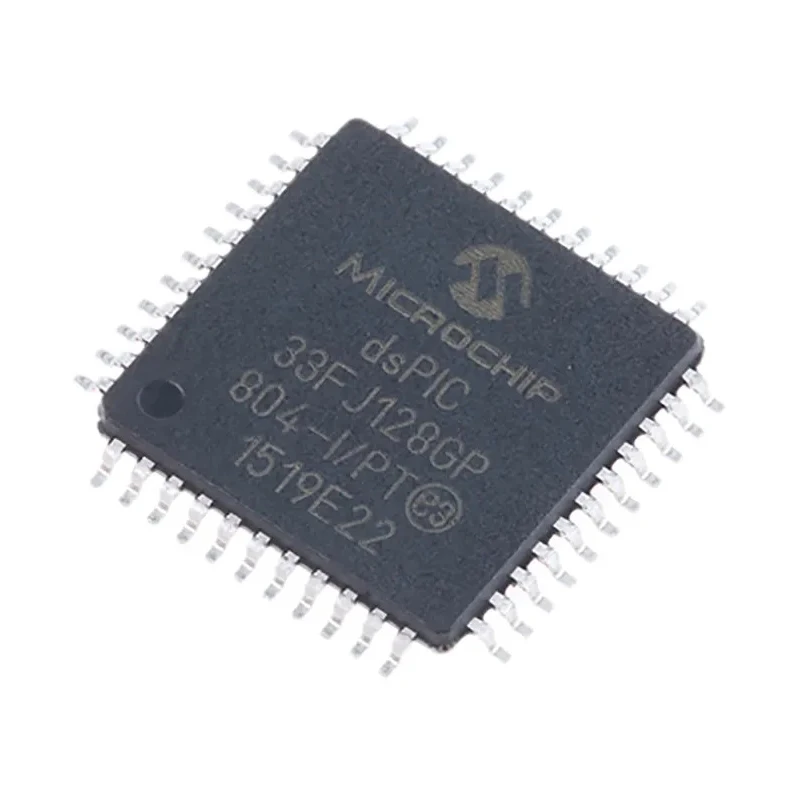

Microchip dsPIC33FJ128GP804-I/PT 16 bit Digital Signal Processor 40 MHz 128kB FLASH 44-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 10mm |
| Model | dsPIC33FJ128GP804-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | dsPIC33FJ |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | VDE Certified, Class B Safety Library, IEC 60730, AEC-Q100 REVG (Grade 0 -40ºC to +150ºC) |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| Number of PWM Channels | 4 |
| Microchip, 16 bit Digital Signal Processor 40 MHz 64kB FLASH 44-Pin TQFPBrand | Microchip |
Key Features
- Operates with a 40 MHz maximum clock frequency providing up to 40 MIPS processing speed.
- Equipped with 16-bit data bus and 16 kB RAM for efficient data handling.
- Features a 44-Pin TQFP surface mount package for compact PCB integration.
- Includes 1 ADC, 4 PWM channels, 1 PWM unit, and 5 timers for versatile control applications.
- Supports RISC instruction architecture with a 12-bit ADC resolution for precision signal processing.
- Designed for operation from -40°C to +85°C ambient temperature ensuring reliability.
- Meets automotive-grade AEC-Q100 Rev G Grade 0 standard for high-quality industrial use.
Product Description
Microchip dsPIC33FJ128GP804-I/PT is a high-performance 16-bit digital signal processor featuring a maximum clock frequency of 40 MHz and 128kB of FLASH program memory. This device suits a broad range of applications requiring robust digital signal processing capabilities combined with microcontroller ease of use.
The dsPIC33FJ128GP804-I/PT offers a powerful 40 MIPS processing speed supported by a 16-bit data bus and 16 kB RAM, enhancing efficiency in executing complex algorithms. The TQFP 44-pin surface mount package enables integration into space-constrained electronic designs with reliable mounting.
This processor includes essential peripherals such as a 12-bit ADC, multiple PWM channels and timers, which are ideal for motor control, signal conditioning, and other embedded control systems. The device operates over a wide temperature range from -40°C to +85°C, making it suitable for industrial and automotive applications.
Certified to automotive standards including AEC-Q100 Rev G Grade 0 and compliant with safety libraries and IEC 60730, this dsPIC33F processor guarantees durability, safety, and long-term reliability in critical environments.
High speed 16-bit MCU and DSP capabilities at 40 MHz clock and 40 MIPS throughput. Integrated 128kB FLASH memory with 16kB RAM for program and data storage. Advanced peripherals including 1 ADC, 4 PWM channels, 5 timers, and 12-bit ADC resolution.
Surface mount TQFP 44-pin package enables compact circuit board layouts. Wide operating temperature range and automotive standard compliance. Ideal for motor control, digital audio, and speech processing applications.
This Microchip digital signal processor is suited for industrial, automotive, and embedded system manufacturers seeking high efficiency and reliable operation under demanding conditions. Explore more products in the Semiconductor Digital Signal Processor category at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MHz, providing up to 40 MIPS processing speed.
It features a program memory size of 128 kB, allowing for substantial data storage and complex algorithm execution.
This unit operates within a temperature range of -40°C to +85°C, making it suitable for various industrial and automotive applications.
The dsPIC33FJ128GP804-I/PT includes 4 PWM channels, which are useful for motor control and other applications requiring pulse-width modulation.
It is packaged in a 44-Pin TQFP (Thin Quad Flat Package), suitable for compact PCB integration.
The processor features a 12-bit ADC resolution, which allows for precise signal processing.
The minimum supply voltage is 3.3V, while the maximum supply voltage is 3.6V.
This model includes 5 timers, which can be used for various timing and control applications.
The dimensions of this unit are 1 mm in height and 10 mm in width.
It meets the AEC-Q100 Rev G Grade 0 standard, ensuring it is suitable for automotive applications.
This processor uses a RISC (Reduced Instruction Set Computer) instruction set architecture, optimizing its performance for digital signal processing tasks.
The country of origin for this model is India.
