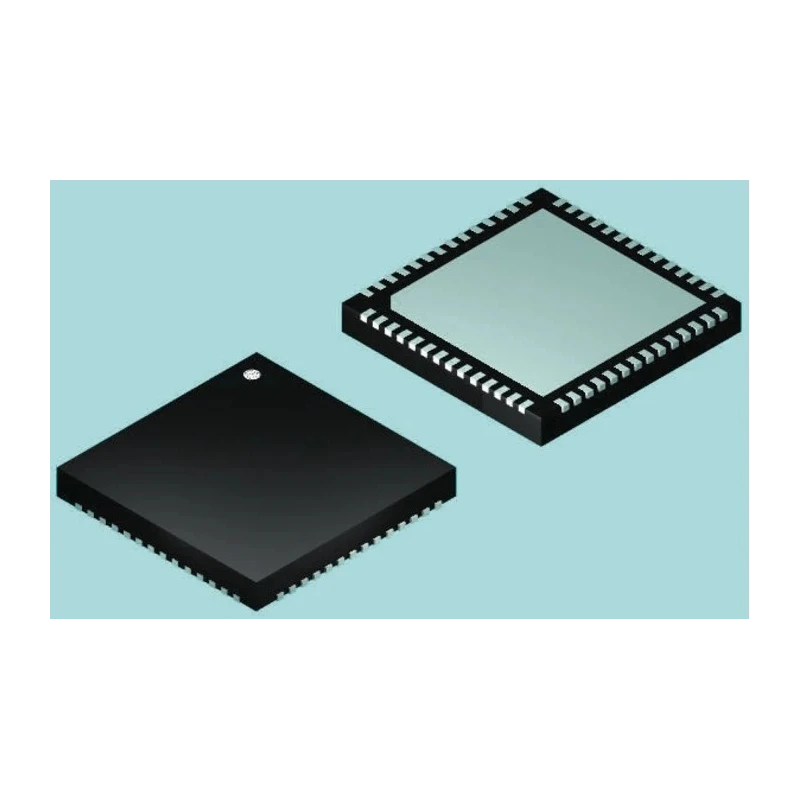

Microchip 16 bit Digital Signal Processor 40 MHz 128kB FLASH 44-Pin QFN dsPIC33FJ128GP804-I/ML

Microchip dsPIC33FJ128GP804-I/ML is a 16 bit Digital Signal Processor featuring a maximum clock frequency of 40 MHz and 128kB FLASH program memory in a 44-Pin QFN package. This model offers robust DSP capabilities with 40 MIPS performance, a 16 kB RAM, and a 16 bit data bus width, making it well-suited for advanced digital filtering, audio processing, and precision digital control systems.

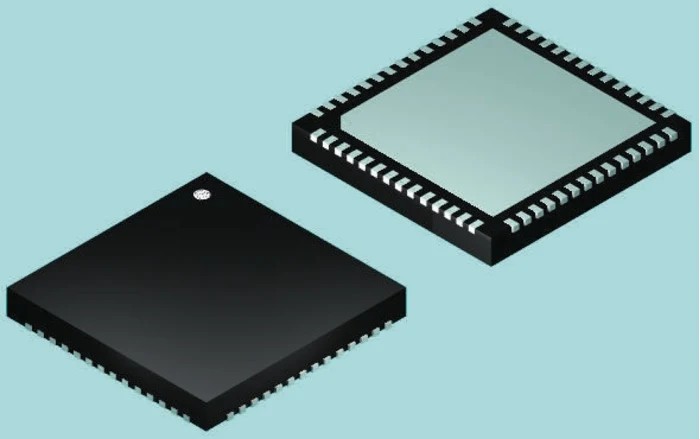

Designed with a surface mount package type (QFN) and a compact form factor of 8 mm width, 8 mm length, and 880 μm height, it is optimal for space-constrained industrial and automotive applications. The device supports a wide operating temperature range from -40°C to +85°C and complies with the automotive standard AEC-Q100, ensuring durability and reliability in harsh environments.

With 5 internal timers and analog features including 13 ADC channels at 12-bit resolution, this DSP allows precise sensor interfacing and real-time control. Featuring a RISC architecture and FLASH program memory, it simplifies development and enables high-speed execution of digital signal processing algorithms. The robust design supports applications in motor control, digital power supply regulation, and speech or audio processing.

Operates at a maximum clock frequency of 40 MHz delivering efficient processing performance. Provides 40 MIPS for executing complex DSP algorithms. Includes 16 kB RAM and 128 kB FLASH memory for versatile program storage.

5 internal timers allow flexible timing control for embedded applications. Supports 13 ADC channels with 12-bit resolution for accurate signal conversion. Compact QFN package (44 pins) suitable for automated PCB assembly.

Temperature range of -40°C to 85°C meets industrial and automotive requirements. Certified to the AEC-Q100 automotive standard for high reliability. 16-bit data bus width with RISC instruction set for efficient processing.

Ideal for motor control, digital audio processing, and power management systems.

This Digital Signal Processor from Microchip is engineered for industrial, automotive, and commercial embedded system applications, offering high performance and integration for advanced digital control and signal processing tasks. Explore more Microchip Digital Signal Processors in our Electronics & Electricals category at EnvMart for various performance needs.
