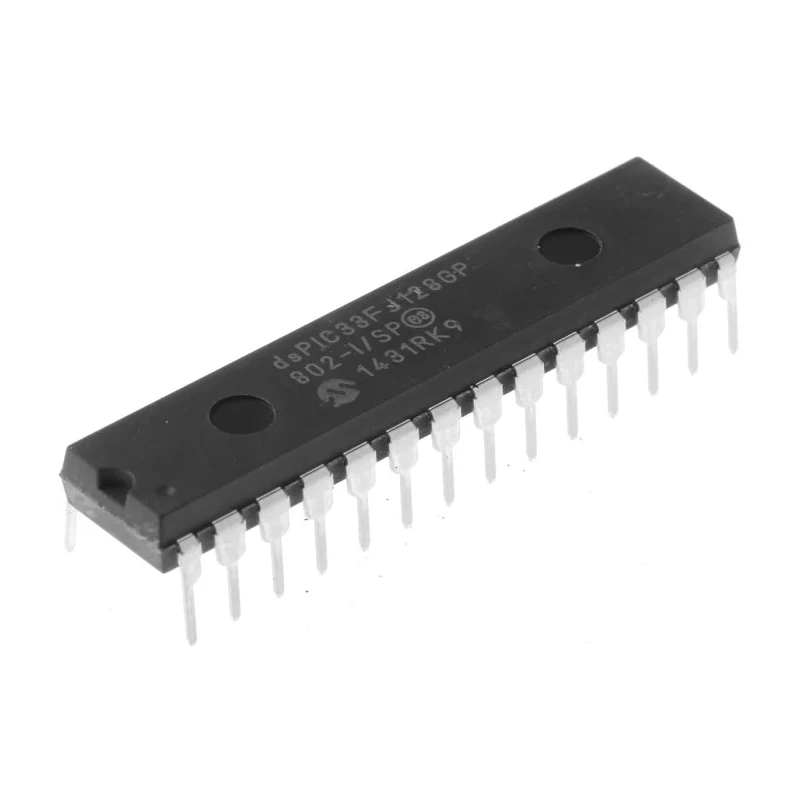

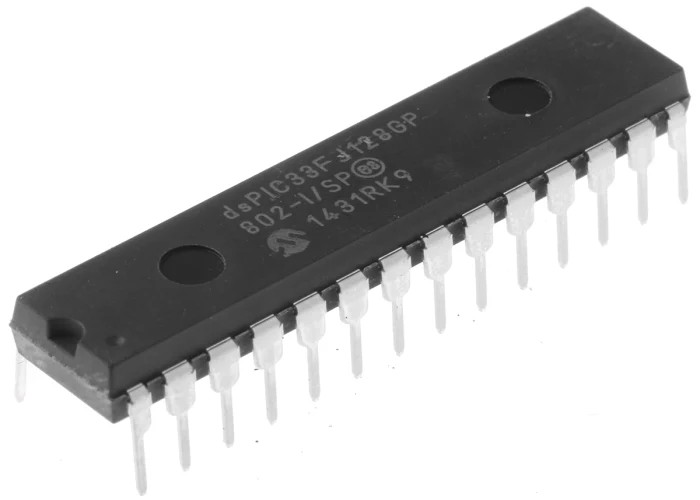

Microchip 16 bit Digital Signal Processor 40 MHz 128kB FLASH 28-Pin SPDIP dsPIC33FJ128GP802-I/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 34.67mm |
| Model | dsPIC33FJ128GP802-I/SP |
| Width | 7.24mm |
| Mount Type | Through Hole |
| Core | dsPIC33F |
| Series | dsPIC33FJ |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | VDE, AEC-Q100, IEC 60730 |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| Number of PWM Channels | 4 |
Key Features
- Operates at a maximum clock frequency of 40 MHz for efficient processing.
- Built with 16kB RAM and 128kB FLASH program memory for robust program execution.
- Features 1 ADC and 4 PWM channels enhancing analog and motor control capabilities.
- Packaged in a 28-Pin SPDIP through-hole mount, simplifying prototyping and integration.
- Designed with a RISC architecture core for optimized instruction execution.
- Supports operating voltages from 3.3V to 3.6V ensuring stable power supply handling.
- Includes 12-bit ADC resolution and 32-bit timer resolution for precise measurement and timing functions.
- Meets automotive standard AEC-Q100 Rev G Grade 0, suitable for automotive and industrial use.
Product Description
Microchip dsPIC33FJ128GP802-I/SP is a 16 bit digital signal processor designed to deliver high processing power of 40 MIPS with a maximum clock frequency of 40 MHz. This device incorporates 128kB FLASH program memory along with 16kB RAM, making it ideal for complex embedded applications requiring digital signal processing and control.
Featuring a single dsPIC33F core with a RISC architecture, this processor efficiently executes digital filter algorithms, high-speed precision control loops, and audio or speech processing tasks. The integrated peripherals such as 1 ADC channel and 4 PWM outputs enable precise analog input sampling and motor control functions.
This model is packaged in a 28-Pin SPDIP form factor with through hole mounting, which is advantageous for prototyping and easy replacement. It operates within a voltage range of 3.3 to 3.6 volts and supports operating temperature ranges from -40°C up to 85°C, meeting the rigorous AEC-Q100 Rev G Grade 0 automotive standard. The 12-bit ADC resolution and 32-bit timer resolution provide fine granularity and timing accuracy required in industrial and automotive control systems.
Its compact physical dimensions, namely 34.67mm length, 7.24mm width, and 3.3mm height, allow integration into space-constrained embedded solutions. This digital signal processor is suited for applications in industrial automation, automotive electronics, digital power supplies, and advanced motor control systems where precision and reliability are critical.
Operates at 40 MHz maximum clock frequency delivering 40 MIPS performance. 128kB FLASH memory and 16kB RAM for extensive program and data storage. One 12-bit ADC channel and four PWM channels for versatile peripheral control.
Robust RISC architecture core optimized for DSP and control applications. Compliant with VDE, AEC-Q100, and IEC 60730 standards ensuring quality and reliability. Automotive grade device suitable for harsh environments. Compact 28-pin SPDIP package for easy through-hole mounting and prototyping.
Wide operating temperature and voltage range for industrial usage.
This Microchip dsPIC33FJ128GP802-I/SP digital signal processor is an ideal choice for developers needing a powerful, versatile, and reliable component for embedded motor control, digital power, and signal processing applications. Browse more Digital Signal Processors from Microchip on EnvMart for your next design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MHz, allowing for efficient processing at 40 MIPS.
It features a program memory size of 128kB FLASH, suitable for complex embedded applications.
This unit supports four PWM channels, which enhance its motor control capabilities.
The model includes a 12-bit ADC resolution for precise analog input sampling.
The physical dimensions are 34.67mm in length, 7.24mm in width, and 3.3mm in height.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
This model is packaged in a 28-Pin SPDIP format and is designed for through-hole mounting.
The minimum supply voltage is 3.3V and the maximum supply voltage is 3.6V.
It meets the AEC-Q100 Rev G Grade 0 automotive standard, ensuring reliability for automotive applications.
The device features a 32-bit timer resolution for accurate timing functions.
This digital signal processor has a single core configuration.
It complies with VDE, AEC-Q100, and IEC 60730 standards, ensuring quality and reliability.
