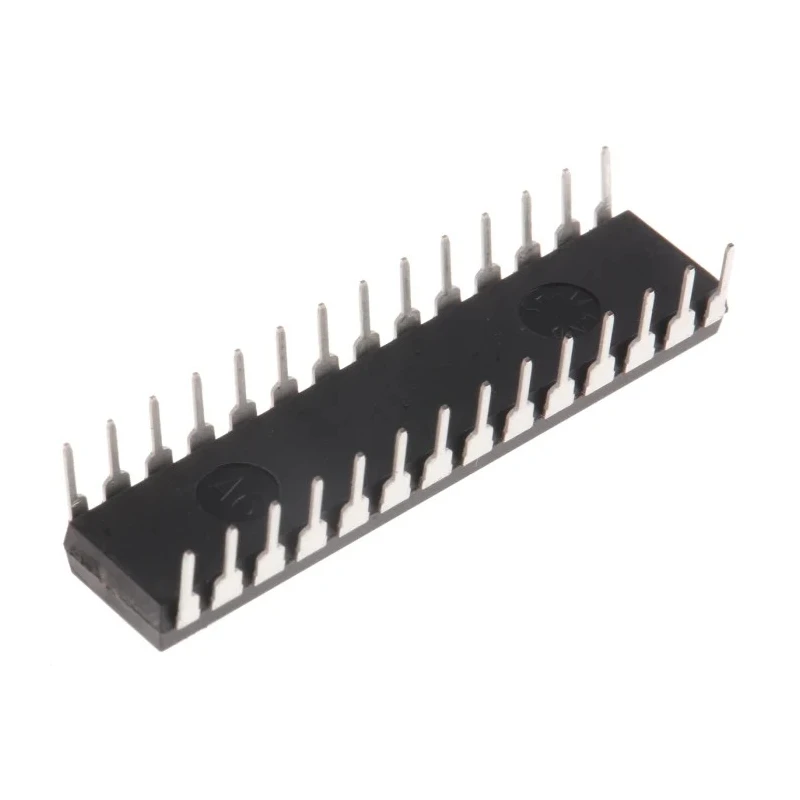

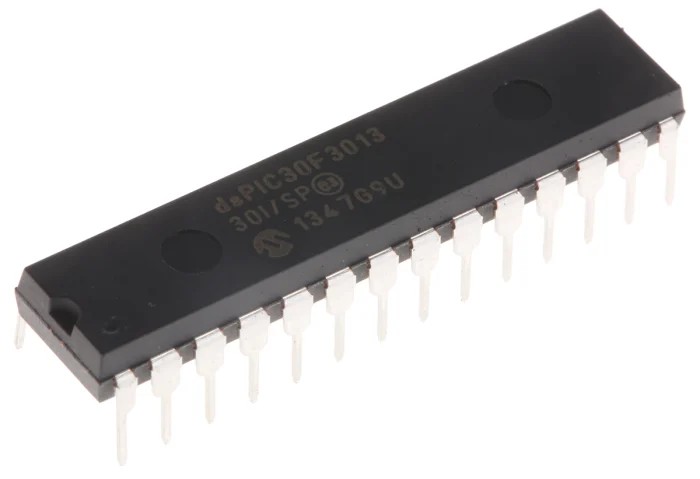

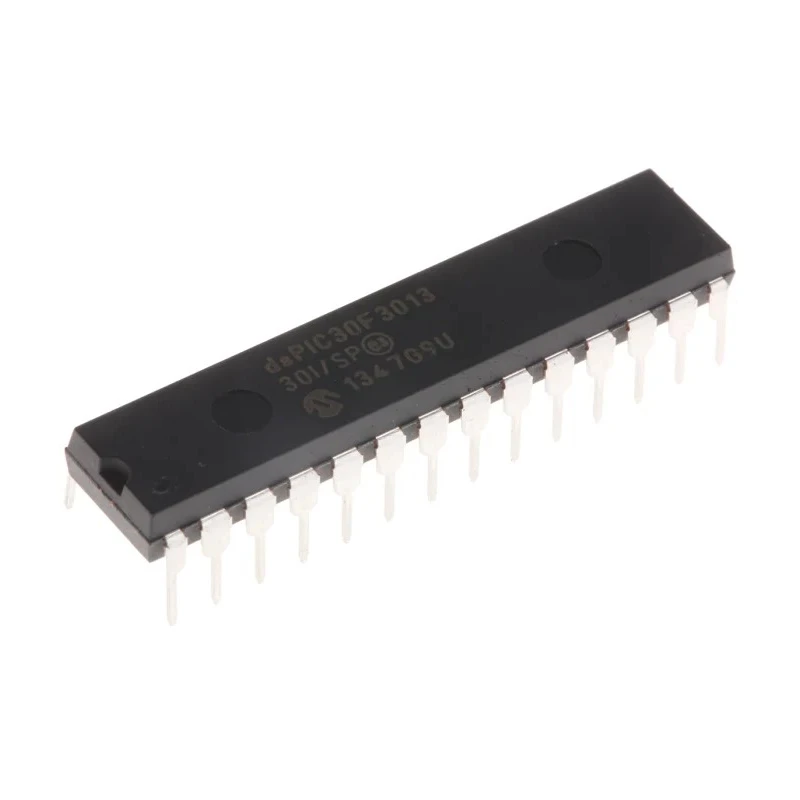

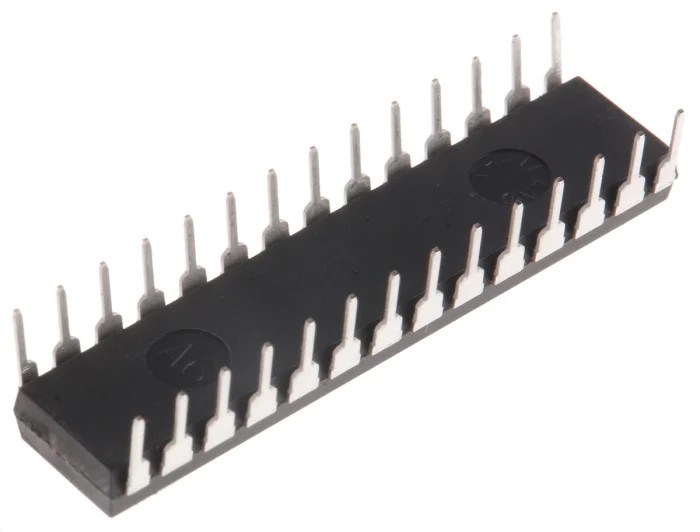

Microchip dsPIC30F 16 bit Digital Signal Processor 30 MIPS 24kB FLASH 28-Pin SPDIP dsPIC30F3013-30I/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | dsPIC30F3013-30I/SP |
| Width | 7.38mm |
| Mount Type | Through Hole |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 24kB |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 2 |
| PWM Resolution | 16bit |
| ADC Channels | 10 |
Key Features
- Features a RISC instruction set architecture for efficient processing.
- Operates in a wide supply voltage range from 2.5V to 5.5V.
- Includes 2kB RAM and 24kB FLASH program memory for code storage.
- Capable of 30 Million Instructions Per Second (MIPS) processing speed.
- Equipped with 1 ADC featuring 12-bit resolution and 10 channels.
- Contains 3 timers with 16-bit resolution and 2 PWM units of 16-bit resolution.
- Packaged as a 28-pin SPDIP for through hole mounting.
- Operating temperature range from -40°C to +85°C suitable for robust applications.
Product Description
Microchip dsPIC30F3013-30I/SP is a high-performance 16 bit Digital Signal Processor designed for advanced embedded applications. It operates with a 30 MIPS (Million Instructions Per Second) throughput and features 24kB of FLASH program memory, making it suitable for complex processing tasks.
Built on a RISC instruction set architecture, this processor offers efficient code execution for various industrial, automotive, and consumer electronics applications. It operates over a wide voltage range from 2.5V to 5.5V, supporting flexible power sources and low standby current requirements.
The device integrates 2kB of RAM and a comprehensive set of peripherals including a 12-bit resolution ADC with 10 channels that facilitates precise sensing and measurement. It also includes three 16-bit timers and two 16-bit PWM units, delivering fine control capabilities.
The dsPIC30F3013-30I/SP comes in a 28-pin SPDIP package designed for through-hole mounting. This packaging is ideal for prototyping and applications requiring robust mechanical connections. Its temperature rating from -40°C to 85°C supports use in rigorous environments.
This device is highly applicable to digital power converters, motor control systems, audio and speech processing, and smart sensing in industrial and laboratory equipment. The integrated peripherals and compact size allow for efficient system designs.
Physical dimensions are 35.56mm length, 7.38mm width, and 3.81mm height, supporting space-constrained PCB layouts. Features a RISC instruction set architecture for efficient processing. Operates in a wide supply voltage range from 2.5V to 5.5V.
Includes 2kB RAM and 24kB FLASH program memory for code storage. Capable of 30 Million Instructions Per Second (MIPS) processing speed. Equipped with 1 ADC featuring 12-bit resolution and 10 channels. Contains 3 timers with 16-bit resolution and 2 PWM units of 16-bit resolution.
Packaged as a 28-pin SPDIP for through hole mounting. Operating temperature range from -40°C to +85°C suitable for robust applications. Compact physical dimensions with height 3.81mm, length 35.56mm, and width 7.38mm. Explore the range of Microchip Digital Signal Processors available on EnvMart to find the appropriate model for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is capable of processing at a speed of 30 Million Instructions Per Second (MIPS).
It operates within a supply voltage range of 2.5V to 5.5V.
This unit includes 24kB of FLASH program memory for code storage.
The integrated ADC features a resolution of 12 bits and has 10 channels.
It contains three 16-bit timers and two 16-bit PWM units.
The dimensions are 35.56mm in length, 7.38mm in width, and 3.81mm in height.
It can operate in temperatures ranging from -40°C to 85°C.
This model is packaged as a 28-pin SPDIP for through-hole mounting.
It features a RISC instruction set architecture for efficient processing.
This model includes 2kB of RAM.
It is applicable for digital power converters, motor control systems, audio and speech processing, and smart sensing in industrial and laboratory equipment.
The country of origin is India.
