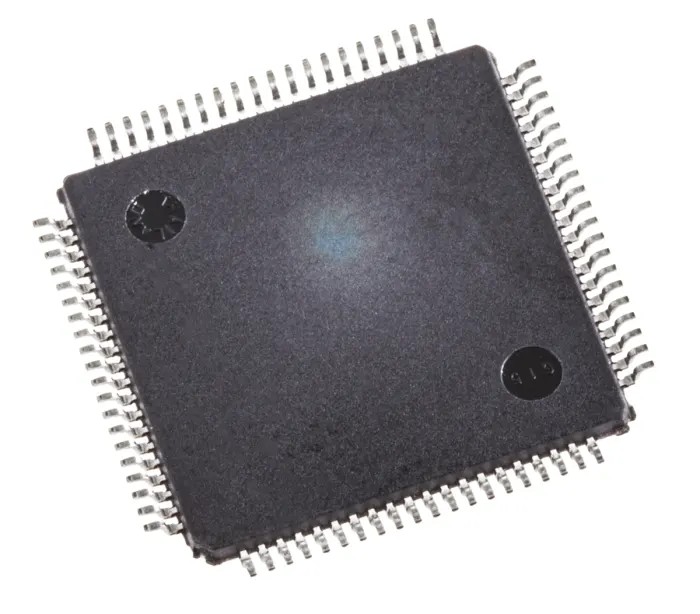

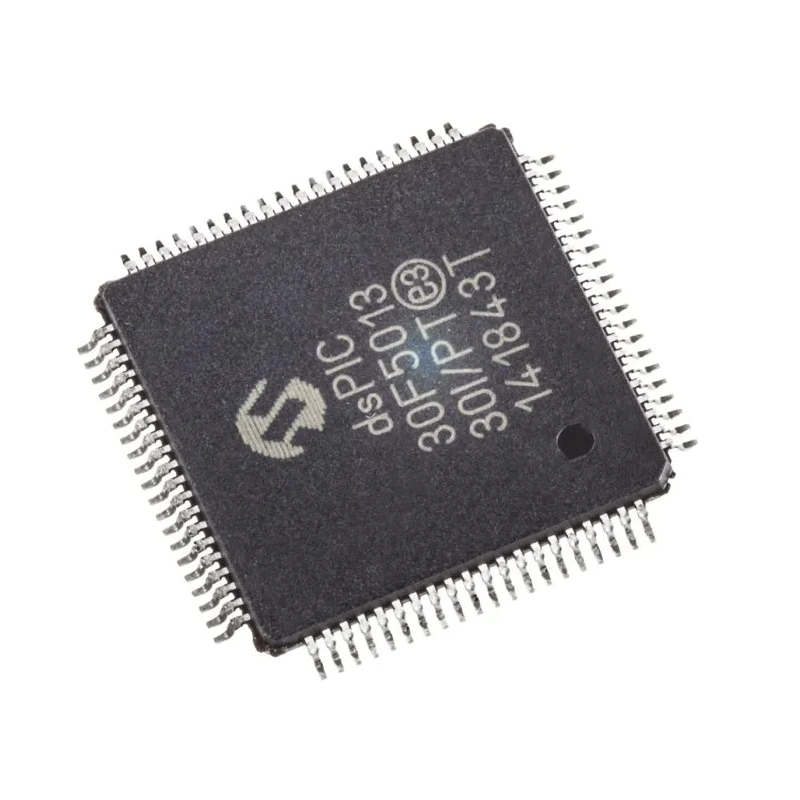

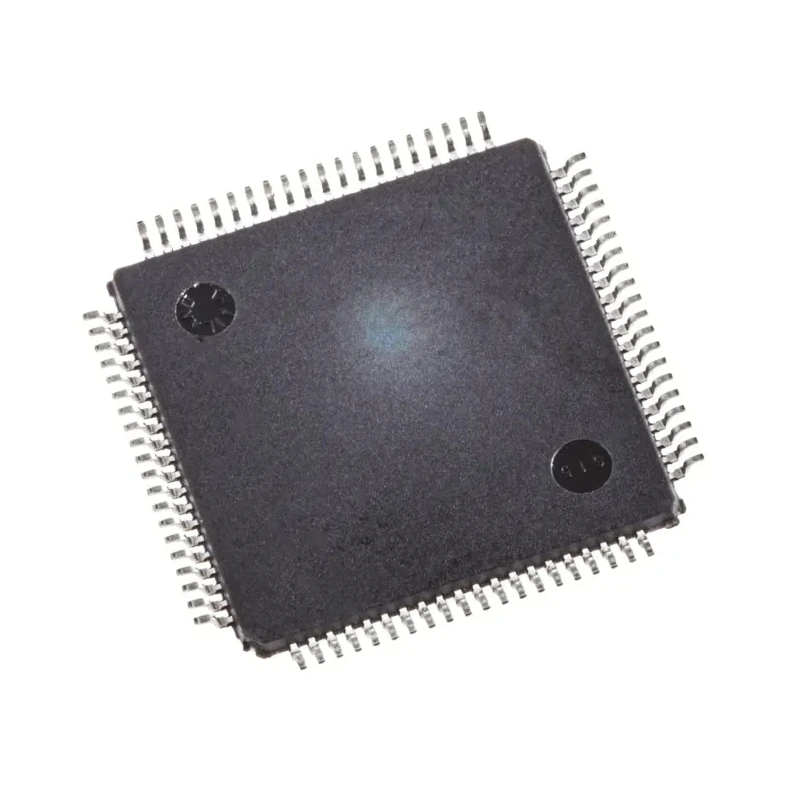

Microchip dsPIC30F 16-bit Digital Signal Processor 30 MIPS 66kB FLASH 80-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | dsPIC30F |
| Width | 12mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 80 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 66kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 5 |
| PWM Resolution | 16bit |
| ADC Channels | 16 |
| High-current sink/source I/O pins | 25 mA/25 mA |
Key Features
- Operates at a maximum clock frequency of 30 MIPS for high-speed processing.
- Features 16-bit data bus width and 4kB on-chip RAM for efficient data handling.
- Utilizes RISC instruction set architecture optimized for compiler efficiency.
- Includes a 12-bit ADC with 16 channels and 5 PWM units for versatile control applications.
- Supports surface mount type with compact dimensions of 12mm x 12mm x 1.05mm.
- Operates within wide supply voltage range of 2.5V to 5.5V for flexible power requirements.
- Built with five 16-bit timers and high-current sink/source I/O pins supporting 25 mA output.
- Designed for operation from -40°C to +85°C suitable for industrial environments.
Product Description
Microchip dsPIC30F dsPIC30F5013-30I/PT is a high-performance 16-bit Digital Signal Processor designed to deliver up to 30 MIPS with a 66kB Flash program memory and 4kB RAM. Packaged in an 80-Pin TQFP, it is ideal for embedded systems requiring DSP capabilities combined with MCU simplicity.
This processor features a modified Harvard architecture with a 16-bit data path and 83 base instructions, facilitating efficient execution of DSP algorithms and general MCU tasks. The device offers advanced DSP Engine features including single-cycle multiply-accumulate operations and saturation logic, enhancing signal processing accuracy.
Equipped with a 12-bit ADC with 16 input channels and 5 PWM units with 16-bit resolution, the dsPIC30F5013 supports mixed-signal applications such as motor control, audio processing, and industrial automation. Its operating voltage ranges from 2.5V to 5.5V and temperature range from -40°C to 85°C make it suitable for harsh environments.
Peripheral support includes high-current sink/source I/O pins rated at 25 mA, multiple timers, and communication interfaces like SPI, I2C, UART, and CAN modules. This versatility enables integration in automotive, industrial, and consumer electronics applications.
The compact form factor of 12mm x 12mm x 1.05mm and surface mount package type facilitate easy PCB integration. The dsPIC30F series is well suited for designers seeking DSP-like performance with the ease of a microcontroller in one series.
Operates at a maximum clock frequency of 30 MIPS for high-speed processing. Features 16-bit data bus width and 4kB on-chip RAM for efficient data handling. Utilizes RISC instruction set architecture optimized for compiler efficiency.
Includes a 12-bit ADC with 16 channels and 5 PWM units for versatile control applications. Supports surface mount type with compact dimensions of 12mm x 12mm x 1.05mm. Operates within wide supply voltage range of 2.5V to 5.5V.
Built with five 16-bit timers and high-current sink/source I/O pins supporting 25 mA output. Designed for operation from -40°C to +85°C suitable for industrial environments. Incorporates a DSP engine with specialized instructions for multiply-accumulate operations.
Equipped with communication modules including SPI, I2C, UART, and CAN for connectivity.
This product is suitable for industrial, embedded systems, automotive control, audio processing, and power electronics applications. Find more Microchip Digital Signal Processors and related components in EnvMart's extensive semiconductor catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 30 MIPS, allowing for high-speed processing capabilities.
This unit operates within a temperature range of -40°C to +85°C, making it suitable for industrial environments.
It features 66kB of FLASH program memory for efficient data handling and storage.
The integrated 12-bit ADC provides a resolution of 12 bits and supports 16 input channels.
The dimensions of this model are 12mm x 12mm x 1.05mm, supporting surface mount installation.
This processor includes 5 PWM units, each with a 16-bit resolution for versatile control applications.
It utilizes a RISC instruction set architecture, which is optimized for compiler efficiency.
The dsPIC30F operates within a supply voltage range of 2.5V to 5.5V, allowing for flexible power requirements.
This model is equipped with five 16-bit timers, enhancing its functionality for various applications.
It supports multiple communication interfaces including SPI, I2C, UART, and CAN modules, facilitating integration into various systems.
This digital signal processor has a pin count of 80, suitable for complex applications.
The high-current sink/source I/O pins are rated at 25 mA output, allowing for versatile interfacing capabilities.
