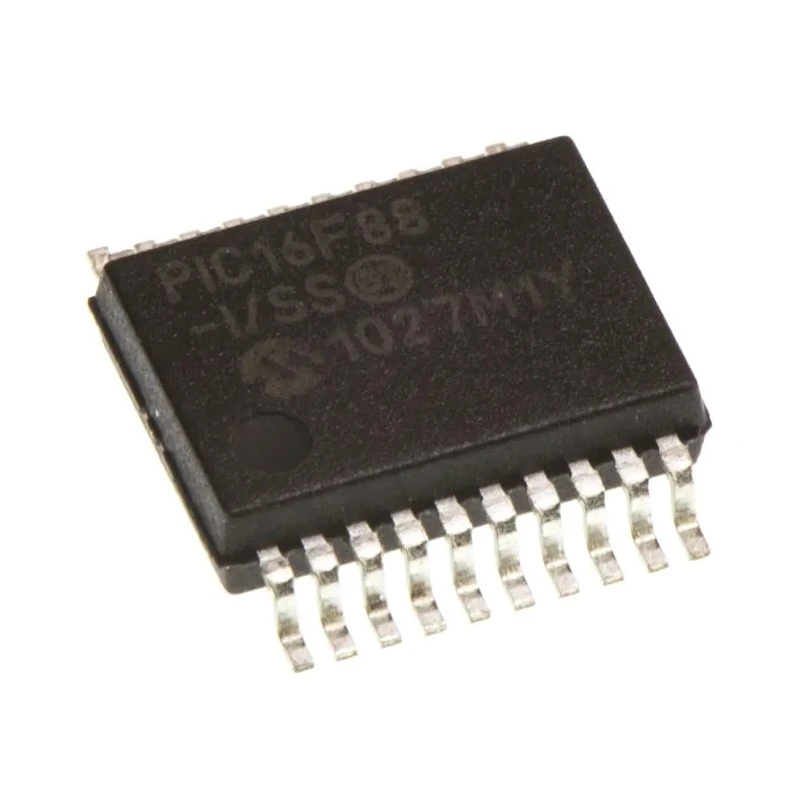

Microchip PIC16F88-I/SS 8 bit PIC Microcontroller 20 MHz 7.168 kB Program Memory 256B Flash 20-Pin SSOP

Microchip PIC16F88-I/SS is an 8-bit PIC microcontroller based on Microchip's Mid-range PIC16F series with a maximum clock frequency of 20 MHz and 7.168 kB of program memory with 256 bytes of Flash storage. The device is housed in a compact 20-pin SSOP surface mount package, making it ideal for embedded system designs where space is critical.

This microcontroller features a PIC core architecture with an 8-level hardware stack and a 35-instruction set, supporting development of complex applications with up to 5 MIPS performance. The 8-bit data bus width and integrated peripherals such as a SPI interface enable efficient communication and data handling.

Equipped with 25 programmable I/O pins, 368 bits of RAM, and 256 bytes of EEPROM, it offers flexible memory options suitable for both code and data storage. The device supports various built-in modules including three timers, two analogue comparators, seven 10-bit ADC channels (specific to the PIC16F88), capture/compare/PWM modules, and a synchronous serial port with SPI and I2C support, as well as an addressable USART for serial communication.

Designed to operate across temperatures from -40°C to 85°C, it is suitable for industrial, automotive, and consumer electronics applications requiring reliable performance. It supports power-on reset, brown-out reset, watchdog timer, in-circuit serial programming, and debugging features to enhance system robustness and enable streamlined development cycles.

The package dimensions are 7.5 mm length, 5.6 mm width, and 1.85 mm height, fitting standard surface mount technology processes. The maximum supply voltage is 5.5 V with a minimum of 2 V, and the device has a maximum power dissipation of 1 W.

Utilizes 8-bit PIC architecture with 35 instruction set and 8-level hardware stack. Maximum CPU speed of 20 MHz supporting up to 5 MIPS throughput. 7.168 kB program memory with FLASH type and 256 bytes EEPROM. Extensive peripherals including ADC, PWM, timers, SPI, I2C, and UART interfaces.

Suitable for industrial and embedded system applications with robust temperature tolerances.

Microchip offers comprehensive technical documentation, design support, and compliance certificates to ease integration. This microcontroller is well-suited for applications ranging from simple control systems to complex IoT devices and industrial control.
