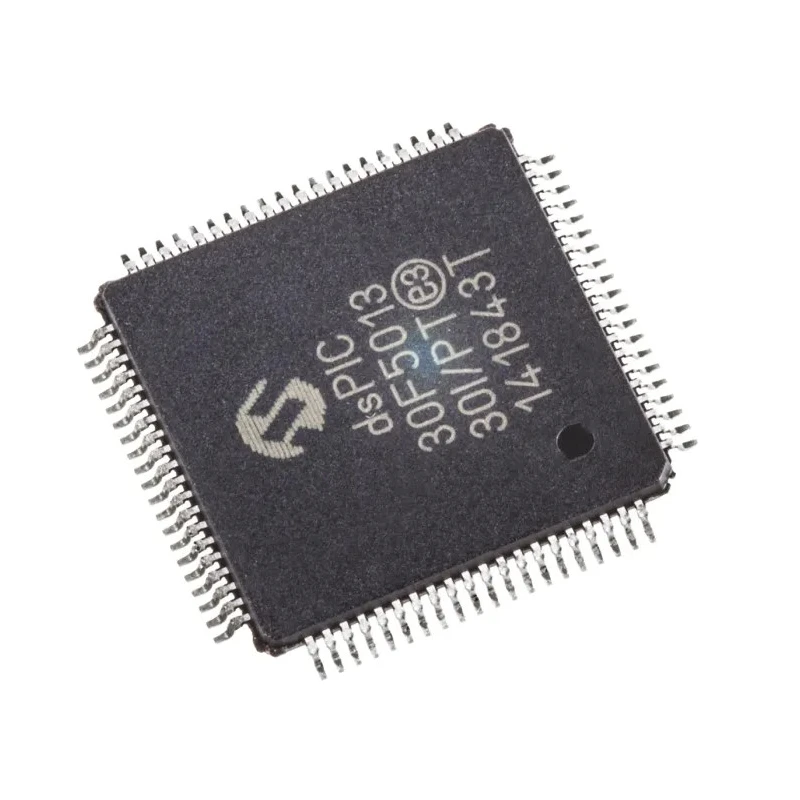

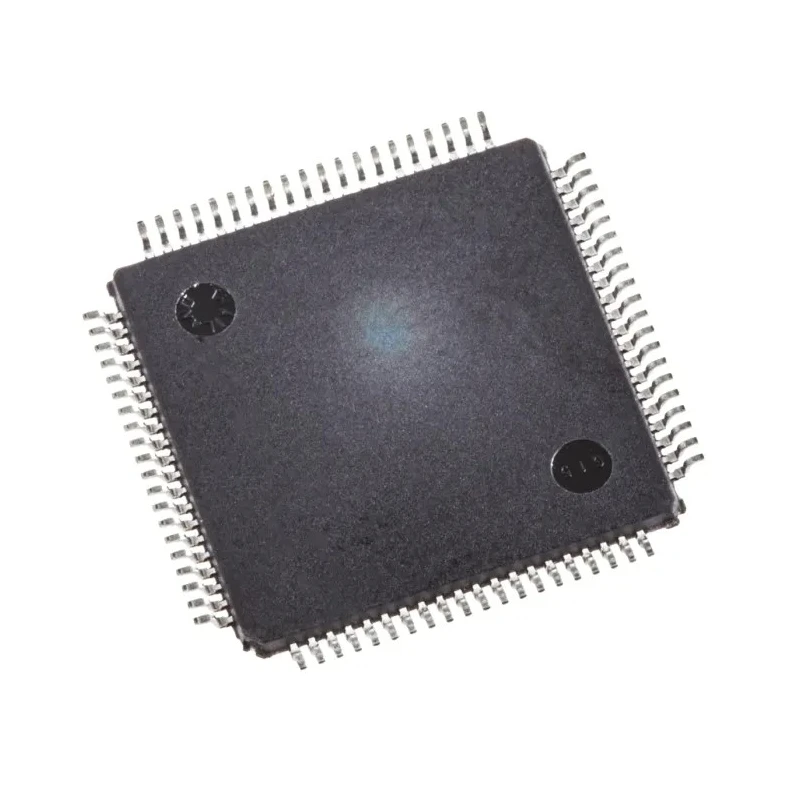

Microchip dsPIC30F 16 bit Digital Signal Processor 30 MIPS 66kB FLASH 80-Pin TQFP dsPIC30F5013-30I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | dsPIC30F5013-30I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 80 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 66kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 5 |
| PWM Resolution | 16bit |
| ADC Channels | 16 |
| High-current sink/source I/O pins | 25 mA/25 mA |
Key Features
- Operates at a maximum clock frequency of 30 MIPS for efficient processing.
- Features 4 kB RAM for data storage and a 66 kB FLASH program memory.
- Supports a 16-bit data bus width with RISC instruction set architecture.
- Incorporates a 12-bit ADC with 16 channels for precise analog input conversions.
- Includes five 16-bit timers and five PWM units with 16-bit resolution for timing control.
- Designed for surface mount applications with a compact 12 mm by 12 mm by 1.05 mm TQFP package.
- Operates reliably from -40°C up to 85°C ambient temperature range.
- Supports communication interfaces like SPI, I2C, UART, and CAN bus modules.
Product Description
Microchip dsPIC30F5013-30I/PT is a high-performance 16 bit Digital Signal Processor designed for embedded systems requiring DSP level computation combined with microcontroller simplicity. Featuring a 30 MIPS maximum CPU speed, this device offers efficient processing with a modified Harvard architecture optimized for C compiler use.
The processor includes 66 kB of on-chip FLASH program memory and 4 kB of data RAM, ideal for applications demanding fast, reliable memory access. It supports a robust 16-bit data bus width and a rich RISC instruction set enabling 83 base instructions with 24-bit wide instructions for flexible addressing and efficient code execution.
Equipped with advanced DSP engine features such as dual 40-bit accumulators, a 17-bit single-cycle multiplier with saturation logic, and single-cycle multiply-accumulate operations, this DSC is well-suited for signal processing tasks in industrial, automotive, audio codec, and embedded control applications.
The dsPIC30F5013-30I/PT includes a 12-bit, 200 ksps Analog-to-Digital Converter with 16 channels, providing high-resolution analog input capability essential for sensor interfacing and control systems. It also features five 16-bit timers and PWM units for fine control of output signals, as well as multiple communications interfaces including SPI, I2C, UART, and dual CAN bus modules for networked applications.
Its compact 80-pin TQFP package is designed for surface mount assembly and measures 12 mm by 12 mm by 1.05 mm, supporting integration into space-constrained environments. The processor is rated for operation from -40°C to +85°C, making it suitable for a wide range of industrial and automotive environments.
Operates at a maximum speed of 30 MIPS with a modified Harvard architecture optimized for embedded DSP processing. Includes 66 kB FLASH program memory and 4 kB data RAM, supporting complex applications. Features advanced DSP instructions including single-cycle multiply-accumulate and dual accumulators.
Integrates a 12-bit ADC with 16 channels and 200 ksps conversion rate for precise analog data acquisition. Offers comprehensive timer and PWM resources for control and timing applications. Supports SPI, I2C, UART, and CAN bus communication protocols for versatile connectivity.
Designed in a compact 80-pin TQFP surface mount package measuring 12 mm x 12 mm x 1.05 mm. Industrial grade operating temperature range from -40°C to +85°C ensures reliable performance.
Ideal for industrial automation, automotive electronics, audio processing, and embedded control systems, the Microchip dsPIC30F5013-30I/PT offers a blend of high-processing power and peripheral integration. Explore more Microchip products on EnvMart to find compatible components and development tools aligned to your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 30 MIPS, allowing for efficient processing.
It features 66 kB of FLASH program memory, suitable for complex applications.
This unit includes a 12-bit ADC with 16 channels for precise analog input conversions.
The processor is housed in an 80-pin TQFP package measuring 12 mm x 12 mm x 1.05 mm.
It operates reliably within an ambient temperature range of -40°C to +85°C.
This model supports SPI, I2C, UART, and CAN bus communication protocols for versatile connectivity.
It includes 4 kB of RAM for data storage, which is essential for efficient processing.
The dsPIC30F5013-30I/PT features five 16-bit timers and five 16-bit PWM units for precise control.
The processor operates with a supply voltage ranging from 2.5V to 5.5V.
It utilizes a RISC instruction set architecture, optimized for embedded DSP processing.
This digital signal processor is suitable for applications in industrial automation, automotive electronics, audio processing, and embedded control systems.
This model has a pin count of 80, which is typical for its TQFP package design.
