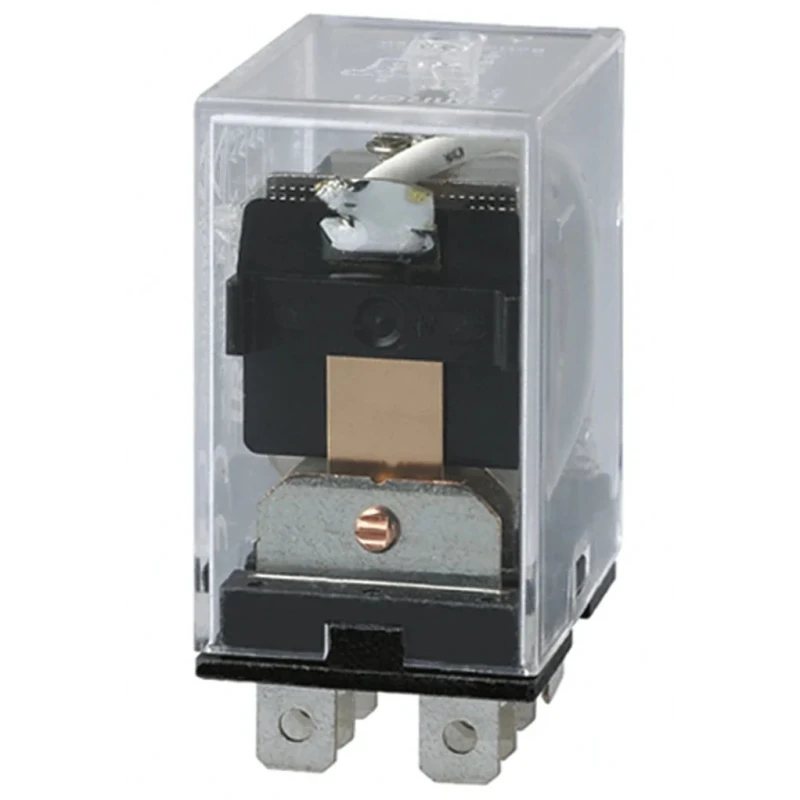

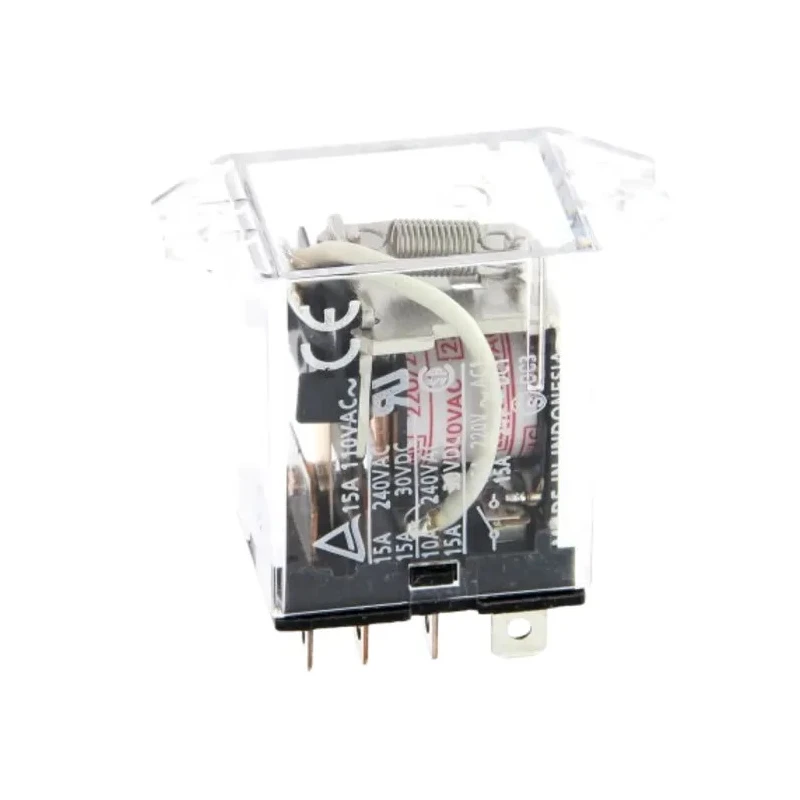

Omron Power Relay 24V DC Coil, 15A Switching Current, SPDT Contact Configuration LY1 24VDC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | LY1 24VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY1 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 900mW |
| Switching Power | 0.9W |
Key Features
- The relay provides a robust 2kV AC isolation rating for enhanced electrical safety.
- Capable of handling a maximum switching voltage of 250V AC, allowing versatile usage.
- Integrated diode offers built-in surge protection to prolong component life.
- Wide operating temperature range from -25°C to +55°C ensures reliable functionality in harsh environments.
- Compact plug-in design with dimensions of 21.5mm length, 36mm width, and 28mm height for easy installation and maintenance.
- Equipped with silver alloy contacts ensuring low resistance and durability.
- Mechanical life rated up to 100 million operations and electrical life of up to 200,000 operations for long-term use.
- Applicable in power distribution, automotive, industrial machinery, and HVAC control systems for reliable switching operations.
Product Description
Omron LY1 24VDC power relay is a reliable industrial-grade relay designed for efficient control and automation applications. Featuring a 24V DC coil voltage and a single-pole double-throw (SPDT) contact configuration, it supports a maximum switching current of 15A, making it suitable for power distribution and control in various electrical systems.
The relay's robust isolation rating of 2kV AC enhances safety by preventing unintended electrical faults between coil and contacts. It can handle switching voltages of up to 250V AC, engineered for versatile use across industrial, automotive, HVAC, and manufacturing applications.
This device incorporates a built-in diode for surge protection, safeguarding the relay from voltage spikes and extending operational life. Its wide temperature tolerance from -25°C to +55°C allows operation in diverse environmental conditions without loss of performance.
The compact and plug-in form factor with precise dimensions of 21.5mm (length), 36mm (width), and 28mm (height) simplifies installation and replacement in existing systems. Silver alloy contacts provide low contact resistance (50mΩ) and high conductivity, optimizing switching efficiency.
Designed for durability, the relay offers mechanical longevity of up to 100 million operations and electrical longevity of 200,000 operations, ensuring dependable service life in demanding industrial settings.
The relay is ideal for use in power distribution systems requiring precise control and high current switching. In automotive applications, it delivers reliable switching essential for vehicle system safety. Industrial machinery benefits from its robust design and safety features to enhance operational performance.
HVAC systems utilize this relay to control heating and cooling components efficiently.
Overall, the Omron LY1 24VDC relay combines safety, durability, and efficient switching performance, tailored for critical industrial control tasks. Explore more Power Relays and automation equipment at EnvMart for complete control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 15A.
It features a single-pole double-throw (SPDT) contact configuration.
The relay requires a coil voltage of 24V DC.
This model has dimensions of 21.5mm in length, 36mm in width, and 28mm in height.
The relay operates effectively within a temperature range of -25°C to +55°C.
It is equipped with silver alloy contacts that ensure low resistance and high conductivity.
The relay provides a robust isolation rating of 2kV AC for enhanced electrical safety.
It incorporates a built-in diode that offers surge protection to prolong the component's life.
The mechanical life of this relay is rated up to 100 million operations.
This relay meets UL and CSA standards/approvals.
The contact resistance of this relay is 50mΩ.
It is applicable in power distribution, automotive, industrial machinery, and HVAC control systems.
