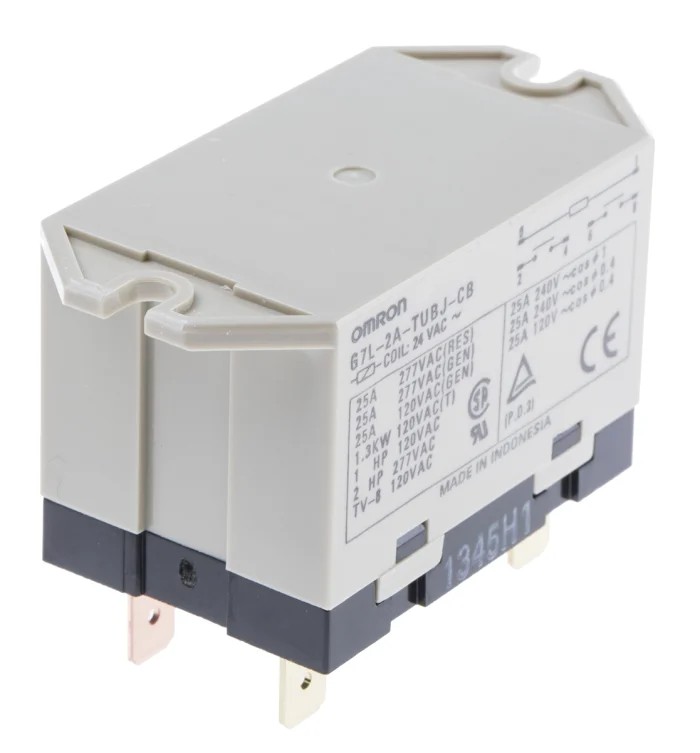

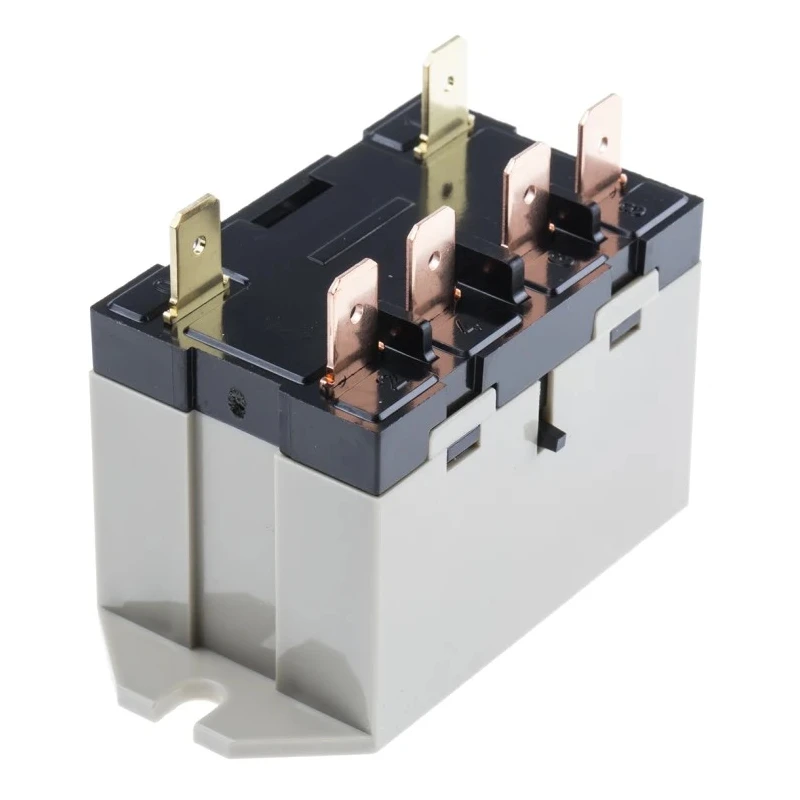

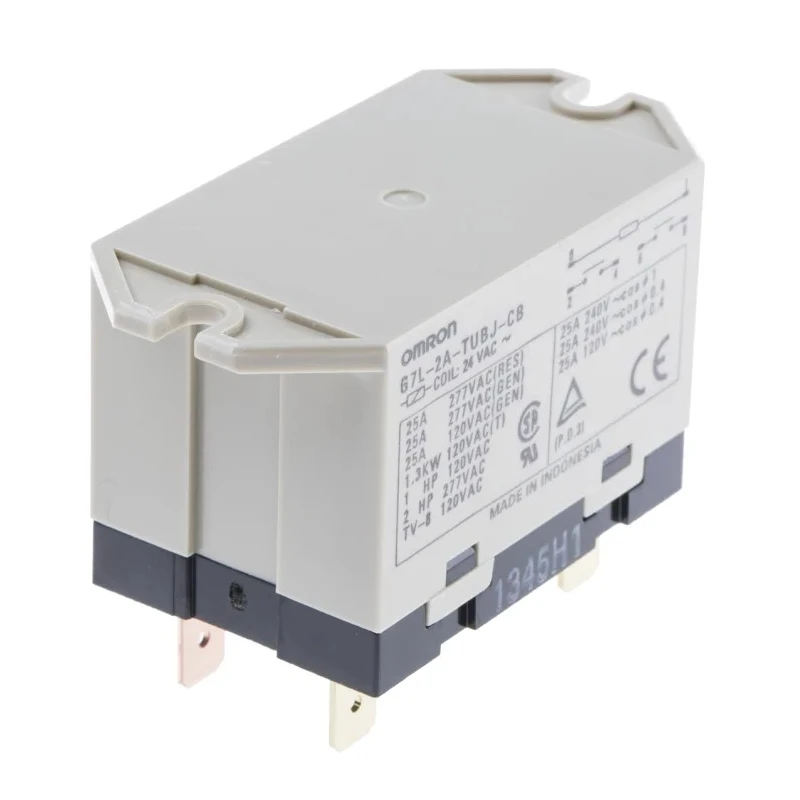

Omron PCB Power Relay 24V AC Coil, 25A Switching Current, DPST Configuration G7L-2A-TUBJCB-AC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 36mm |
| Length | 68.5mm |
| Model | G7L-2A-TUBJCB-AC24 |
| Width | 34.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G7L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | Quick Connect |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 303Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 125V ac |
| Coil Power | 2.5W |
| Switching Power | 1.9W |
| perfectly suited for high-inrush fluid pump controls | pool/spa, water |
Key Features
- Designed for mounting on PCBs with quick connect terminals.
- Supports a switching AC voltage rating of 125V AC.
- Operates reliably between -25°C and 60°C.
- Constructed with silver alloy contact material ensuring low contact resistance.
- The coil resistance is 303 ohms, consuming 2.5W coil power.
- Compact size with dimensions 68.5mm length, 36mm height, and 34.5mm width.
- Complies with CSA and UL safety standards.
- Ideal for applications such as high-inrush fluid pump controls including pools, spas, and water processing.
Product Description
Omron G7L-2A-TUBJCB-AC24 PCB Power Relay features a 24V AC coil and a robust 25A switching current capacity with DPST contact configuration. This relay is engineered for mounting on printed circuit boards (PCB) and includes quick connect terminals for efficient installation. The relay supports a switching AC voltage of 125V AC, enabling it to handle significant electrical loads.
Operating reliability is maintained within a temperature range of -25°C to 60°C, suitable for diverse industrial environments. The silver alloy contacts ensure high conductivity and durability with a low contact resistance of 50 milliohms. Coil resistance measures 303 ohms with a coil power consumption of 2.5 watts, making it energy efficient.
The compact dimensions of 68.5mm length, 36mm height, and 34.5mm width facilitate integration into tight spaces on control panels or electrical assemblies. Certified to CSA and UL standards, the G7L series upholds safety and quality benchmarks requisite for industrial, manufacturing, and automation use cases.
This relay is perfectly suited for demanding applications such as high-inrush fluid pump controls used in pool and spa systems, water processing plants, and chemical industry controls. The DPST (Double Pole Single Throw) contact configuration allows for controlling two separate circuits simultaneously, enhancing versatility.
Designed for mounting on PCBs with quick connect terminals. Supports a switching AC voltage rating of 125V AC. Operates reliably between -25°C and 60°C. Constructed with silver alloy contact material ensuring low contact resistance.
The coil resistance is 303 ohms, consuming 2.5W coil power. Compact size with dimensions 68.5mm length, 36mm height, and 34.5mm width. Complies with CSA and UL safety standards. Ideal for applications such as high-inrush fluid pump controls including pools, spas, and water processing.
Explore the wide range of high-quality Power Relays from Omron on EnvMart to support your industrial automation and electrical control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 25A, allowing it to handle significant electrical loads in various applications.
This model operates with a coil voltage rating of 24V AC, making it suitable for various control applications.
It operates reliably within a temperature range of -25°C to 60°C, suitable for diverse industrial environments.
The relay features a DPST (Double Pole Single Throw) contact configuration, allowing control of two separate circuits simultaneously.
The relay has compact dimensions of 68.5mm in length, 36mm in height, and 34.5mm in width, facilitating integration into tight spaces.
The contact material is silver alloy, which ensures low contact resistance of 50 milliohms, enhancing conductivity.
It is equipped with quick connect terminals, allowing for efficient installation on printed circuit boards (PCBs).
The G7L-2A-TUBJCB-AC24 complies with CSA and UL safety standards, ensuring it meets necessary safety benchmarks.
The coil resistance is 303 ohms, and it consumes 2.5 watts of power during operation.
It is particularly suited for high-inrush fluid pump controls, including applications in pools, spas, and water processing systems.
The relay supports a maximum switching AC voltage rating of 125V AC, allowing it to handle significant electrical loads.
The coil power consumption is 2.5 watts, making it energy efficient for its operational requirements.
