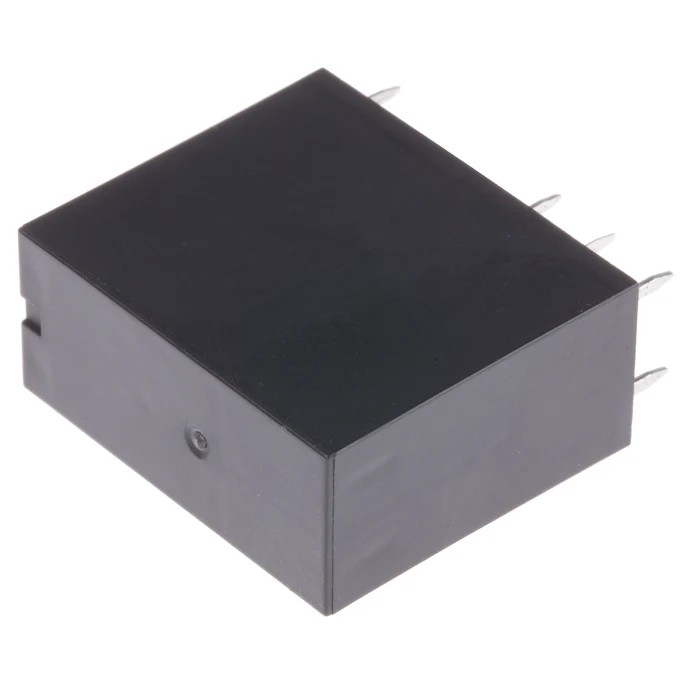

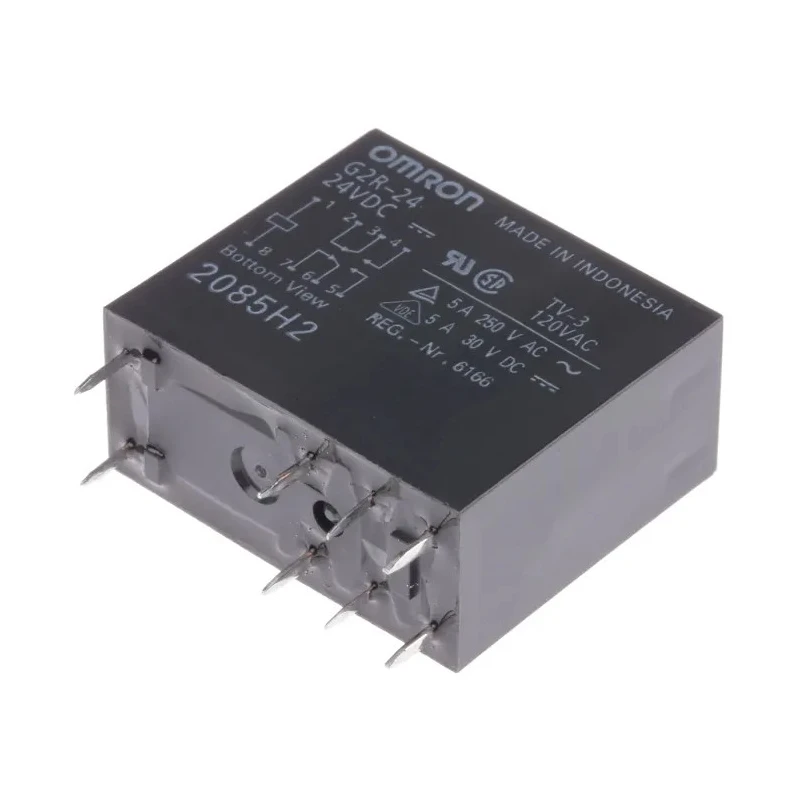

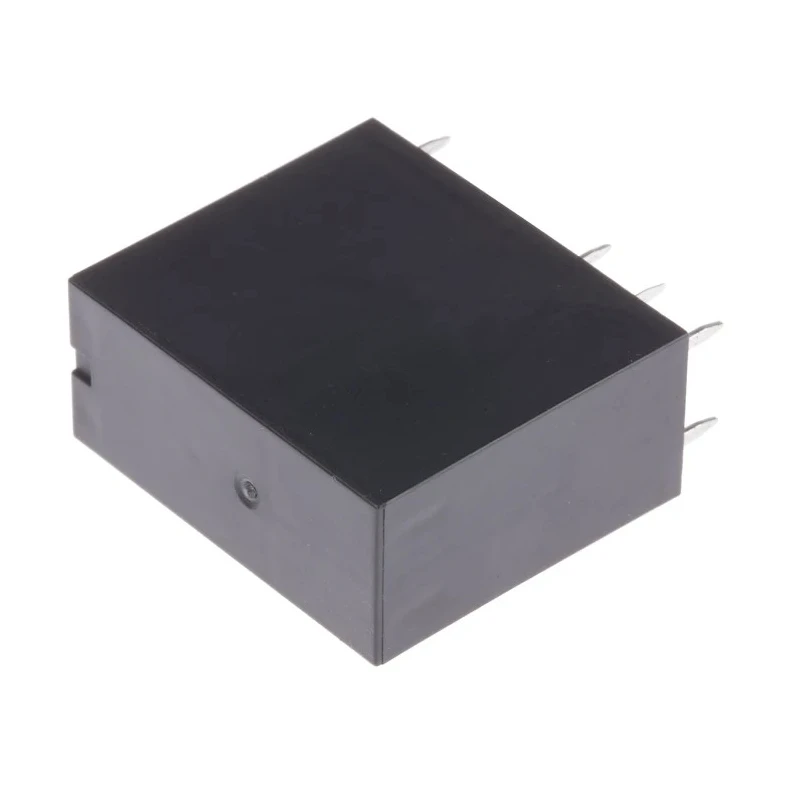

Omron PCB Power Relay 24V DC Coil Voltage 5A Switching Current DPDT G2R-24 DC24

Omron G2R-24 DC24 PCB Power Relay is a high-quality compact electromechanical switching device designed for industrial automation and control systems. It features a 24V DC coil voltage and a 5A switching current with a DPDT contact configuration providing dual-pole changeover switching for two independent circuits.

The relay mounts securely onto printed circuit boards using PCB pin terminals that enable through-hole soldering for mechanical retention and reliable electrical connection. The coil has a resistance of 1.1 kΩ and a power rating of 530mW, which reduces heat generation and power consumption in operation.

With switching capabilities up to 125V DC and 380V AC, and silver alloy contact material, this relay ensures stable conductivity and long operational life. Its operational temperature range from -40°C up to 70°C makes it suitable for wide environmental conditions typical in manufacturing and industrial use.

The compact form factor with dimensions 29mm in length, 13mm in width, and 25.5mm in height allows efficient space utilization on PCBs. The product meets safety and regulatory standards including UL and CSA certifications, underlining its reliability for critical applications.

Typical applications include relay logic functions in factory automation panels, auxiliary circuit control in machinery, PLC output isolation, signal switching in test instrumentation, and as replacement modules within industrial electronic assemblies.

Designed for PCB mounting with secure through-hole installation using PCB pin terminals. Operates reliably with coil resistance of 1.1 kΩ and low coil power of 530mW minimizing heat generation. Switches up to 125V DC and 380V AC with silver alloy contacts for excellent conductivity and durability.

Temperature range is rugged from -40°C to 70°C suitable for industrial environments. Compact dimensions of 29mm length, 13mm width, and 25.5mm height allow easy integration in control panels. Certified to meet CSA and UL standards ensuring compliance with recognized safety requirements.

Ideal for relay logic, auxiliary circuit control, PLC output isolation, and test equipment signal switching. Explore more Power Relays and industrial automation components at EnvMart for reliable solutions in electrical control and signal conditioning systems.
