ams OSRAM 2 V Red LED Surface Micro SIDELED LS Y876-Q2S1-1

Free Delivery in India | Lowest Global Shipping Charges

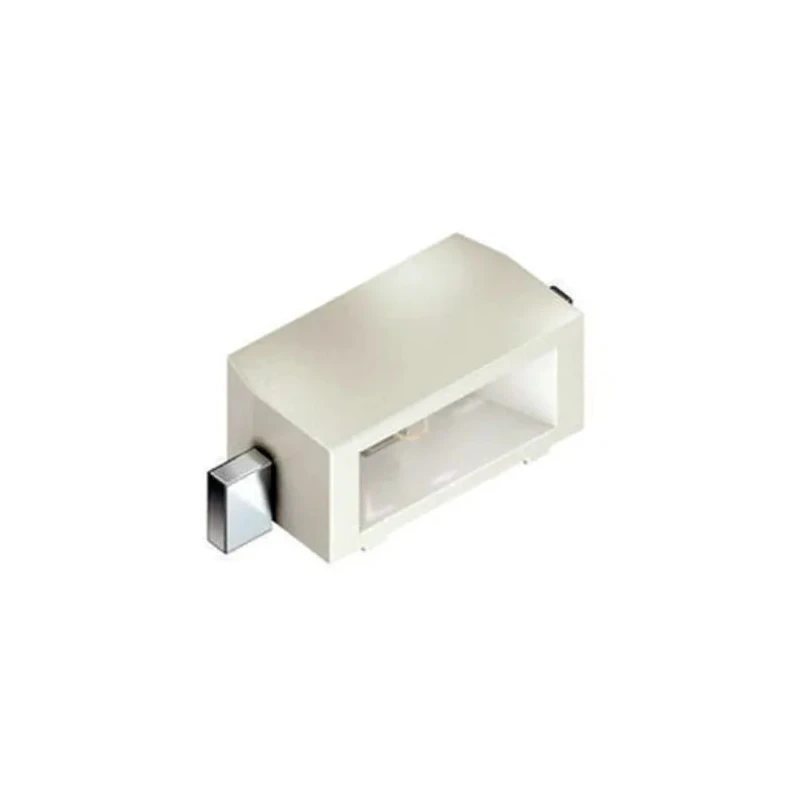

ams OSRAM 2 V Red LED Surface Micro SIDELED LS Y876-Q2S1-1

Name: ams OSRAM 2 V Red LED Surface Micro SIDELED LS Y876-Q2S1-1
Brand: ams OSRAM
SKU: 345182
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Model	LS Y876-Q2S1-1
Packaging	Tape & Reel
Mount Type	Surface
Series	Micro SIDELED
Maximum forward current	30mA
Viewing angle	120 °
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	633nm
Forward Voltage	2V
Number of Pins	2
LED Luminosity	224 mcd
Lens Dimensions	2.3 x 1.2 mm
Lens Shape	Rectangular
LED Luminous Flux	0.48 lm

Key Features

This LED has a forward voltage of 2 volts and maximum forward current of 30 mA.
The surface mount Micro SIDELED package measures 2.3 x 1.2 mm with a viewing angle of 120 degrees.
It emits red light with a dominant wavelength of 633 nm and LED luminosity of 224 mcd.
The lens is clear, rectangular shaped with a flat finish optimized for coupling into light guides.
Packaging is supplied as tape and reel for efficient manufacturing integration.
It features 2 pins and complies with RoHS standards.
The LED series is designed for applications requiring compact side-mounted red light sources.

Product Description

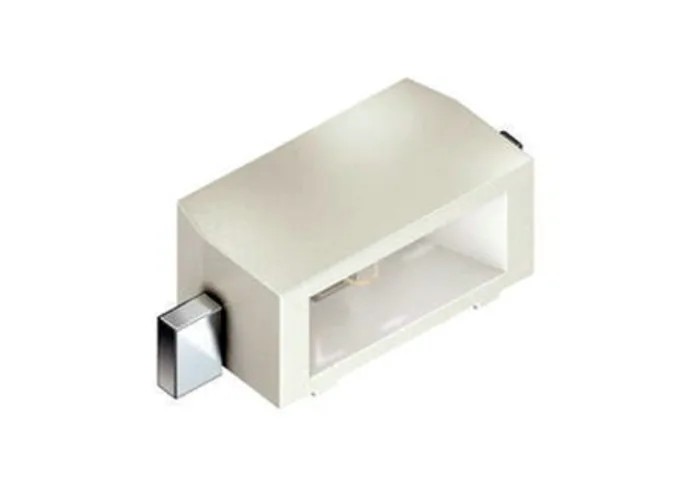

The ams OSRAM LS Y876-Q2S1-1 is a 2 V red LED from the Micro SIDELED series with a surface mount package measuring 2.3 x 1.2 mm. This low profile, side-emitting LED features a clear rectangular lens, optimized with a built-in reflector to enhance light output. It delivers a luminous intensity of 224 millicandela and has a viewing angle of 120 degrees, making it well suited for backlighting applications.

This LED is ideal for electronic display and indicator uses where space is constrained, such as LCD backlights, mobile phones, switches, keys, and illuminated advertising. Its flat profile and low height allow easy integration onto compact circuit boards with limited clearance. The dominant wavelength of 633 nm ensures a vivid red color output.

The device operates at a maximum forward current of 30 mA with a forward voltage of 2 V. It comes mounted on tape and reel packaging, facilitating high-volume automated assembly processes. The LED complies with RoHS environmental standards.

With 2 pins for electrical connection, this ams OSRAM Micro SIDELED series LED is manufactured in Malaysia and provides a reliable, efficient red light source for industrial, commercial, and consumer electronics applications requiring precise side emission.

Low profile surface mount red LED with rectangular clear lens. Consistent red emission at 633 nm dominant wavelength. Compact 2.3 x 1.2 mm Micro SIDELED package design. Wide 120° viewing angle for uniform illumination. Maximum forward current 30 mA with 2 V forward voltage.

Tape and reel packaging suitable for automated assembly. RoHS compliant and manufactured in Malaysia.

This ams OSRAM LED is a dependable component for electronics manufacturers and designers seeking efficient side-emitting red LEDs for backlighting, signage, and indicator panels. Browse EnvMart's industrial electronics category for similar LEDs and optoelectronic devices.
