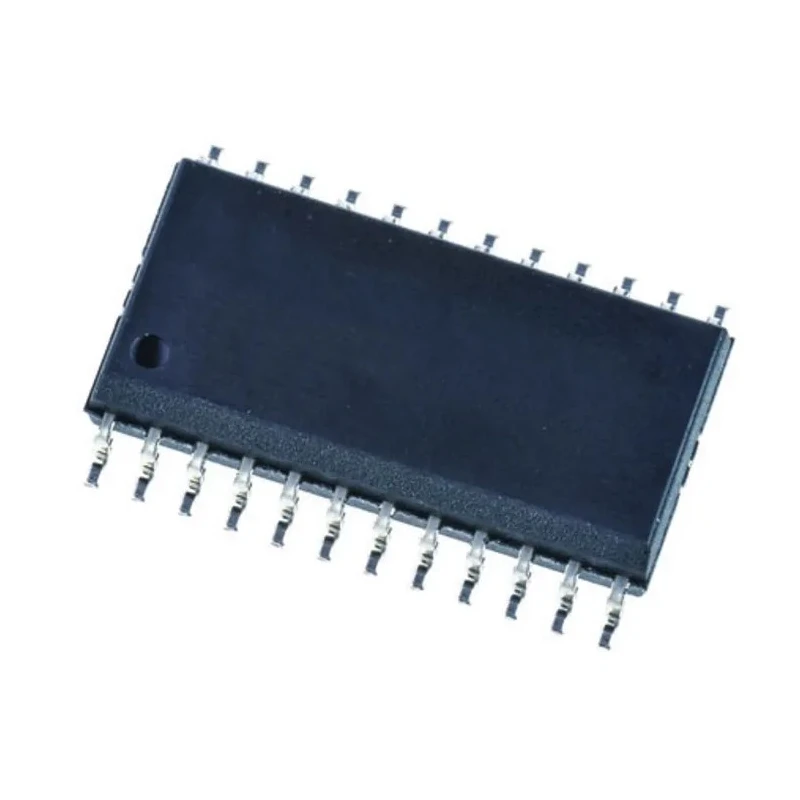

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, Surface Mount SOIC 24-Pin SN64BCT25244DW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.6mm |
| Length | 15.6mm |
| Model | SN64BCT25244DW |
| Width | 7.6mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output TTL |
| Output type | 3 State |
| Series | SN64BCT25244 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | BCT |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -80mA |
| Maximum Propagation Delay Time @ CL | 6ns |
| Supply Current | 100μA |
| Maximum Low Level Output Current | 188mA |
Key Features
- The device belongs to the 74BCT family of BiCMOS TTL logic components.
- It supports a supply voltage range from 4.5V to 5.5V with low supply current of 100μA.
- The buffer IC provides compatibility with LVTTL/TTL inputs and TTL output levels.
- Operating temperature ranges from -40°C to +85°C suitable for various industrial applications.
- Maximum propagation delay time is 6ns at capacitive load, ensuring fast signal transmission.
- Pin count is 24 with package dimensions 15.6mm length, 7.6mm width, and 2.6mm height.
- Maximum high-level output current is -80mA and maximum low-level output current is 188mA.
- Mounting type is surface mount, designed for efficient PCB assembly.
Product Description
Texas Instruments SN64BCT25244DW is an 8-channel buffer and line driver IC designed for high-performance digital signal buffering and driving. It is part of the 74BCT family, utilizing BiCMOS TTL logic technology to deliver low power consumption and high-speed operation.
This buffer IC features a 3-state, non-inverting output that supports single-ended inputs and a supply voltage range between 4.5V and 5.5V. It is compatible with LVTTL and TTL input logic levels and provides TTL output levels, making it versatile for interfacing in mixed logic environments.
The SOIC package with 24 pins facilitates surface mounting on printed circuit boards to optimize design compactness and manufacturing efficiency. Its compact dimensions of 15.6mm length, 7.6mm width, and 2.6mm height support space-constrained applications.
With a maximum propagation delay of 6 nanoseconds at capacitive load, this IC delivers reliable and fast signal transmission, suitable for digital communication and control systems. It operates over a wide temperature range from -40°C to +85°C, ensuring robust performance even in demanding industrial or automotive environments.
The maximum high-level output current of -80mA and maximum low-level output current of 188mA enable it to drive multiple loads effectively. The IC’s supply current remains low at 100μA, which helps in maintaining energy efficiency in battery-powered or low-power systems.
This product is ideal for use in industrial electronics, telecommunications, automotive electronics, and consumer electronics applications that require reliable and efficient buffering and line driving capabilities.
The device is a standard member of Texas Instruments' line interface IC products. Its surface mount design supports automated assembly processes. Compatible with LVTTL/TTL input logic and TTL output logic levels. Wide operating temperature range suitable for industrial environments.
High-speed propagation delay time enhances performance in timing-critical applications. The 3-state output allows bus-oriented design and multiple device interfacing. Explore more from the semiconductor category at EnvMart for related line interface and buffer IC solutions.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage range for this model is between 4.5V and 5.5V.
The maximum propagation delay time at capacitive load is 6 nanoseconds.
The package dimensions are 15.6mm in length, 7.6mm in width, and 2.6mm in height.
It operates within a temperature range of -40°C to +85°C.
This model features 8 channels.
It supports single-ended inputs and provides TTL output levels, compatible with LVTTL/TTL input logic.
The maximum high-level output current is -80mA.
The supply current is 100μA, which helps maintain energy efficiency.
This model is designed for surface mounting on printed circuit boards.
It features a 3-state, non-inverting output configuration.
It is suitable for industrial electronics, telecommunications, automotive electronics, and consumer electronics applications.
The output polarity of this model is non-inverting.
