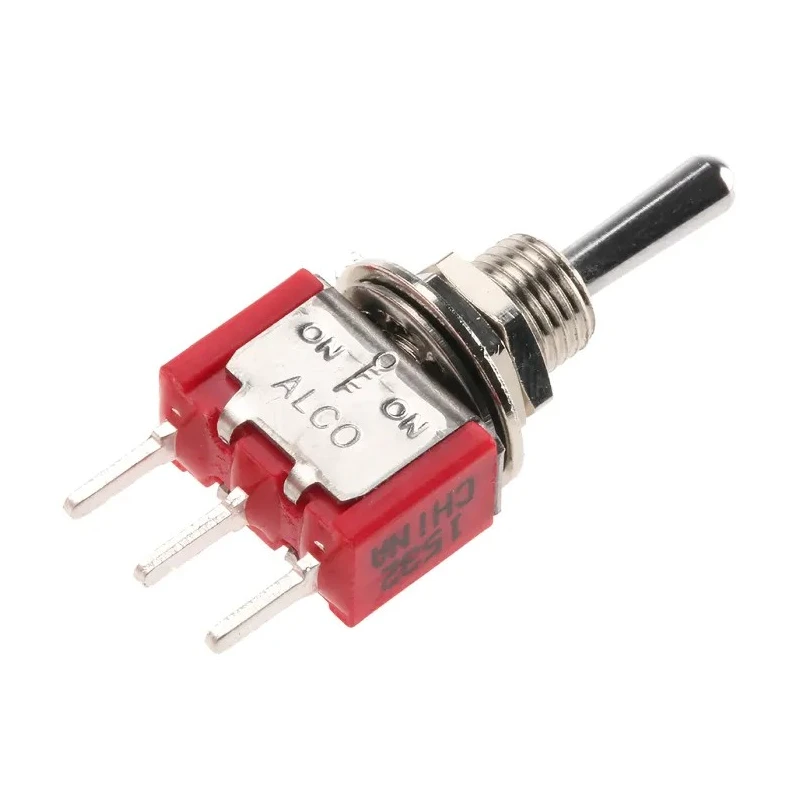

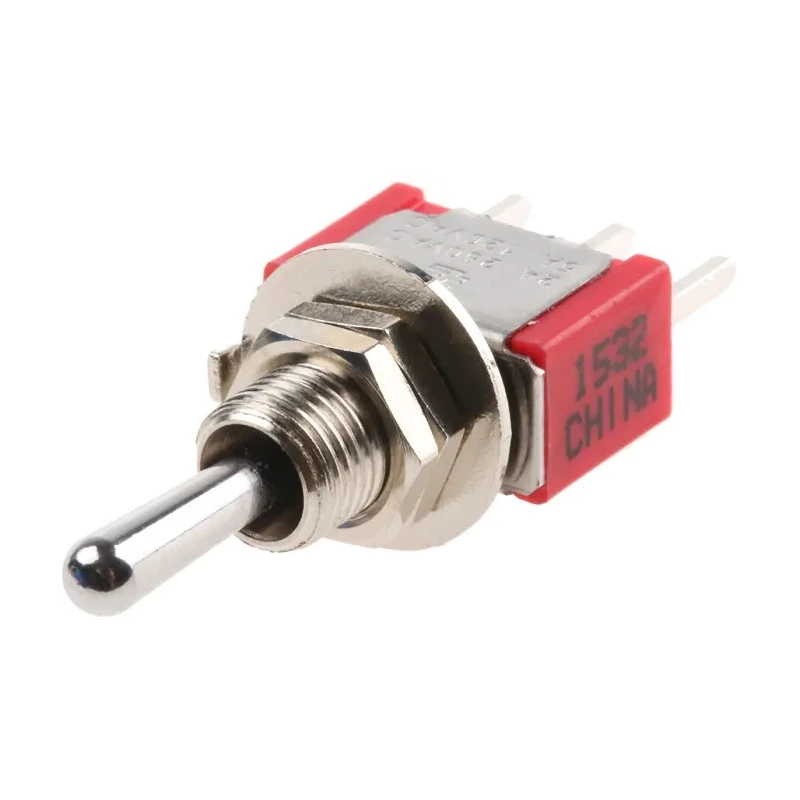

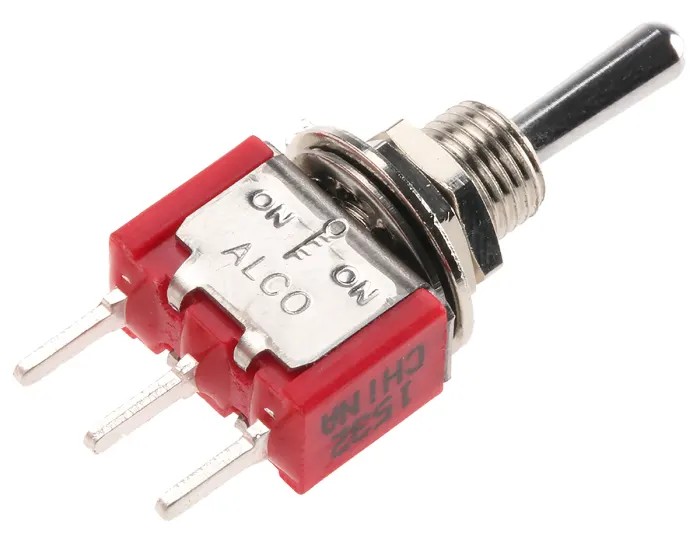

TE Connectivity Gemini A Series Toggle Switch, PCB Mount, On-Off-On SPDT, Through Hole Terminal, 28 V dc, 115 V 1-1825137-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.27in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Offers a robust On-Off-On switching operation with SPDT contact configuration.
- Rated for 5A contact current suitable for moderate load applications.
- Constructed with phenolic actuator material and epoxy sealed terminals for durability.
- Features through-hole terminal type and PCB mount for easy integration.
- IP67 rated providing protection against dust and temporary immersion.
- Operates safely within temperatures ranging from -30°C to 85°C.
- Panel cutout size of 6.35 mm for precise fitting.
- Complies with RoHS standards ensuring environmental safety.
Product Description
TE Connectivity 1-1825137-6 Gemini A Series toggle switch is specifically engineered for PCB mounting and provides On-Off-On switching with SPDT contact configuration, operating at voltages of 28 V dc and 115 V ac. This switch accommodates a contact current of 5A, making it ideal for industrial electrical control applications.
Its compact size, with a length of 0.5 inches, height of 0.35 inches, and width of 0.27 inches, allows for efficient space utilization in equipment. The switch features a phenolic actuator material combined with epoxy sealed terminals and a stainless steel frame with brass tin-plated solder supports to ensure longevity and resistance against environmental factors.
Designed for durability, this toggle switch has an IP67 rating, providing protection against dust ingress and temporary immersion in water. It supports through-hole terminal type and PCB mounting, facilitating straightforward installation. Operating temperatures range from -30°C to 85°C, supporting a variety of operating environments.
This product meets RoHS compliance standards, ensuring it adheres to environmental and safety regulations. The panel cutout size of 6.35 mm allows precise and secure mounting on electrical panels. It is part of the Gemini A Series, recognized for quality and reliable performance in electronic switching components.
Robust On-Off-On SPDT operation for versatile switching. Rated at 5A contact current suitable for moderate electrical loads. Phenolic actuator with epoxy sealing and stainless steel frame enhance durability. IP67 rated for dust and water resistance ensuring longevity in harsh conditions.
Compact dimensions allow space saving in equipment design. Through-hole terminal and PCB mount provide convenient installation. Wide operating temperature range from -30°C to 85°C. RoHS compliant ensuring environmental safety.
Panel cutout size of 6.35 mm for accurate mounting.
This TE Connectivity Toggle Switch is ideal for use in industrial automation, electrical control panels, manufacturing equipment, and other commercial applications requiring reliable switch operation. Its build quality and technical specifications make it well suited for harsh industrial environments.
Explore EnvMart’s extensive catalog for more high-quality electronic switch solutions and components from trusted brands like TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for On-Off-On switching operation.
The toggle switch is rated for a maximum contact current of 5A, making it suitable for moderate load applications.
It operates at a contact DC voltage of 28V and an AC voltage of 115V.
The switch has an IP67 rating, providing protection against dust ingress and temporary immersion in water.
The dimensions are 0.5 inches in length, 0.35 inches in height, and 0.27 inches in width.
The required panel cutout size for this switch is 6.35 mm, ensuring precise fitting during installation.
It features a phenolic actuator material, epoxy sealed terminals, and a stainless steel frame with brass tin-plated solder supports.
The operating temperature range for this unit is from -30°C to 85°C, accommodating various environmental conditions.
Yes, this switch complies with RoHS standards, ensuring it meets environmental safety regulations.
This model supports PCB mounting with a through-hole terminal type, facilitating easy integration into circuits.
It is part of the Gemini A Series, which is recognized for quality and reliable performance in electronic switching components.
This toggle switch is ideal for use in industrial automation, electrical control panels, and manufacturing equipment requiring reliable switch operation.
