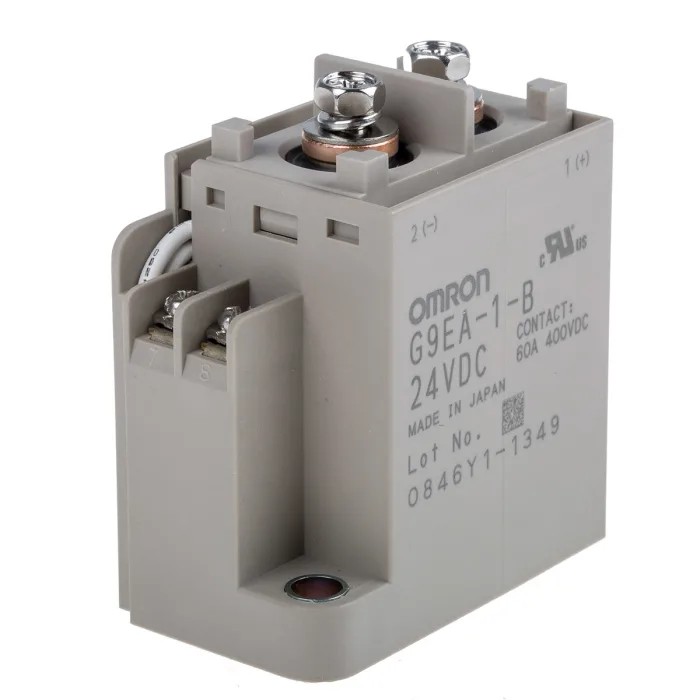

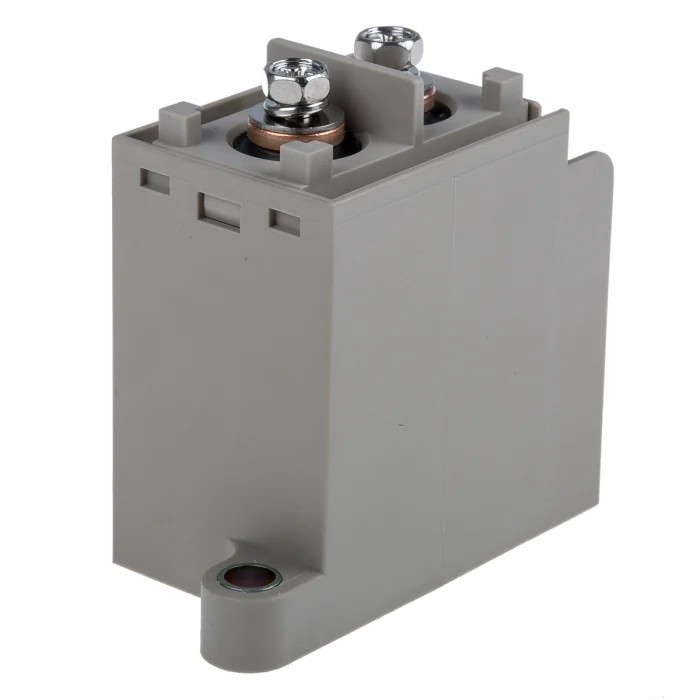

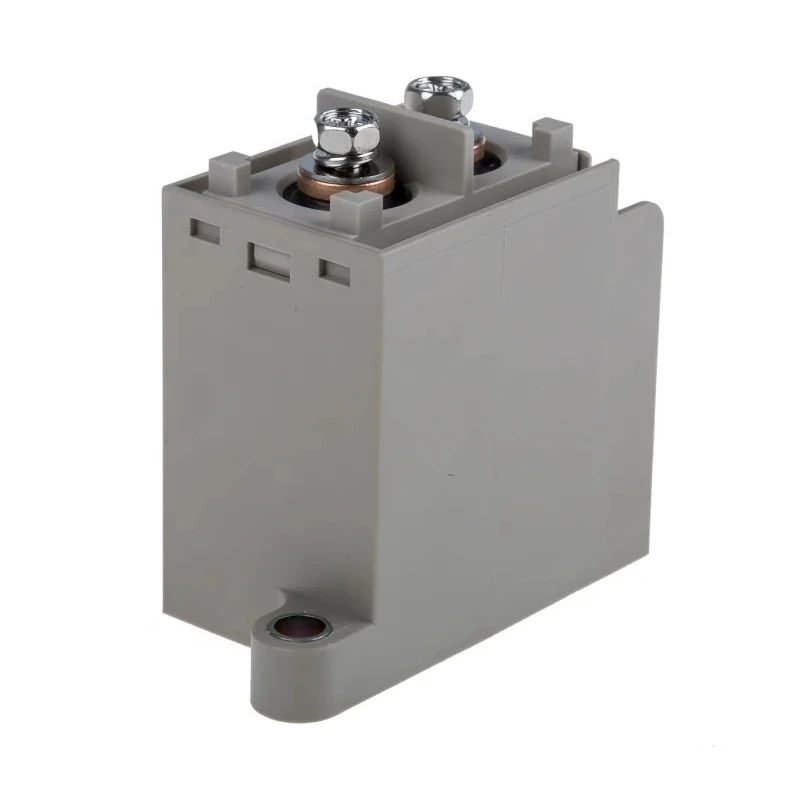

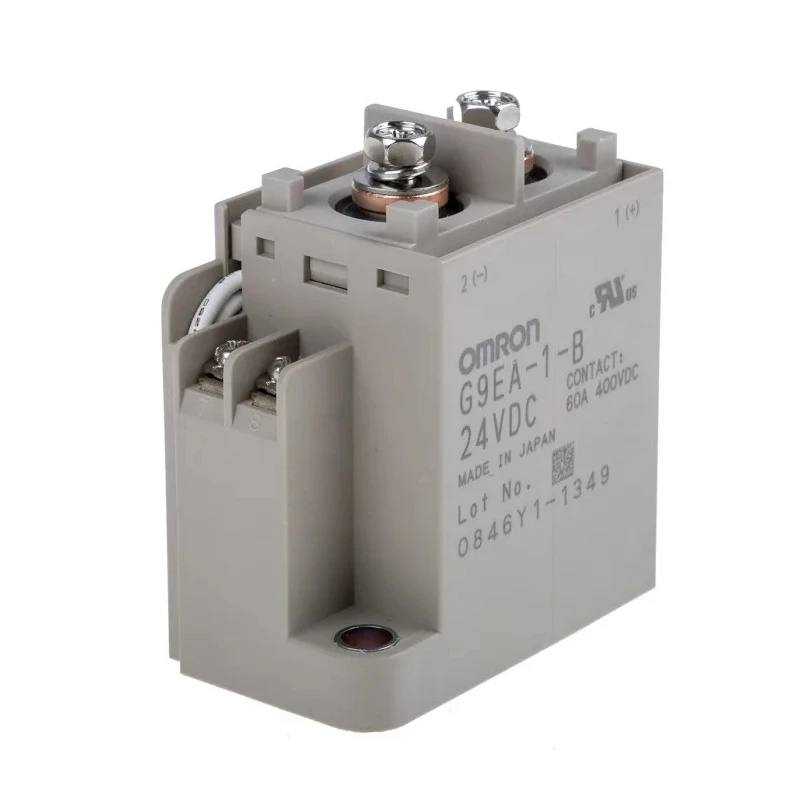

Omron Aratas Surface Power Relay 24V DC Coil 100A Switching Current SPST G9EA-1-B DC24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 67.2mm |
| Length | 73mm |
| Model | G9EA-1-B DC24 |
| Width | 36mm |
| Mount Type | Surface |
| Series | G9EA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 100A |
| Terminal type | Screw |
| Contact Resistance | 30mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 115.2Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 400V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 5W |
Key Features
- Capable of switching 400V AC and DC loads with 100A current capacity.
- Coil resistance of 115.2 ohms ensures stable coil operation.
- Features a screw terminal mount type for secure connections.
- Operates in temperature range from -40°C to 70°C for wide environmental compatibility.
- Designed with a surface mount type and compact dimensions for versatile installation.
- Low contact resistance of 30 milliohms guarantees efficient current flow.
- UL and CSA certified for safety and quality assurance.
- Gas-injected and hermetically sealed switching section provides noise reduction and load interruption capabilities.
Product Description
Omron G9EA-1-B DC24 Aratas Surface Power Relay combines advanced engineering with robust performance to handle demanding industrial applications. This non-latching relay features a 24V DC coil voltage and supports a high switching current of 100A, suited for both AC and DC loads up to 400V.
The relay is designed for surface mounting with screw terminals, allowing secure and reliable electrical connections. Its compact size (67.2 mm height, 73 mm length, 36 mm width) facilitates versatile integration in control panels and machinery.
The gas-injected hermetically sealed contact system not only reduces electrical noise but also ensures safe interruption of high-capacity DC currents up to 600A at 300VDC maximum. Coil resistance at 115.2 ohms supports efficient coil power consumption rated at 5W.
Operating reliably in harsh environments, the relay supports temperatures ranging from -40°C to 70°C, making it suitable for industrial, automation, and electrical control system applications. It complies with UL and CSA safety standards, assuring dependable and certified performance.
Capable of switching 400V AC and DC loads with 100A current capacity. Coil resistance of 115.2 ohms ensures stable coil operation. Features a screw terminal mount type for secure connections. Operates in temperature range from -40°C to 70°C for wide environmental compatibility.
Designed with a surface mount type and compact dimensions for versatile installation. Low contact resistance of 30 milliohms guarantees efficient current flow. UL and CSA certified for safety and quality assurance. Gas-injected and hermetically sealed switching section provides noise reduction and load interruption capabilities.
This high-performance power relay is ideal for industrial automation, electrical control systems, manufacturing equipment, and other applications requiring compact, efficient, and reliable switching of high DC and AC currents.
Explore more Power Relays and Omron products at EnvMart for your automation and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 100A.
The coil voltage for this relay is 24V DC.
It has a height of 67.2 mm, a length of 73 mm, and a width of 36 mm.
This unit features a surface mount type with screw terminals for secure connections.
The contact configuration is SPST (Single Pole Single Throw).
It operates within a temperature range of -40°C to 70°C.
The contact resistance is 30 milliohms, ensuring efficient current flow.
This relay can switch loads up to 400V for both AC and DC.
It is certified by UL and CSA, ensuring safety and quality assurance.
The coil resistance is 115.2 ohms.
The coil power consumption is rated at 5W.
It is suitable for industrial automation, electrical control systems, and manufacturing equipment.
