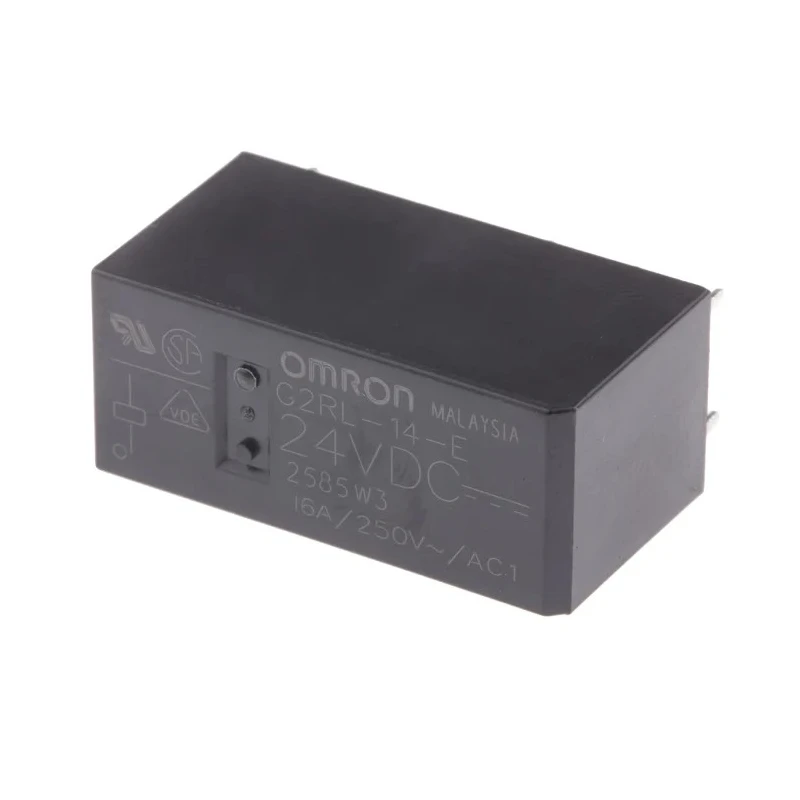

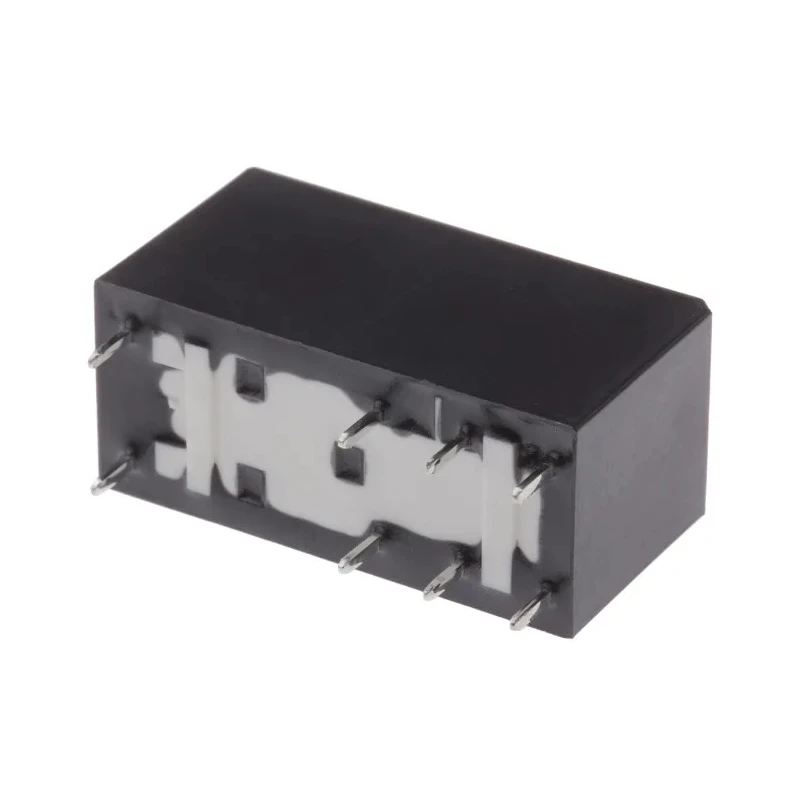

Omron PCB Power Relay SPDT 24V DC Coil 16A Switching Current G2RL-14-E DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-14-E DC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | IEC/EN 60079-15, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
Key Features
- The power relay has a SPDT contact configuration allowing versatile switching functions.
- It is designed for PCB mounting with solder-type terminals ensuring reliable installation.
- Operating temperature ranges from -40°C to 85°C for robust performance.
- The relay supports switching voltages up to 300V DC and 440V AC for diverse applications.
- Compact dimensions with 15.7mm height, 12.7mm width, and 29mm length optimize PCB layouts.
- Silver alloy contact material offers durability and low contact resistance of 100mΩ.
- Coil resistance is 1.4kΩ with a coil power consumption of 400mW ensuring low energy use.
- Meets IEC/EN 60079-15, RoHS, and VDE standards with UL recognition and CSA certification.
Product Description
Omron G2RL-14-E DC24 PCB Power Relay is a compact, durable relay designed for efficient switching in electrical and automation circuits. It operates with a 24V DC coil and supports a switching current up to 16A, making it suitable for controlling power loads in industrial, manufacturing, and HVAC systems.
The relay features a Single Pole Double Throw (SPDT) contact configuration and is optimized for Printed Circuit Board (PCB) mounting with solder terminals. Its small size, with dimensions 15.7mm (H) x 12.7mm (W) x 29mm (L), enables high-density installations on circuit boards.
Designed to operate within temperature ranges from -40°C to a maximum of 85°C, this relay provides reliable performance in various environmental conditions. The contact material is silver alloy, which ensures low contact resistance of 100mΩ and long operational life. Coil resistance is 1.4kΩ with an efficient coil power of 400mW.
This power relay supports switching voltages of up to 300V DC and 440V AC, covering a broad range of applications from general electrical load switching to signal conditioning. It complies with international standards including IEC/EN 60079-15, RoHS, and VDE, and holds UL recognition and CSA certification, underlining its safety and quality compliance.
The relay design includes a low profile height of 15.7mm and provides 10mm creepage and clearance distances, ensuring electrical safety and reducing the risk of short circuits. Its high tracking resistance (CTI > 250) further enhances its electrical endurance under harsh conditions.
The power relay has a SPDT contact configuration allowing versatile switching functions. It is designed for PCB mounting with solder-type terminals ensuring reliable installation. Operating temperature ranges from -40°C to 85°C for robust performance.
The relay supports switching voltages up to 300V DC and 440V AC for diverse applications. Compact dimensions with 15.7mm height, 12.7mm width, and 29mm length optimize PCB layouts. Silver alloy contact material offers durability and low contact resistance of 100mΩ.
Coil resistance is 1.4kΩ with a coil power consumption of 400mW ensuring low energy use. Meets IEC/EN 60079-15, RoHS, and VDE standards with UL recognition and CSA certification. The design provides 10mm creepage/clearance for enhanced electrical safety.
Tracking resistance exceeds CTI 250, improving reliability under high voltage stress.
This relay is ideal for use in industrial automation, control panels, manufacturing equipment, power management systems, and HVAC controls. Its robust construction and certification approvals make it suitable for demanding applications requiring reliable high-current switching. Browse EnvMart’s Electronics & Electricals categories for comprehensive Power Relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 16A, making it suitable for controlling power loads in various applications.
The relay has compact dimensions of 15.7mm in height, 12.7mm in width, and 29mm in length, optimizing PCB layouts for high-density installations.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile switching functions.
The relay operates effectively within a temperature range of -40°C to 85°C, ensuring reliable performance in various environmental conditions.
It supports switching voltages of up to 300V DC and 440V AC, making it suitable for diverse electrical applications.
The coil resistance is 1.4kΩ, which contributes to its efficient operation.
It is designed for PCB mounting and features solder-type terminals, ensuring reliable installation.
The coil power consumption is 400mW, which helps in reducing overall energy use.
The contact material is silver alloy, which provides low contact resistance of 100mΩ and enhances durability.
It complies with IEC/EN 60079-15, RoHS, and VDE standards, and has UL recognition and CSA certification, ensuring safety and quality compliance.
The design includes a creepage and clearance distance of 10mm, which enhances electrical safety and reduces the risk of short circuits.
This relay is suitable for applications in industrial automation, control panels, manufacturing equipment, power management systems, and HVAC controls.
