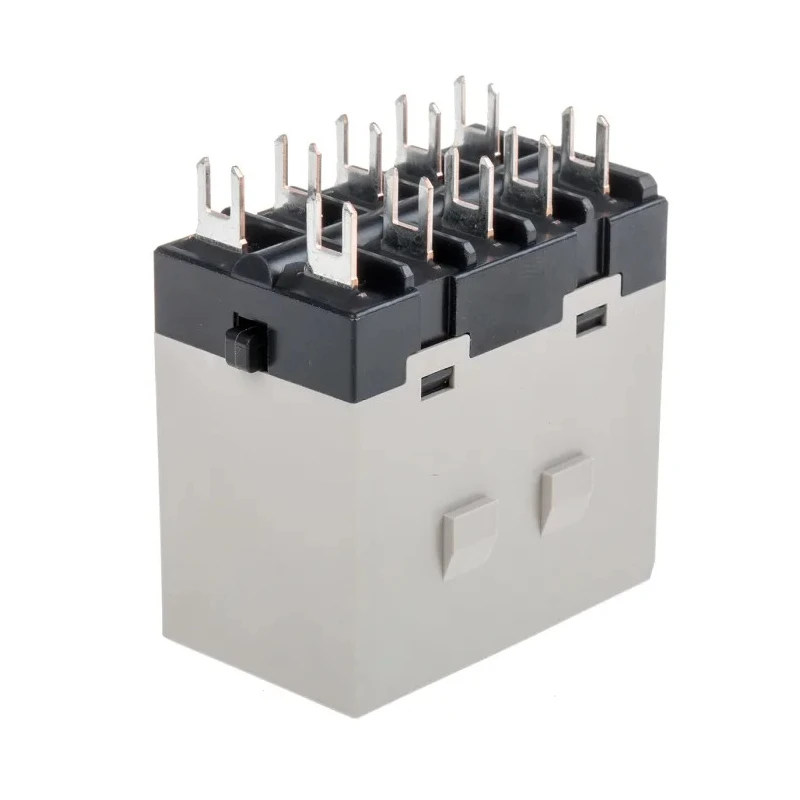

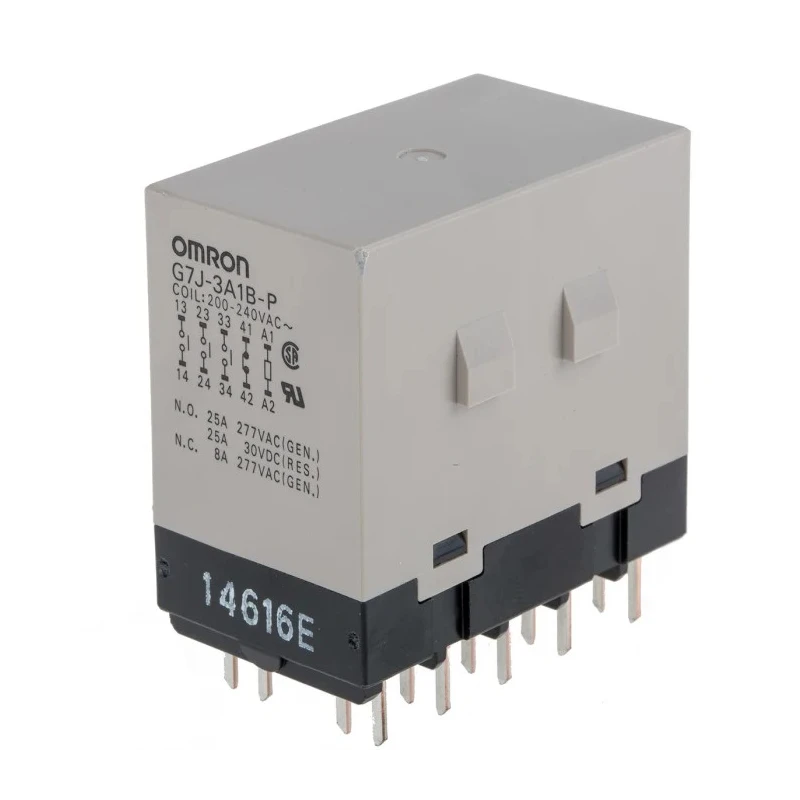

Omron PCB Power Relay 240V AC Coil Voltage 25A Switching Current 3PST-NO SPST-NC G7J-3A1B-P 200/240VAC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 51mm |
| Length | 51.5mm |
| Model | G7J-3A1B-P 200/240VAC |
| Width | 34.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G7J |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PST-NO, SPST-NC |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | PCB |
| Contact Resistance | 100mΩ |
| Standards/Approvals | UL, CSA |
| Coil Voltage | 240V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V |
Key Features
- Operates with a 240V AC coil consuming 2.6VA for efficient actuation.
- Features 3PST normally open and SPST normally closed contact configurations.
- Silver alloy contacts ensure durable high-current switching with low contact resistance.
- Supports switching voltages of up to 250V AC and 125V DC for versatile use.
- Mounts securely on printed circuit boards with PCB terminal type for easy integration.
- Rated for operation between -25°C and 60°C suitable for typical industrial environments.
- UL and CSA approvals guarantee compliance with safety standards.
- Ideal for motor starters, contactors, HVAC control systems, and power distribution modules in machinery.
Product Description
Omron G7J-3A1B-P 200/240VAC is a high-performance PCB Power Relay designed for industrial applications requiring reliable switching of AC and DC circuits. Featuring a 240V AC coil voltage and the ability to switch currents up to 25 amperes, this relay offers robust load handling suited for control panels, motor starter circuits, HVAC systems, and automation relay boards.
This compact electromechanical relay supports a contact configuration of three-pole normally open (3PST-NO) and single-pole normally closed (SPST-NC), providing flexible circuit arrangements. It employs silver alloy contacts that maintain low resistance (100mΩ) and minimize degradation, ensuring longevity and consistent switching performance.
The relay is built for through-hole PCB mounting with PCB terminals, simplifying integration into printed circuit boards and enabling dependable mechanical and electrical connections. Its operational temperature range from -25°C to 60°C accommodates various industrial ambient conditions, while UL and CSA certifications confirm conformity to North American safety standards.
With switching capabilities rated at 250V AC and 125V DC, this relay can be used with both AC and DC power supplies across diverse industrial environments. The compact dimensions of 51.5mm length, 34.5mm width, and 51mm height optimize space usage on PCBs.
Operates at 240V AC coil voltage with 2.6VA power consumption. Contact configuration supports 3PST normally open and SPST normally closed contacts. Durable silver alloy contacts for high-current switching. Switching current capacity of 25 amperes.
PCB mounting with through-hole terminals for easy soldering and wiring. Operating temperature range from -25°C to 60°C suits industrial applications. UL and CSA approved for safety compliance. Compact size enhances PCB integration with dimensions: 51.5 x 34.5 x 51 mm.
Designed for use in motor control, HVAC, industrial automation, and power distribution modules.
Omron's G7J series power relay combines reliability and flexibility for demanding industrial control tasks. Explore EnvMart's extensive category of Power Relays for compatible components and accessories to enhance your automation and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 240V AC.
This model can handle a maximum switching current of 25 amperes.
The relay features a contact configuration of three-pole normally open (3PST-NO) and single-pole normally closed (SPST-NC).
The operational temperature range for this relay is from -25°C to 60°C.
This relay supports PCB mounting with through-hole terminals for easy integration into printed circuit boards.
The contact material used in this relay is silver alloy, which helps maintain low contact resistance.
The dimensions of this power relay are 51.5mm in length, 34.5mm in width, and 51mm in height.
This relay can switch voltages up to 250V AC and 125V DC.
This relay has UL and CSA certifications, ensuring compliance with safety standards.
The contact resistance of this relay is 100mΩ, which helps minimize degradation during operation.
This relay is typically used in motor starters, contactors, HVAC control systems, and power distribution modules in machinery.
The power consumption of the coil is 2.6VA.
