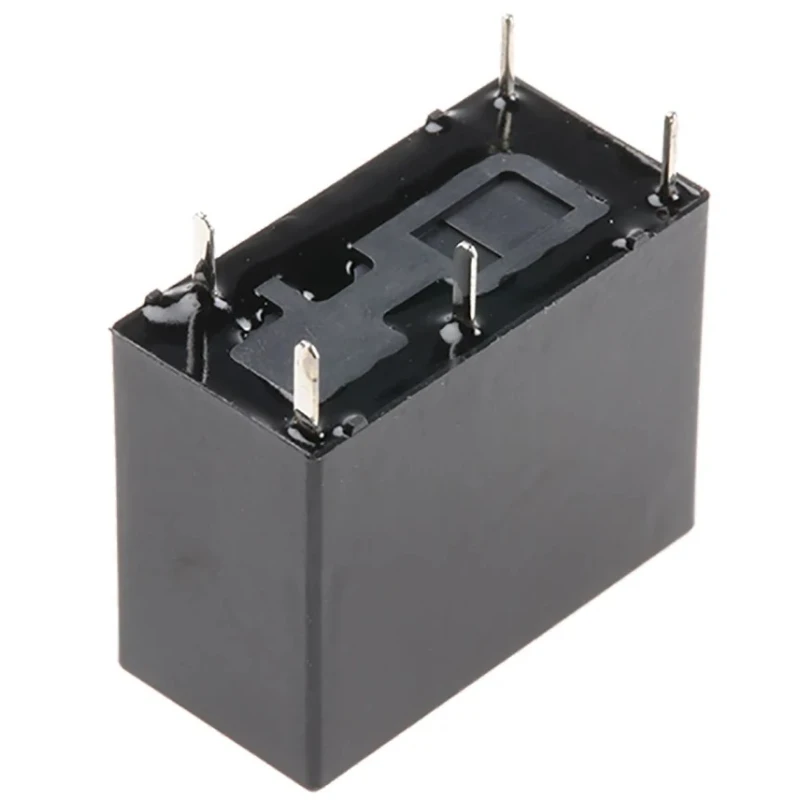

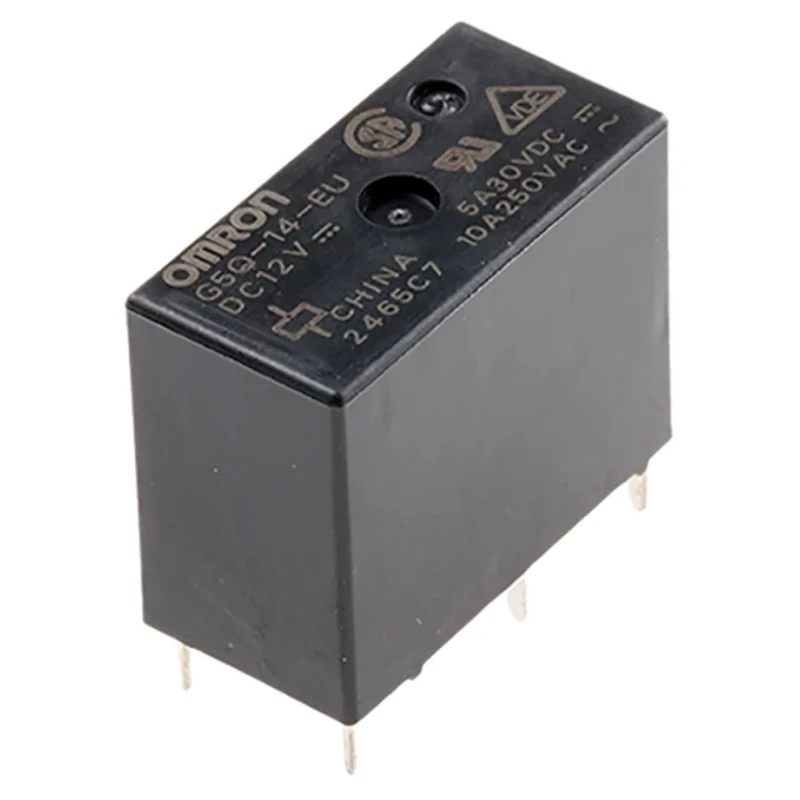

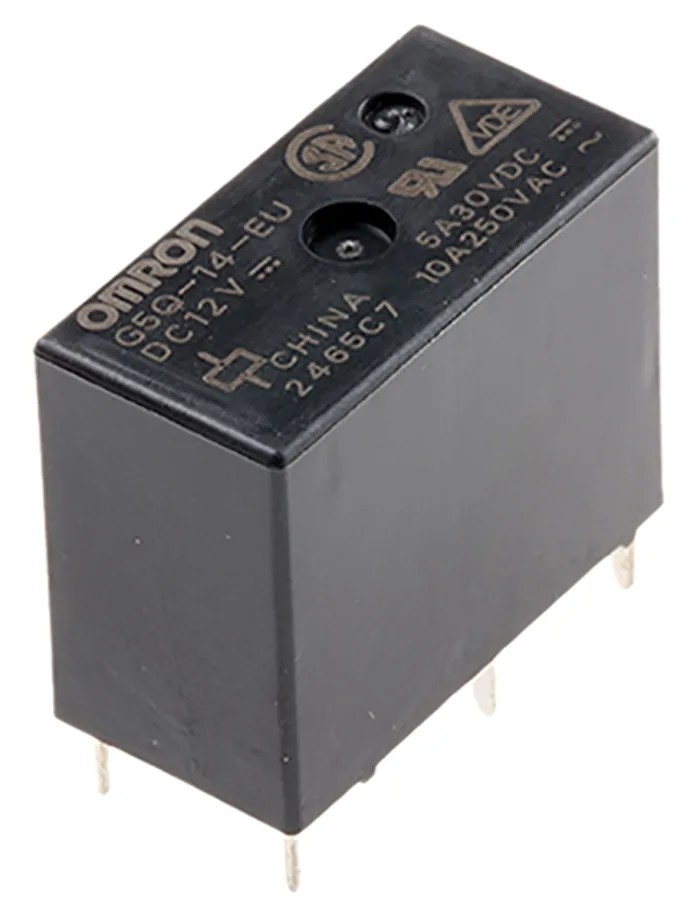

Omron Power Relay SPDT, 12V DC Coil Voltage, 10A Switching Current, PCB Mount G5Q-14-EU DC12 (TY)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 16.2mm |
| Length | 20.3mm |
| Model | G5Q-14-EU DC12 (TY) |
| Width | 10.3mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5Q |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS, IEC, EN, CE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Compact design with high isolation between coil and contacts.
- Capable of switching 10 ampere current with SPDT contact configuration.
- Operates at coil voltage of 12V DC with low coil power consumption of 400mW.
- Suitable for a wide operating temperature range from -40°C to 85°C.
- Constructed with silver alloy contact material for high conductivity and durability.
- Designed with UL, RoHS, IEC, EN, and CE approvals for quality assurance.
- Mounts easily on printed circuit boards using solder terminals.
- Ideal for HVAC and automation industry applications requiring withstand impulse voltage of 8,000V.
Product Description
Omron G5Q-14-EU DC12 (TY) Power Relay is a robust and compact single pole double throw (SPDT) relay designed with a 12V DC coil voltage. It supports a switching current up to 10 amperes and can handle a switching AC voltage up to 400V, making it suitable for demanding power relay applications on printed circuit boards. With a coil power consumption of just 400mW and coil resistance of 360Ω, it offers efficient operation with low energy loss.
The relay features high isolation between coil and contacts and provides excellent tracking resistance with a comparative tracking index (CTI) greater than 250. Its contact material is made of durable silver alloy ensuring reliable electrical conduction and longevity. The compact dimensions - 20.3mm length, 16.2mm height, and 10.3mm width - allow easy integration into various device layouts.
Operating temperature ranges from -40°C to 85°C, making the relay viable in a wide spectrum of industrial environments. It meets multiple international standards including UL, RoHS, IEC, EN, and CE approvals, reflecting adherence to quality and safety requirements. This relay is ideal for HVAC systems, industrial automation control circuits, and any PCB-based switching solutions requiring dependable performance with impulse voltage tolerance up to 8,000 volts.
Compact single pole double throw design for efficient PCB mounting. Rated for 12V DC coil voltage and 10A switching current capacity. Low coil power consumption with coil resistance of 360 ohms. Durable silver alloy contacts ensuring long lifespan and stable conductivity.
Wide operating temperature range for flexible application. Compliant with UL, RoHS, IEC, EN, and CE standards for safety and environmental requirements. High impulse voltage tolerance enhancing reliability in industrial environments.
This Omron power relay is an essential component in electrical, automation, and HVAC applications requiring high switching performance with reliable isolation. Explore more Power Relays and related products on EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC.
It can handle a maximum switching current of 10 amperes.
The dimensions are 20.3mm in length, 16.2mm in height, and 10.3mm in width.
This relay features a single pole double throw (SPDT) contact configuration.
The coil power consumption is 400mW.
It operates within a temperature range of -40°C to 85°C.
The contacts are made of silver alloy, ensuring good conductivity.
It is compliant with UL, RoHS, IEC, EN, and CE standards.
This model is designed for PCB mounting using solder terminals.
The maximum switching AC voltage is 400V.
The coil resistance is 360 ohms.
It is suitable for HVAC systems and industrial automation control circuits.
