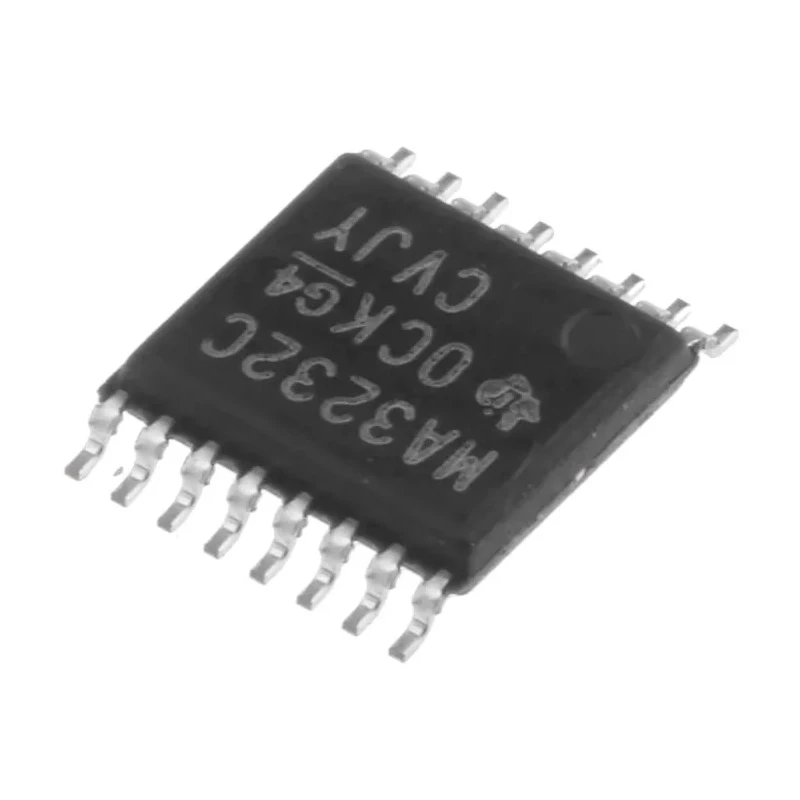

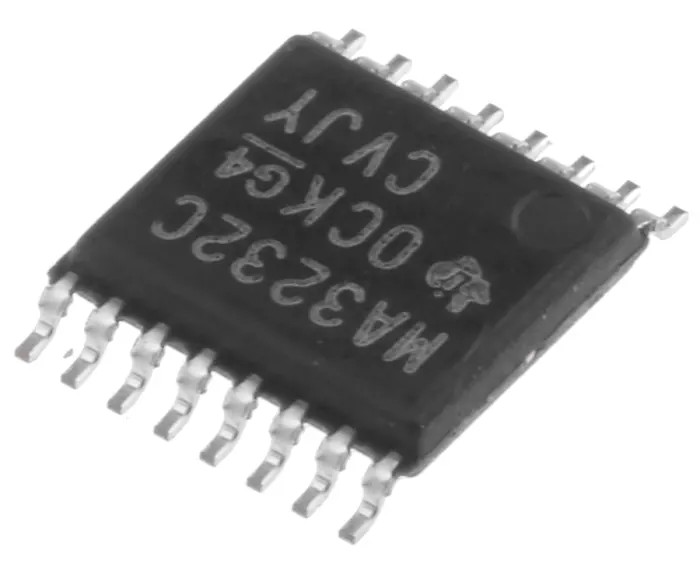

Texas Instruments 2-Channel RS-232 Line Transceiver, Dual Channel Driver & Receiver, 3-5.5V Supply, TSSOP 16-Pin MAX3232CPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | MAX3232CPW |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | MAX3232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0°C |
| IC Type | Dual Channel Transceiver |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 300ns |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Dual channel transceiver supports RS-232 standard for voltage level translation.
- Operates with single supply voltage ranging from 3V to 5.5V.
- 16-pin TSSOP surface mount package enables compact PCB designs.
- Maximum propagation delay of 300ns supports communication speeds up to 1 Mbps.
- Incorporates ESD protection up to ±15 kV Human-Body Model for enhanced durability.
- Operating temperature range from 0°C to 70°C suitable for commercial applications.
- Low supply current of 1mA minimizes power consumption in circuits.
- Pin count of 16 provides necessary interface for dual drivers and receivers.
Product Description
Texas Instruments MAX3232CPW is a dual channel RS-232 line transceiver designed to meet or exceed the requirements of the TIA/EIA-232-F and ITU V.28 standards. It combines two drivers and two receivers capable of driving RS-232 signal levels from a single 3V to 5.5V supply, ideal for serial data communications.
This transceiver is housed in a compact 16-pin TSSOP surface mount package measuring 5.1 mm in length, 4.5 mm in width, and 1.2 mm in height, fitting well in space-constrained electronic designs. The device features a maximum propagation delay time of 300 nanoseconds, enabling data rates up to 1 Mbps.
Designed for commercial temperature range of 0°C to 70°C, MAX3232CPW offers reliable performance in typical environmental conditions. Its low supply current of 1 mA contributes to efficient power usage in battery-powered and embedded systems.
Robust electrostatic discharge (ESD) protection up to ±15 kV Human-Body Model and ±8 kV contact discharge ensures durability and system resilience against static charges. The device’s logic function includes both driver and receiver, making it an ideal interface IC for RS-232 serial communications.
This product is intended for applications including industrial automation, communication equipment, and embedded systems requiring reliable RS-232 interface compatibility. Dual channel transceiver supporting RS-232 voltage levels.
Single supply operation from 3V to 5.5V. Compact 16-pin TSSOP surface mount package. Maximum propagation delay of 300 ns for high-speed communication. Operating temperature range of 0°C to 70°C. Low supply current of 1 mA for power efficiency.
ESD protection up to ±15 kV Human-Body Model. Suitable for industrial and embedded system applications. Explore more electronics components and interface ICs in the Texas Instruments product range at EnvMart.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a single supply voltage ranging from 3V to 5.5V.
The maximum propagation delay time is 300 nanoseconds, allowing for communication speeds up to 1 Mbps.
It measures 5.1 mm in length, 4.5 mm in width, and 1.2 mm in height.
The operating temperature range is from 0°C to 70°C, suitable for commercial applications.
It is housed in a compact 16-pin TSSOP surface mount package.
The supply current is 1 mA, which helps minimize power consumption.
It incorporates ESD protection up to ±15 kV Human-Body Model and ±8 kV contact discharge.
The maximum high-level output current is -1 mA.
