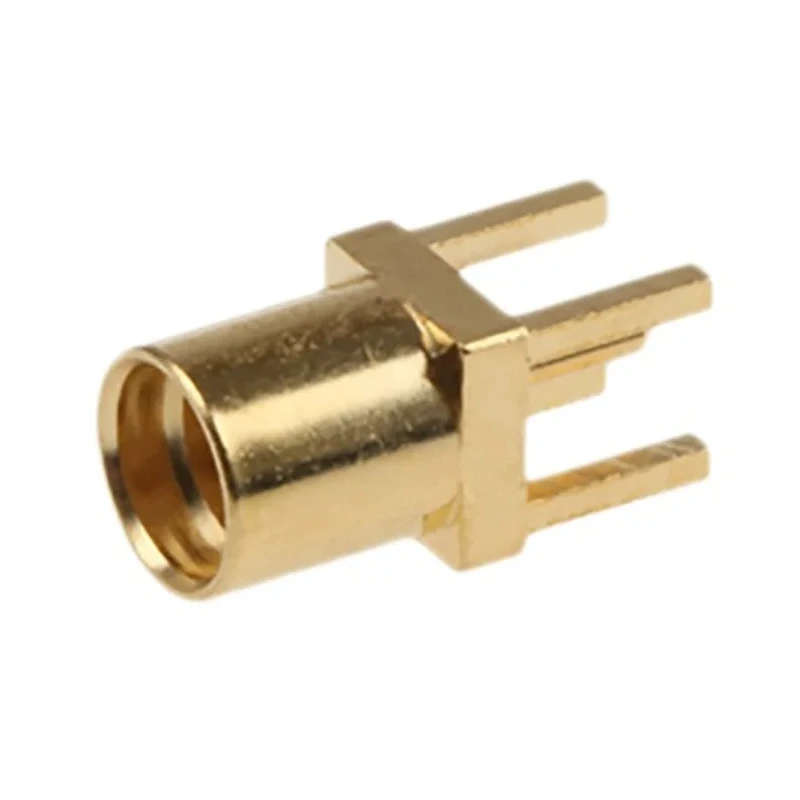

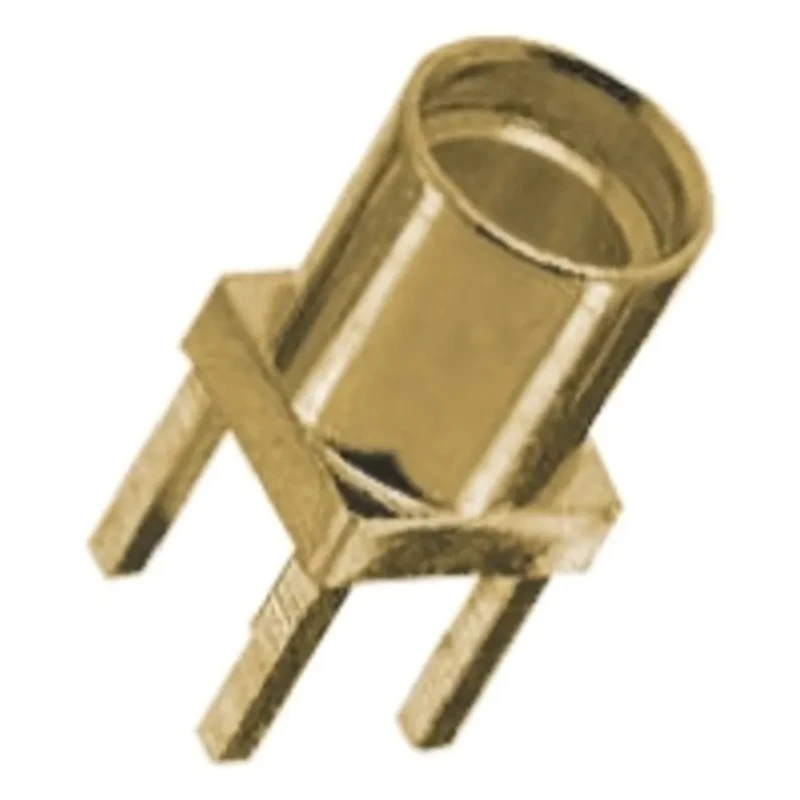

RS PRO Coaxial Connector PCB Female MCX 50 Ω Straight Body Solder 656-0132
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Micro Miniature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 656-0132 |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Micro miniature size supports compact PCB designs.
- Connector features gold-plated body and contacts for optimal conductivity.
- Operates efficiently up to 6 GHz frequency range.
- Temperature range from -55°C to 165°C ensures durability in varied environments.
- Constructed with beryllium copper contacts and gold plating for enhanced performance.
- Designed with snap-on MMCX series mechanism allowing 360° rotation.
- Suitable for high-frequency electronic and communications applications.
- Manufactured in Taiwan, Province Of China with RS PRO quality standards.
Product Description
RS PRO 656-0132 Coaxial Connector PCB Female MCX is a micro miniature connector designed for printed circuit board applications providing 50 Ω impedance and straight orientation. Featuring a gold-plated body and contacts with beryllium copper construction, this connector supports solder termination and is part of the MMCX series known for its snap-on mechanism allowing 360-degree rotation, enabling flexible PCB layouts.
Operating frequency extends up to 6 GHz, making this connector suitable for high-frequency signal transmission in electronics, telecommunications, and related fields. It withstands a wide temperature range from -55°C to 165°C, ensuring reliable performance in harsh environments.
The MMCX connectors are known for low RF leakage performance and robust mechanical characteristics, making them ideal for demanding industrial and laboratory applications. With a normal polarity and micro miniature size, this product complements advanced PCB designs where space is critical.
Micro miniature size for compact PCB design integration. Gold plated body and contact surfaces provide corrosion resistance and low electrical resistance. Operational frequency up to 6 GHz suits RF and high-speed data applications.
Wide temperature range supports diverse industrial use cases. Beryllium copper contacts enhance mechanical and electrical durability. Snap-on MMCX mechanism offers flexibility with 360-degree rotation capability. Termination by solder facilitates secure PCB mounting.
Manufactured in Taiwan, Province Of China ensuring quality production standards.
This RS PRO Coaxial Connector is widely used in industrial, telecommunications, laboratory, and electronics manufacturing settings requiring precision RF board connections. Compatible with a range of MMCX series connectors, it provides durable, low-leakage, and efficient performance for signal integrity.
Explore more RS PRO connectors and related components in the Electronics Components category on EnvMart for comprehensive solutions tailored to your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently up to a frequency range of 6 GHz, making it suitable for high-frequency signal transmission.
The connector provides a 50 Ω impedance, which is standard for many RF applications.
It features beryllium copper contacts and a gold-plated body, which enhances conductivity and corrosion resistance.
The connector can operate within a temperature range of -55°C to 165°C, ensuring reliable performance in various environments.
The termination type for this connector is solder, facilitating secure mounting on printed circuit boards.
This is an MCX type coaxial connector, specifically designed for printed circuit board applications with a straight orientation.
It is classified as a micro miniature size, which supports compact PCB design integration.
The connector features a female contact gender, suitable for various applications requiring female connectors.
Yes, it is designed with a snap-on MMCX series mechanism that allows for 360° rotation, providing flexibility in PCB layouts.
This RS PRO coaxial connector is manufactured in Taiwan, Province Of China, adhering to RS PRO quality standards.
It is suitable for high-frequency electronic and communications applications, including industrial, telecommunications, and laboratory settings.
