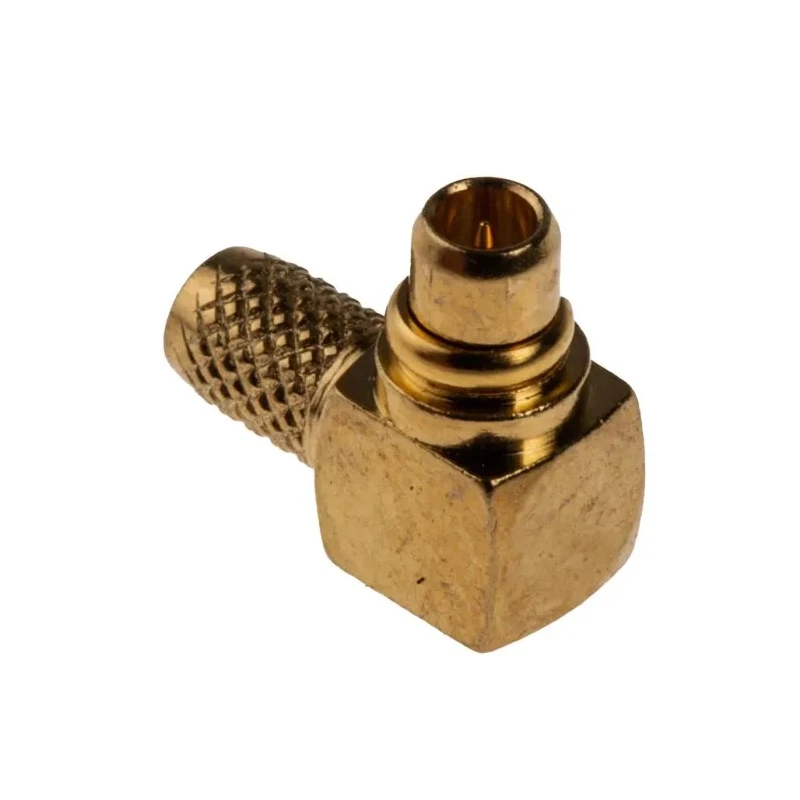

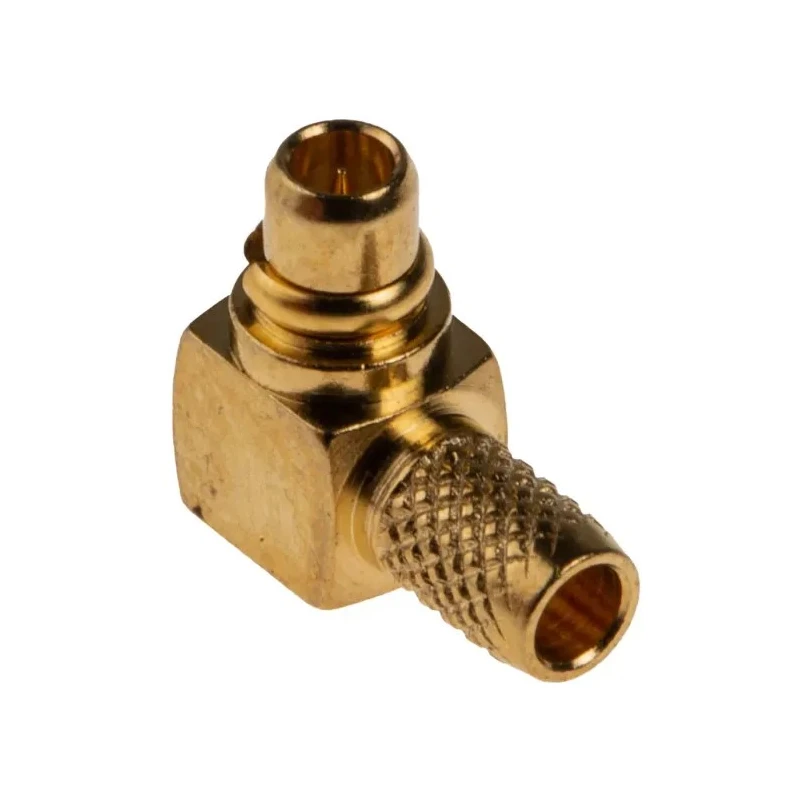

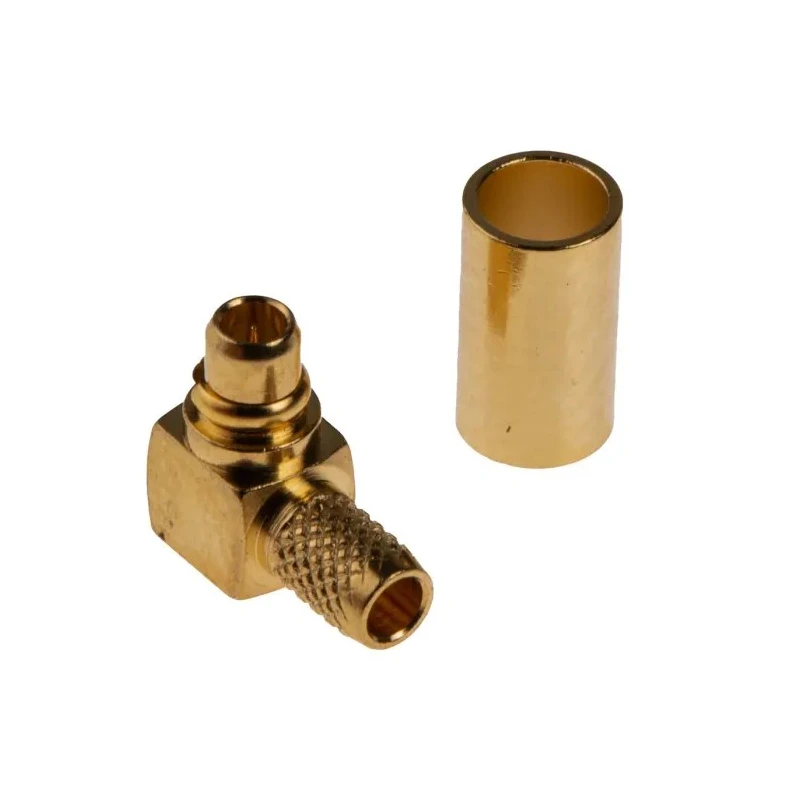

RS PRO 50 Ω Coaxial Connector Cable Male MCX, Right Angle Body, Micro Miniature, Gold Plated Brass Contacts 656-0069
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Micro Miniature |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 656-0069 |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG-174U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
| Telegartner, Plug Cable Mount TNC Connector, 50Ω, Right Angle BodyBrand | Telegartner |
| RS PRO Coaxial Connector Cable Female MCX, 50 Ω, Straight Body CrimpBrand | RS PRO |
Key Features
- This micro-miniature connector features a gold-plated brass body and contacts for optimum signal transmission.
- It supports operation frequencies up to 6 GHz, suitable for high-frequency RF applications.
- The connector uses a snap-on mechanism enabling 360° rotation for flexible PCB layout arrangements.
- Termination is by crimp ensuring safe and secure cable connections.
- Designed for use with RG-174U and RG-178 coaxial cable types for data and wireless communication.
- Operates reliably from -55°C up to 165°C ambient temperatures.
- Insulation resistance is rated at 5,000 mΩ for one minute, ensuring effective electrical isolation.
- The connector meets electrostatic discharge protection standards (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007).
Product Description
RS PRO 656-0069 Coaxial Connector Cable Male MCX is a high-quality right-angle coaxial connector designed for data communications and wireless RF applications requiring 50 Ω impedance. The connector features a micro-miniature form factor with a gold-plated brass body and contacts that ensure superior electrical conductivity and signal integrity.
Its snap-on mechanism allows full 360° rotation, providing excellent flexibility in printed circuit board layouts. The connector is terminated by a crimp process, guaranteeing mechanically robust and electrically secure cable attachment compatible with RG-174U and RG-178 coaxial cables.
Operating reliably within a frequency range from DC to 6 GHz, this connector is suitable for high-frequency radio communication systems. It is also rated for a wide temperature range from -55°C to 165°C, enabling usage in various demanding industrial and electronic environments.
Insulation resistance testing confirms the connector's ability to maintain electrical isolation with ratings of 5,000 mΩ for at least one minute. Additionally, it complies with electrostatic discharge prevention standards (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007), reducing potential damage to connected equipment.
This right-angle male MCX connector provides a durable and flexible solution for RF cable assembly. Gold plating on brass components ensures enhanced corrosion resistance and electrical performance. Compatible with RG-174U and RG-178 cables commonly used in telecommunications and networking.
Ideally suited for industrial, telecommunications, manufacturing, and laboratory applications.
The product origin is Taiwan, Province Of China, reflecting quality manufacturing standards within the electronics industry. RS PRO brand products are widely trusted for quality and reliability across global engineering and industrial sectors.
Explore further RS PRO electronics components and Coaxial Connectors in the EnvMart catalog to find complementary products for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector supports operation frequencies up to 6 GHz, making it suitable for high-frequency RF applications.
It operates reliably within a temperature range from -55°C to 165°C, allowing for use in various demanding environments.
This connector is designed for use with RG-174U and RG-178 coaxial cable types, which are commonly utilized in data and wireless communication applications.
Termination is achieved by crimping, ensuring a mechanically robust and electrically secure connection.
The insulation resistance is rated at 5,000 mΩ for one minute, ensuring effective electrical isolation.
Both the body and contacts of this connector are made of brass, with gold plating to enhance corrosion resistance and electrical performance.
This model features a right-angle orientation, providing flexibility in printed circuit board layouts.
The connector is classified as micro-miniature, but specific dimensions are not provided in the product details.
It meets electrostatic discharge protection standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, reducing potential damage to connected equipment.
This connector has a male gender for both the contact and connector, suitable for connecting to female counterparts.
The product is manufactured in Taiwan, reflecting quality manufacturing standards within the electronics industry.
This model is ideally suited for industrial, telecommunications, manufacturing, and laboratory applications, particularly in data communications and wireless RF systems.
