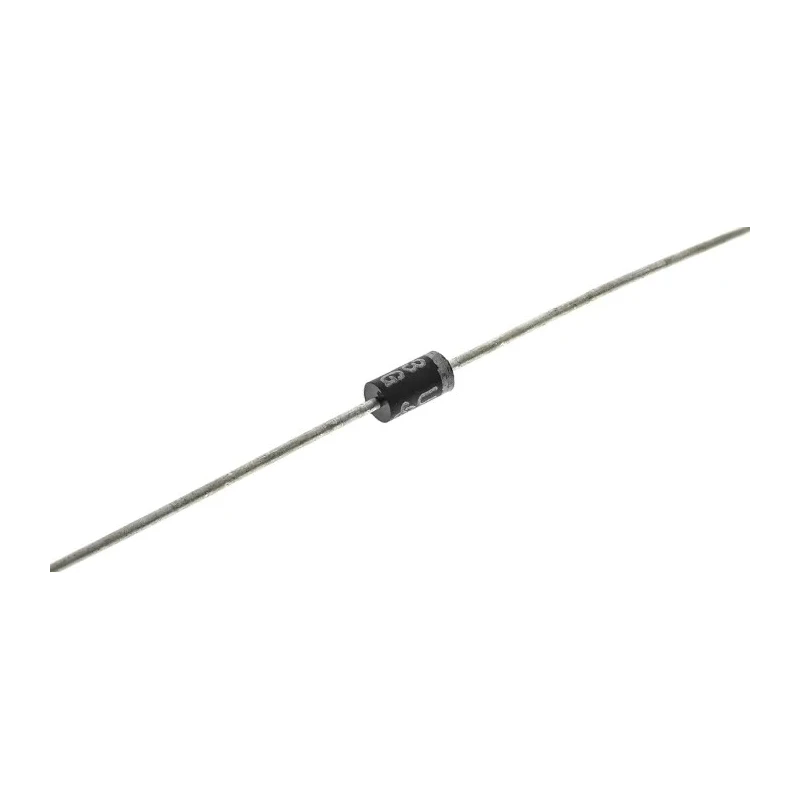

onsemi Single 5.6 V 5 W Zener Diode Through Hole 2-Pin DO-15 1N5339BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5339BRLG |
| Mount Type | Through Hole |
| Series | 1N5339B |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 220mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1Ω |
| onsemi 1, 5.6 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand | onsemi |
| 5.6V Zener diode,1N5339B 5WBrand | ON Semiconductor |
Key Features
- Nominal Zener voltage of 5.6 V ensuring stable voltage regulation.
- Maximum power dissipation of 5 W for handling surge currents.
- Through hole mount type with axial leads for easy PCB insertion.
- Test current rating of 220 mA provides performance benchmarks.
- Operating temperature range from -65°C to 200°C for versatile applications.
- Maximum reverse leakage current is low at 1 µA for efficient operation.
- Package dimensions ISO standard DO-15 with length 8.89 mm and height 3.68 mm.
- Designed using silicon-oxide passivated junctions for enhanced durability.
Product Description
onsemi 1N5339BRLG Single 5.6 V 5 W Zener Diode is a voltage regulator diode housed in a through hole 2-pin DO-15 axial lead package. It is designed to provide reliable and precise voltage regulation in various electronic circuits. This diode features a nominal Zener voltage of 5.6 V and can dissipate up to 5 W of power, making it suitable for industrial, power management, consumer electronics, and portable device applications.
The device operates over a wide temperature range from -65°C to 200°C, allowing use in demanding environments. Its test current rating is 220 mA, and it offers a maximum Zener impedance of 1 Ω. The diode construction utilizes silicon-oxide passivated junctions which offer tight voltage limits and excellent operating characteristics. The axial lead package is molded with thermosetting plastic providing corrosion resistance and mechanical protection.
The compact DO-15 package measures 8.89 mm in length and 3.68 mm in height, facilitating easy through hole mounting on printed circuit boards. This diode has a maximum reverse leakage current of only 1 µA, ensuring efficient and reliable operation in voltage regulation tasks. It is designed to withstand surge currents up to specific ratings as required in various protective electronic circuits.
Nominal Zener voltage of 5.6 V ensures consistent voltage regulation. Maximum power dissipation rating of 5 W supports handling of surge energy. Wide operating temperature from -65°C to 200°C for robustness. Axial leaded through hole DO-15 package allows easy soldering and mounting.
Low maximum reverse leakage current of 1 µA for efficient operation. Corrosion resistant molded thermosetting plastic package. Silicon-oxide passivated junction for improved reliability and performance. Applications include industrial electronics, power management, consumer electronics, and portable devices.
Compact dimensions 8.89 mm length and 3.68 mm height enable space efficient designs. Offers surge current tolerance beneficial in protective circuitry.
This diode is part of the ON Semiconductor 1N53 series, known for its superior voltage regulation and environmental protection features. Its robust design ensures high reliability in demanding electrical and industrial environments. The product is new and manufactured according to the highest standards.
Explore more semiconductor and electronic components on EnvMart to meet your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 5.6 V, ensuring stable voltage regulation in electronic circuits.
This model has a maximum power dissipation of 5 W, allowing it to handle surge currents effectively.
It operates over a wide temperature range from -65°C to 200°C, making it suitable for various demanding applications.
The test current rating for this diode is 220 mA, which provides performance benchmarks for its operation.
The DO-15 package measures 8.89 mm in length and 3.68 mm in height, facilitating easy through hole mounting.
The maximum reverse leakage current is low at 1 µA, ensuring efficient operation in voltage regulation tasks.
This model uses a through hole mount type with axial leads, which simplifies PCB insertion and soldering.
The maximum Zener impedance is 1 Ω, which contributes to its effective voltage regulation capabilities.
This Zener diode is suitable for industrial electronics, power management, consumer electronics, and portable device applications.
It is designed using silicon-oxide passivated junctions, which offer tight voltage limits and excellent operating characteristics.
This diode has a pin count of 2, which is standard for its through hole mounting configuration.
This model is part of the ON Semiconductor 1N53 series, known for its superior voltage regulation features.
