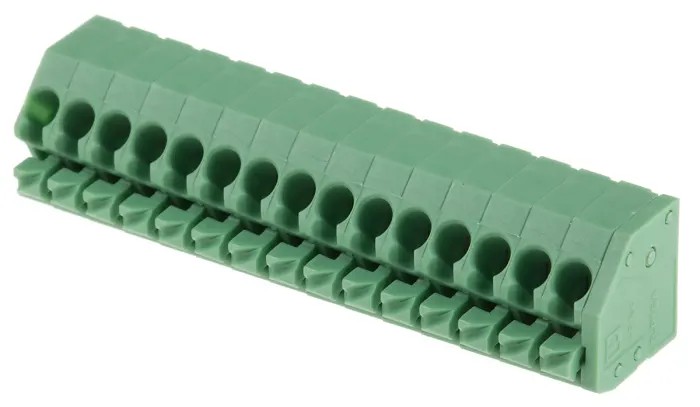

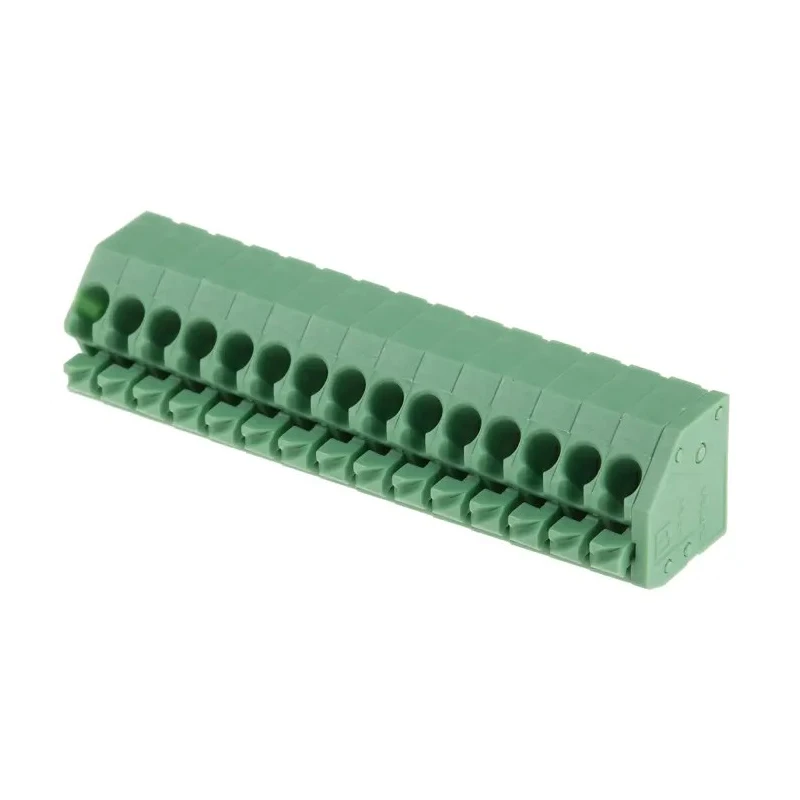

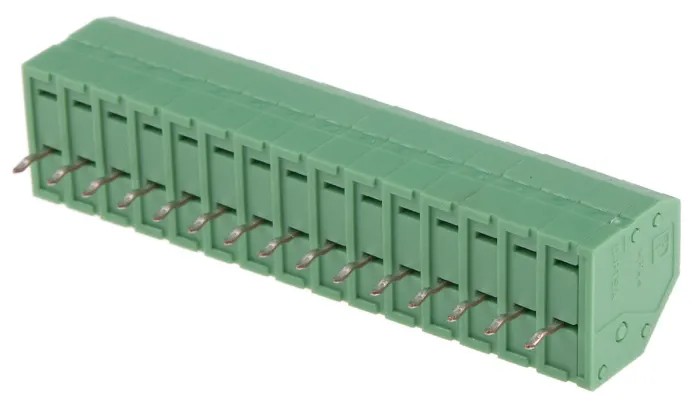

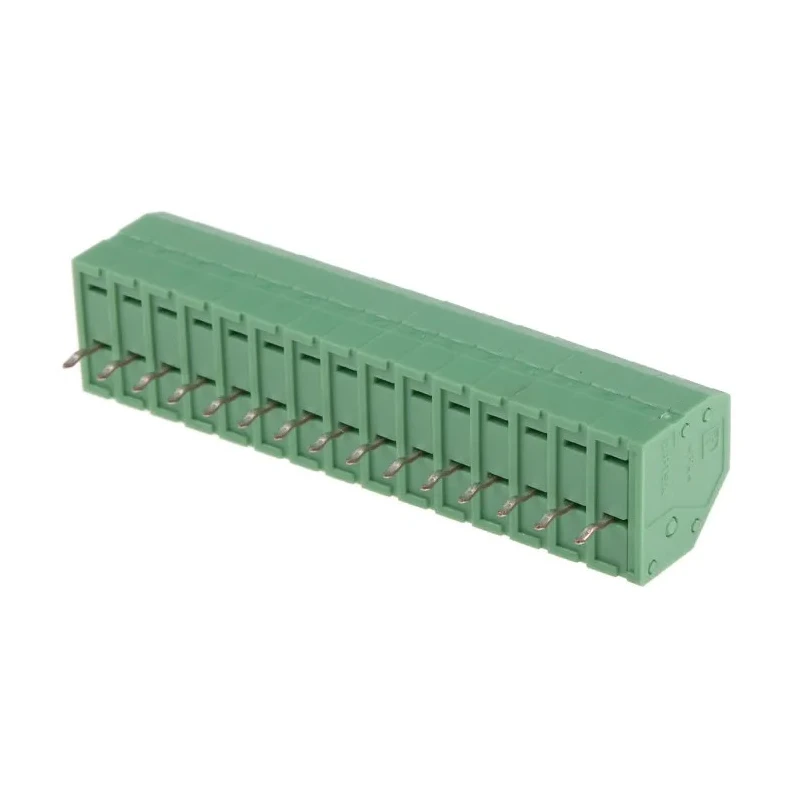

Phoenix Contact PTSA 1.5/15-3.5-F Series 45° PCB Terminal Block, 15 Contacts, 3.5 mm Pitch, 1 Row 1985098
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | Phoenix Contact |
| Orientation | 45° |
| Current | 8A |
| Model | 1985098 |
| Housing Material | Polyamide |
| Series | PTSA 1.5/15-3.5-F |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 15 |
Key Features
- Features a push-in spring connection system for secure and fast wiring.
- Supports a current rating of 8 A at 200 V voltage.
- Constructed with durable polyamide housing material for enhanced insulation.
- Compact 3.5 mm pitch ideal for dense PCB layouts.
- Suitable for industrial and professional-grade electronic assemblies.
- Single row design with 15 connection points for versatile applications.
- Angled terminal configuration at 45° for optimized PCB mounting.
- Compliant with UL, CUL, and VDE approvals ensuring standard safety.
Product Description
Phoenix Contact 1985098 PTSA 1.5/15-3.5-F Series 45° PCB Terminal Block is engineered for precision and reliability in electronic component connections. It features a 3.5 mm pitch and a single-row, angled 45° orientation, providing efficient space utilization on printed circuit boards.
This terminal block supports a continuous current rating of 8 A with a voltage rating of 200 V, making it suitable for various industrial and electronic applications requiring dependable electrical connections.
The housing is made from high-quality polyamide material, ensuring robustness and excellent insulation properties. The push-in spring connection technology offers vibration-resistant wiring and facilitates quick installation without the need for tools.
This product is designed to meet professional standards, with certifications including UL, CUL, and VDE, allowing safe usage in demanding environments. The terminal block's layout with 15 contacts in a single row supports multiple connections, suitable for complex PCB designs.
Push-in spring connection ensures fast and secure wiring. Durable polyamide housing provides excellent insulation. Compact 3.5 mm pitch supports high-density PCB designs. Rated for 8 A current and 200 V voltage applications.
45° angled orientation facilitates optimized PCB mounting. Certified for safety and reliability with UL, CUL, and VDE approvals. Single-row terminal block with 15 contacts for versatile use.
This terminal block is widely used in industrial automation, electronic manufacturing, and control systems, ensuring strong and reliable electrical connections. It is an essential component for designers and engineers focusing on compact and stable PCB connection solutions.
Explore more electronics components and connectors on EnvMart to complement your industrial and professional projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a continuous current rating of 8 A and a voltage rating of 200 V.
The pitch size of this terminal block is 3.5 mm, making it suitable for high-density PCB layouts.
It features 15 contacts in a single row configuration, allowing for multiple connections.
The housing is constructed from polyamide, which provides excellent insulation properties.
This model has a 45° angled orientation, which facilitates optimized PCB mounting.
Yes, it is compliant with UL, CUL, and VDE approvals, ensuring safety in demanding environments.
It features a push-in spring connection system, which allows for secure and fast wiring without the need for tools.
The terminal block is manufactured in China.
It is suitable for various industrial and electronic applications, particularly in automation and control systems.
The terminal block has a compact design with a 3.5 mm pitch, but specific dimensions are not provided in the data.
The 45° angled configuration allows for optimized PCB mounting, improving space utilization and accessibility.
This terminal block is part of the PTSA 1.5/15-3.5-F series.
