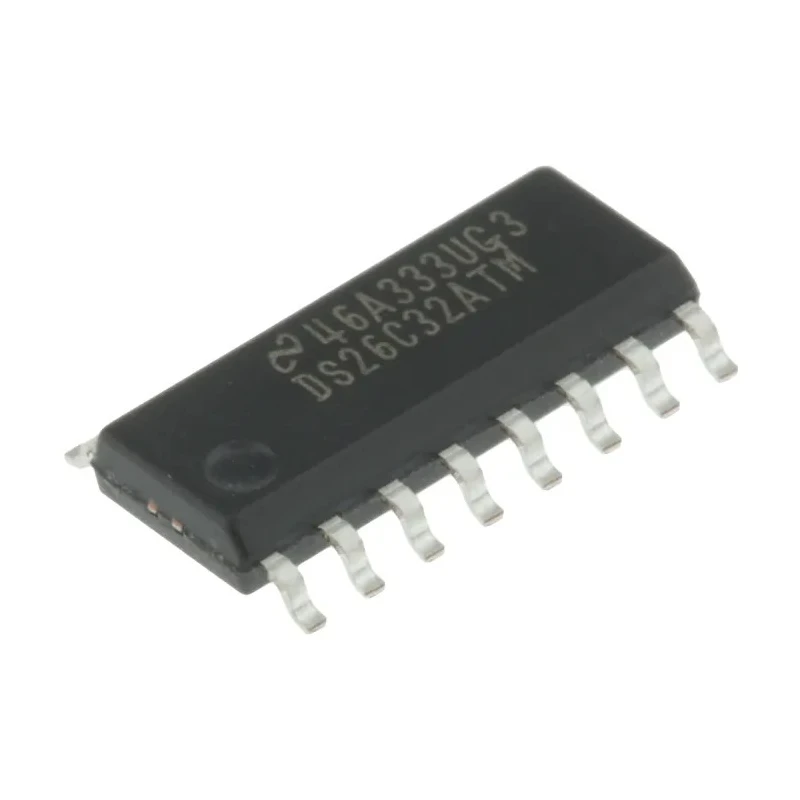

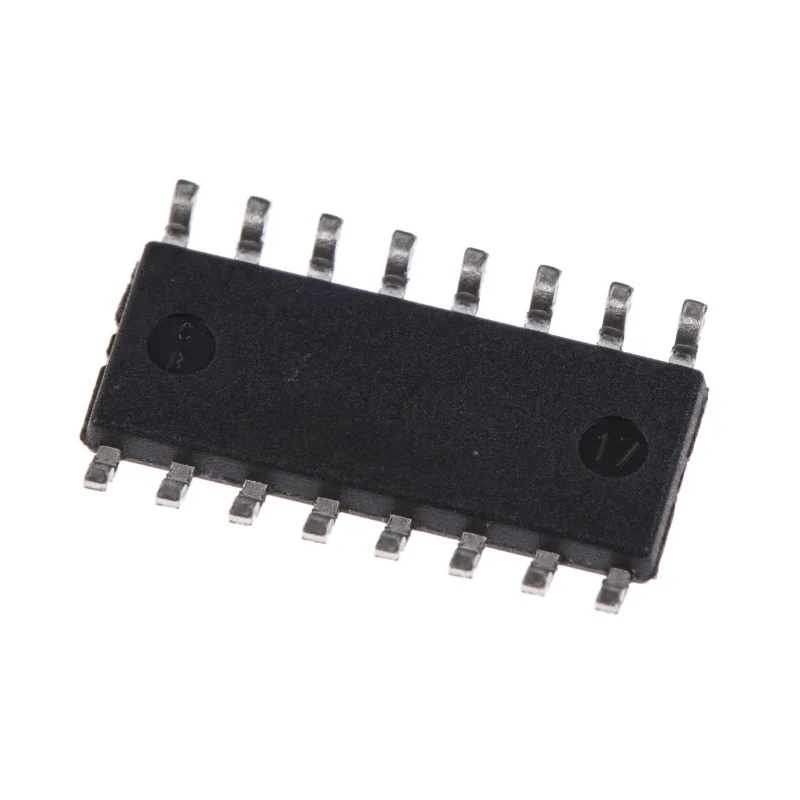

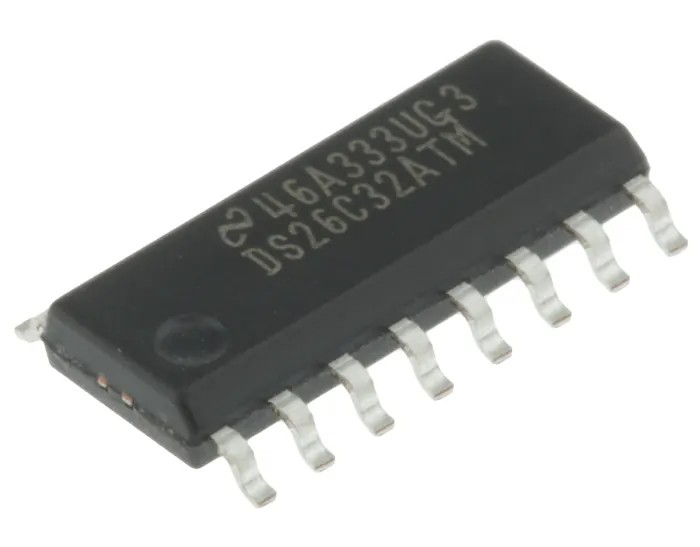

Texas Instruments Line Receiver 3 State 16-Pin SOIC CMOS Logic Family DS26C32ATM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | DS26C32ATM/NOPB |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | DS26C32AT |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| IC Type | Receiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Line Receiver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 30ns |
| Supply Current | 23mA |
Key Features
- Complies with RS-422 receiver standards for robust differential input handling.
- Supports a wide supply voltage range from 4.5 V to 5.5 V ensuring stable operation.
- Features a fast maximum propagation delay time of 30 ns at capacitive load.
- Operates reliably within a temperature range of -40°C to 85°C.
- Compact SOIC surface mount package measuring 10 mm by 6.2 mm with 16 pins.
- Low supply current consumption of 23 mA optimizing power efficiency.
- Designed for surface mount applications with differential input and three-state output.
- Series DS26C32AT ensuring compatibility with related RS-422 line driver components.
Product Description
The Texas Instruments DS26C32ATM/NOPB is a 3 state line receiver designed specifically for reliable differential signal reception within RS-422 applications. Featuring 16 pins in a compact SOIC surface mount package (10 mm length by 6.2 mm width), this receiver offers a fast propagation delay time of 30 ns at capacitive load conditions, ensuring timely data processing in high-speed electronic circuits.
Built with a CMOS logic family IC, it supports operational supply voltages from 4.5 V to a maximum of 5.5 V, making it suitable for a wide range of low-voltage electronic designs. The device operates efficiently with a supply current of 23 mA and is qualified for operating temperature ranges from -40°C to 85°C, which supports demanding industrial, automotive, and communication environments.
The receiver’s three-state output capability allows for effective bus interfacing and control in complex circuitry. Its differential input design provides noise immunity in electrically noisy environments, an essential feature for industrial and communication applications.
Applications for the DS26C32ATM/NOPB include industrial control systems, data communication interfaces, and automation equipment where stable line interface ICs are critical. This component facilitates enhanced signal integrity and system performance in RS-422 line-based designs.
Complies with RS-422 line receiver standards and is fully compatible with Texas Instruments RS-422 line driver ICs. Surface mount SOIC package minimizes PCB real estate while maximizing performance. Ideal for use in industrial, automotive, and commercial electronics requiring robust signal line reception.
Supports temperatures and electrical ranges typical for harsh environmental conditions. High switching speed and low power consumption optimize system efficiency. Ensures signal integrity in differential communication buses and multi-drop receiver configurations.
Discover more electronic components and semiconductor Line Interface ICs suited for your industrial and manufacturing applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
It features a maximum propagation delay time of 30 ns at capacitive load conditions.
This unit operates reliably within a temperature range of -40°C to 85°C.
This model has a total of 16 pins.
It supports differential input, which provides noise immunity in electrically noisy environments.
The supply current consumption is 23 mA, optimizing power efficiency.
It comes in a compact SOIC surface mount package.
The height of this model is 1.75 mm.
It is suitable for applications in industrial control systems, data communication interfaces, and automation equipment.
This model belongs to the CMOS logic family.
The package measures 10 mm in length and 6.2 mm in width.
Yes, it complies with RS-422 receiver standards for robust differential input handling.
