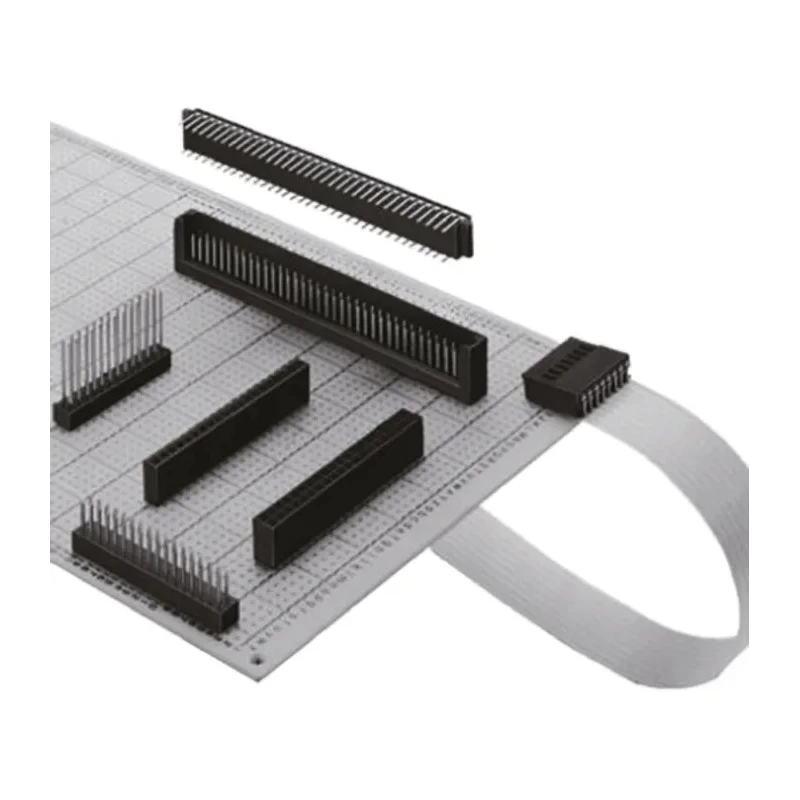

Hirose Board-to-Board Straight Through Hole PCB Socket 16-Contact, 2 Row, 2.54 mm Pitch, 300V, 12A HIF3H

Hirose HIF3H Series Straight Through Hole PCB Socket, Model HIF3H-16DA-2.54DSA(61), is a premium quality board-to-board connector designed for robust electronic applications. It features 16 female contacts arranged over 2 rows with a precise 2.54 mm pitch, ensuring reliable PCB mating with excellent electrical performance. Rated for 300V and 12A, this socket supports demanding power and signal transfer requirements.

The socket housing is constructed from black Polybutylene Terephthalate (PBT) material rated at UL94V-0, providing high flame retardancy and durability. Contacts are made of bronze material with selective gold plating, which enhances corrosion resistance and ensures stable contact resistance over time. The connector is mounted through-hole in a straight orientation for strong mechanical retention and easy solder assembly.

Operating temperature range spans from a low of -55°C to a high of 85°C, making it suitable for use in harsh industrial environments, including computing devices, termination equipment, and office automation machinery. The socket incorporates polarization guides (except the 10 contact version) to prevent incorrect mating, thereby enhancing assembly reliability.

This HIF3H PCB Socket series is designed particularly for board-to-board connection applications where performance, reliability, and safety are paramount. Originating from Japan, this high-quality connector does not list specific standards or approvals but is trusted in various industrial and commercial electronic equipment.

The connector is designed for straight through hole mounting on PCBs. Housing is made of durable Polybutylene Terephthalate (PBT) rated UL94V-0 for flame retardancy. Contacts are female, made of bronze with selective gold plating for reliable conductivity.

Operating temperature range is from -55°C up to 85°C, suitable for various industrial environments. The socket includes polarization guides to prevent mis-insertion during assembly. It is ideal for board-to-board connection applications in computers, electronics, and office automation machines.

Manufactured in Japan adhering to quality standards but has no specific certifications listed. Explore more Hirose components and PCB connectors on EnvMart for quality and reliability in your electronic projects and industrial manufacturing needs.
