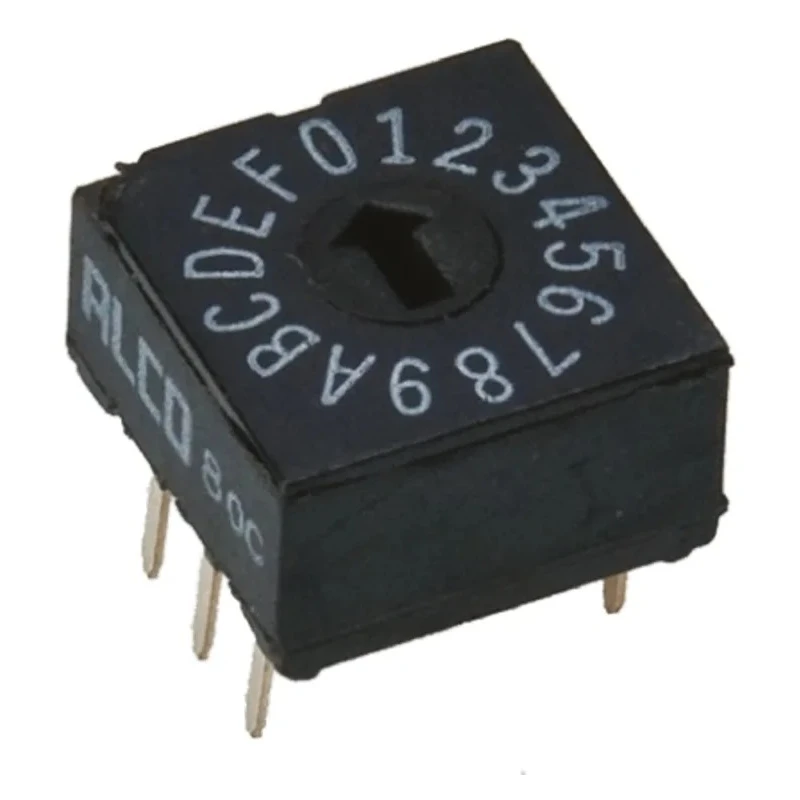

TE Connectivity Rotary Flush Rotary Coded DIP Switch DRD16E04 Contact Rating 0.4VA 20Vdc Life 10000 Rotations
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Temperature range | -30 to +85°C |
| Model | DRD16E04 |
| Actuator Type | Rotary Flush |
| Contact Rating | 0.4VA @ 20Vdc max |
| Contact Resistance | 50mΩ max |
| Life Expectancy | 10000 rotations |
| Screwdriver HEX miniature rotary switchBrand | TE Connectivity |
| APEM 16 Way Through Hole DIP Switch SPST, Rotary Flush ActuatorBrand | APEM |
| Omron 16 Way Through Hole DIP Switch, Rotary Flush ActuatorBrand | Omron |
| KNITTER-SWITCH Rotary Flush Through HoleBrand | KNITTER-SWITCH |
Key Features
- Miniature rotary encoded switch suitable for PCB mounting applications.
- Contact rating of 0.4VA at 20Vdc maximum for low power circuits.
- Low contact resistance rated at 50 milliohms maximum ensuring reliable signal transmission.
- Durability up to 10,000 rotations for long service life.
- Operates reliably in temperature ranges from -30°C to +85°C.
- Gold-plated contacts provide resistance to corrosion and improve conductivity.
- Can withstand wave soldering at 285°C for 5 seconds on 1.5mm PCB card thickness.
- Resistant to ultrasonic cleaning in contaminated solvent solutions with flux agents.
Product Description
TE Connectivity DRD16E04 rotary flush rotary coded DIP switch is a high-reliability miniature rotary encoded switch designed for electronics and electrical equipment needing precise and durable switch actuations. Featuring a rotary flush actuator, this switch is ideal for PCB mounting in various control and signal selection applications.
The switch supports a contact rating of 0.4VA at 20Vdc maximum, suitable for low voltage circuits, and has a low maximum contact resistance of 50 milliohms. Its life expectancy is rated at 10,000 rotations, ensuring long-term reliable operation even under frequent use.
Engineered to operate within a temperature range of -30°C to +85°C, it withstands a variety of environmental conditions. The contacts are gold plated to resist corrosion and enhance electrical conductivity. This switch also endures a 5-second wave soldering process at 285°C, mounted on a 1.5mm thick card, making it compatible with standard PCB assembly techniques.
Additional robustness is provided by resistance to ultrasonic cleaning in solvent solutions contaminated by fluxing agents, making it suitable for manufacturing environments.
This product is commonly used in industrial automation, instrumentation, communication equipment, and other electronics applications where precise switching input is required within compact spaces.
Miniature rotary encoded switch ideal for PCB assembly. Rated 0.4VA contact capacity at 20Vdc maximum. Low contact resistance of 50 milliohms maximum. Endurance for 10,000 rotations with consistent performance. Operates across -30°C to +85°C ambient temperature range.
Gold-plated contacts ensure reliable conductivity and corrosion resistance. Wave solder compatible with 5-second resistance at 285°C. Durable against ultrasonic cleaning flux contaminated solvents. Flush rotary actuator provides streamlined integration in compact designs.
Explore the extensive range of Rotary Coded DIP Switches at EnvMart for industrial, commercial, and laboratory automation systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating of this switch is 0.4VA at a maximum of 20Vdc, making it suitable for low power circuits.
The maximum contact resistance is rated at 50 milliohms, ensuring reliable signal transmission.
This switch has a life expectancy of 10,000 rotations, providing long-term reliable operation.
It operates reliably in a temperature range from -30°C to +85°C, suitable for various environmental conditions.
Yes, it can withstand wave soldering at 285°C for 5 seconds on a 1.5mm PCB card thickness.
The switch features a rotary flush actuator, designed for streamlined integration in compact designs.
The contacts are gold-plated, which enhances conductivity and provides resistance to corrosion.
It is commonly used in industrial automation, instrumentation, communication equipment, and other electronics applications requiring precise switching.
It is resistant to ultrasonic cleaning in contaminated solvent solutions with flux agents, making it suitable for manufacturing environments.
This model is a miniature rotary encoded switch designed for PCB mounting applications, providing precise and durable switch actuations.
The DRD16E04 switch is manufactured in India.
Yes, other brands include APEM, Omron, and KNITTER-SWITCH, which also offer rotary flush through hole DIP switches.
