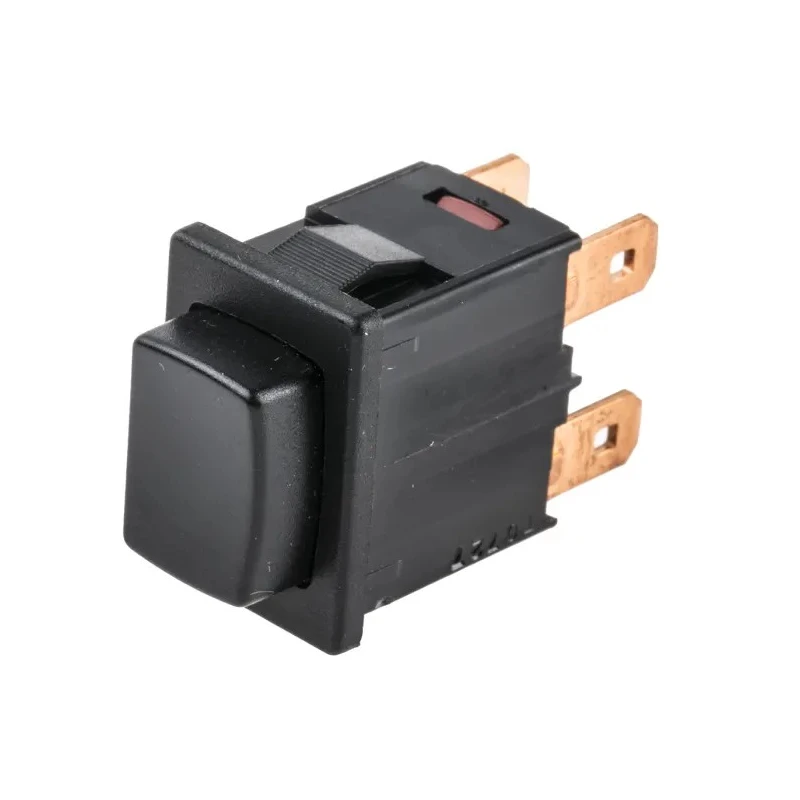

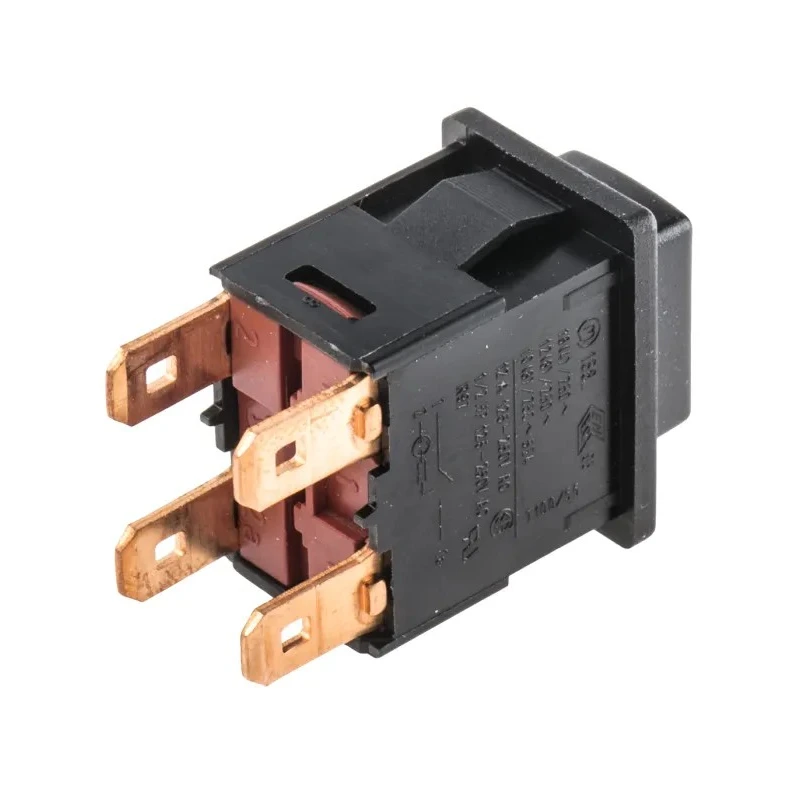

Marquardt Push Button Switch, Momentary, Panel Mount, 12.9 x 19.2 mm Cutout, DPST, IP67, 250 V ac 1684.1201

Name: Marquardt Push Button Switch, Momentary, Panel Mount, 12.9 x 19.2 mm Cutout, DPST, IP67, 250 V ac 1684.1201
Brand: Marquardt
SKU: 333485
Price: 451.03 INR
Availability: InStock



Category Push Button Switches Brand Marquardt Condition New

Specifications

Country of Origin	Tunisia
Brand	Marquardt
IP Rating	IP67
Mount Type	Panel
Maximum Operating Temperature	120°C
Contact Configuration	DPST
Switch Configuration	On-Off
Panel Cutout Size	12.9 x 19.2 mm
Terminal type	Tab
Standards/Approvals	CSA, UL
Switch Operation	Momentary
Actuator Colour	Black
Actuator Style	Button
Switch Contact Current	16A
Contact AC Voltage	250V ac
UL 94 flammability (actuator	V-0, socket: V-1, housing: V-2)

Key Features

Mount type is panel for secure fixation in control panels.
Actuator color is black with a button-style actuator.
Non-illuminated switch operation with momentary on-off switching.
Rating includes contact AC voltage of 250 V ac and switch contact current of 16 A.
IP67 rated for dust tight and water immersion protection.
Maximum operating temperature is 120°C ensuring durability in intense conditions.
Terminals are quick connect tab type for easy installation.
Compliance with CSA and UL standards for safety and quality.

Product Description

Marquardt 1684.1201 push button switch is a momentary type designed for panel mounting with a cutout size of 12.9 x 19.2 mm. This DPST (Double Pole Single Throw) switch is constructed for industrial and automation electrical applications requiring reliable and high-performance switching.

The actuator is a black button style, non-illuminated, ensuring straightforward manual operation. The switch is suitable for AC voltages up to 250 V and switches currents up to 16 A, making it ideal for Class II appliances requiring significant current capacities.

Designed with IP67 protection, it is fully protected against dust ingress and immersion in water, making it suitable for harsh environments where moisture or contaminants are present. The switch terminals use 4.8 mm Faston/quick connect tab terminals enabling fast and secure wiring installation.

Marquardt ensures reliability with silver contacts, providing low contact resistance and high switching capability. The switch operation lifespan is rated for approximately 100,000 mechanical operations, ensuring durability and sustained functionality over long periods of use.

This switch complies with international standards including CSA and UL, assuring safety and performance quality for global industrial applications. Panel mounting type ensures stable and flush fitting in control panels. Black button actuator without illumination for simple control.

Momentary on/off operation with DPST contact configuration. High switching current and voltage rating for demanding electrical loads. IP67 rated for environmental protection and durability. Terminals designed with quick connect tabs for ease of installation.

Meets CSA and UL standards for compliance and safety. Mechanical life expectancy of 100,000 operations enhances reliability. Suitable for industrial, automation, and electrical control applications. Set contained is a single Marquardt 1684.1201 push button switch.
