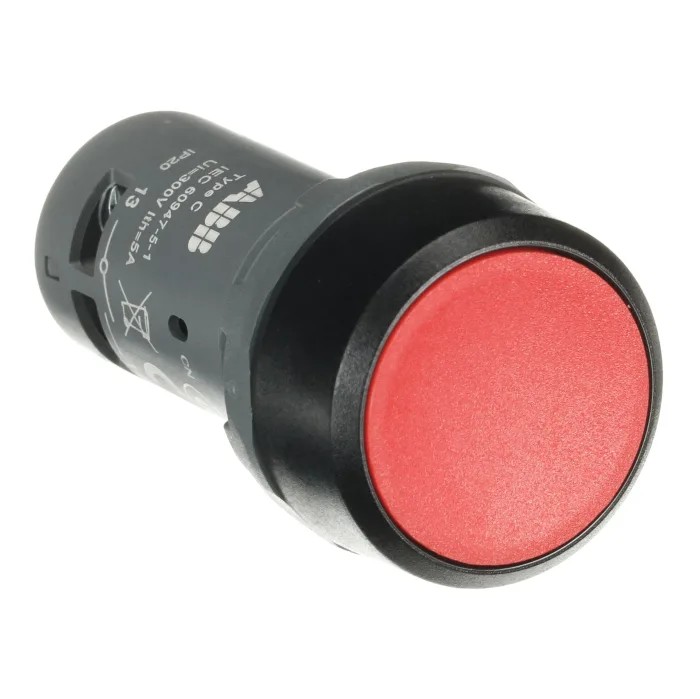

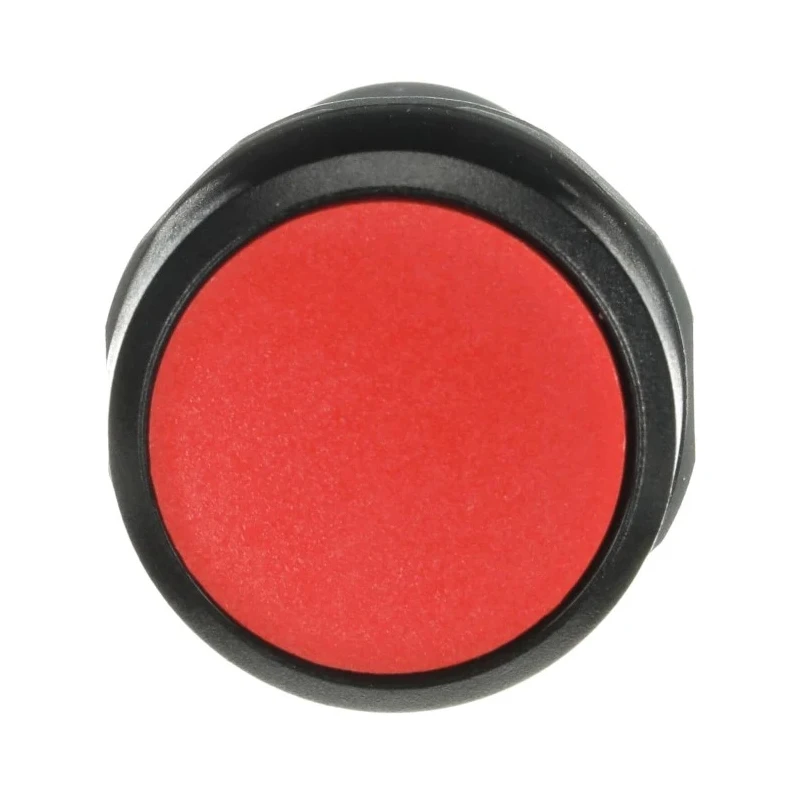

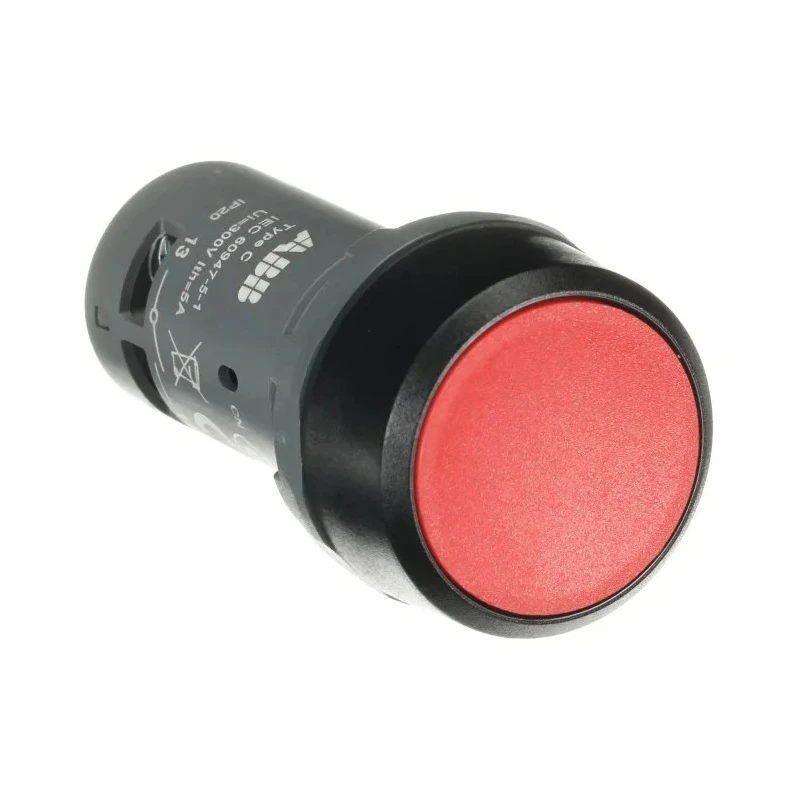

ABB Compact Series Push Button Switch, Momentary Operation, Panel Mount, 22 mm Cutout, DPST 1SFA619100R1021 CP1-10R-20



Category Push Button Switch Brand ABB Condition New

Specifications

Country of Origin	China
Brand	ABB
Height	30mm
Length	55mm
Model	1SFA619100R1021 CP1-10R-20
IP Rating	IP20, IP66, IP67, IP69K
Width	30mm
Mount Type	Panel
Series	Compact
Maximum Operating Temperature	70°C
Contact Configuration	DPST
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
Standards/Approvals	IEC 947-5-5EN 60204
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	125V
Actuator Style	Round

Key Features

The switch features a 22 mm panel cutout size for secure installation.
It operates momentarily for temporary control and safety interlocking.
DPST contact configuration allows simultaneous switching of two circuits.
Screw terminal connections ensure reliable mechanical and electrical contact.
Ingress protection ratings include IP20, IP66, IP67, and IP69K for harsh environments.
Designed to operate between -25°C and 70°C ambient temperatures.
The actuator is round, red, and non-illuminated for visual identification.
Compact series design suitable for industrial control panels.

Product Description

ABB 1SFA619100R1021 CP1-10R-20 Compact Series Push Button Switch offers a momentary control input solution for industrial automation and electrical control panels. Featuring a red round actuator, this push button switch is designed for panel mounting requiring a 22 mm cutout. It supports dual-pole single-throw (DPST) switching, making it ideal for controlling two circuits simultaneously in low-voltage DC applications rated up to 125 V.

Constructed for durability, the switch provides multiple ingress protection levels including IP20, IP66, IP67, and IP69K, making it suitable for use in harsh and demanding manufacturing, machinery, and automation environments. The switch's screw terminal connections provide dependable wiring installation and maintenance.

Operating from -25°C to 70°C ambient temperature, it supports safety interlock circuits and temporary control functions such as start/stop operations in test rigs and manufacturing lines. The product conforms to internationally recognized IEC 947-5-5 and EN 60204 electrical safety standards.

The switch features a 22 mm panel cutout with a secure panel mount design. Momentary operation provides temporary actuation for control and safety applications. Dual-pole single-throw (DPST) contact configuration enables simultaneous dual-circuit switching.

Screw terminal type terminals ensure reliable electrical contact and ease of wiring. Ingress protection ratings (IP20, IP66, IP67, IP69K) allow use in various environmental conditions. Suitable for machine control panels, safety interlocks, and control cabinets.

Operating temperature range of -25°C to 70°C supports a wide range of site applications. The round red actuator offers clear visual identification and tactile feedback. Compact series design makes it space-efficient for panel integration.

Compliance with IEC 947-5-5 and EN 60204 ensures safety and quality.

This ABB push button switch is a reliable component for industrial, manufacturing, electrical, and automation control panel applications requiring momentary switch operation with dual-pole switching capability. It is especially suited for environments demanding robust ingress protection and secure panel mounting.
