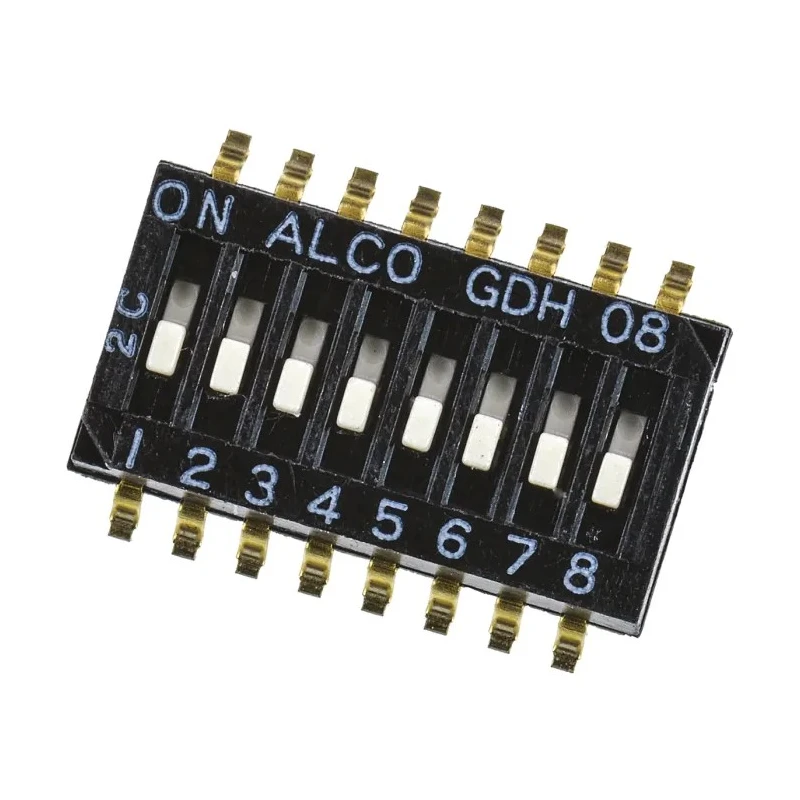

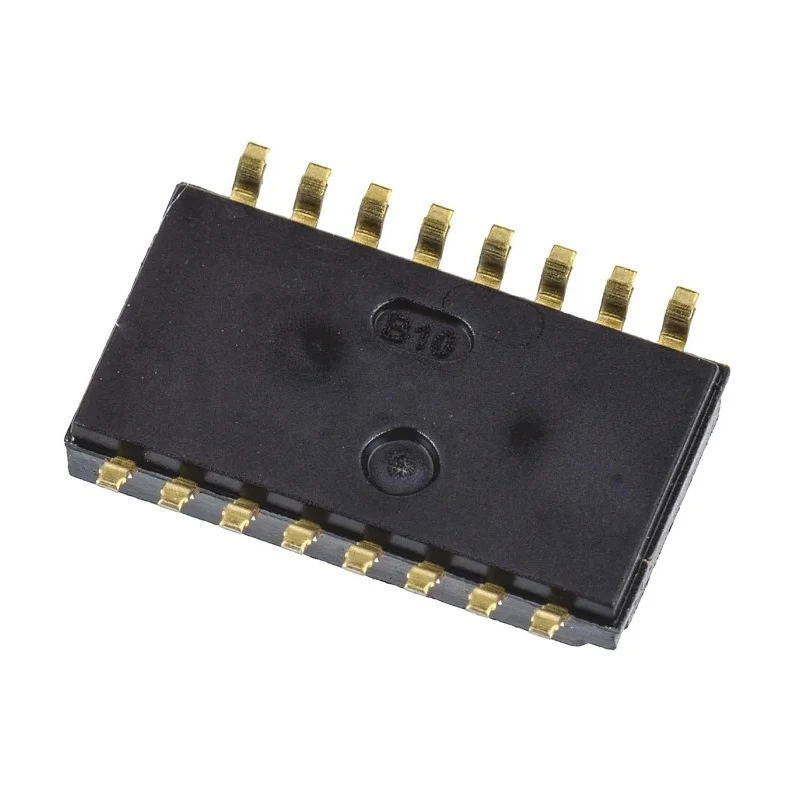

TE Connectivity Slide Rotary Coded DIP Switch with 100mΩ Contact Resistance, 100 MΩ Insulation Resistance GDH08S04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | GDH08S04 |
| Actuator Type | Slide |
| Insulation resistance | 100 MΩ @ 250Vdc |
| Contact Resistance | 100mΩ |
| Mechanical Life | 1000 Cycles |
| TE Connectivity 8 Way Surface Mount DIP Switch SPST, Rocker ActuatorBrand | TE Connectivity |
Key Features
- The switch operates with a slide actuator type for precise control.
- Contact resistance is low at 100 milliohms, ensuring reliable electrical connection.
- Insulation resistance is rated at 100 megaohms at 250 volts DC, providing safety and durability.
- The mechanical life of the switch is rated at 1000 cycles, supporting long-term use.
- The low profile design includes a tape seal enhancing durability.
- Gold wiping contact system improves electrical performance and contact reliability.
- Suitable for PCB mounting with a half pitch rocker style format.
- Ideal for use in various electronic and electrical applications.
Product Description
TE Connectivity GDH08S04 is a slide rotary coded DIP switch designed for reliable and precise switching applications in electronics and electrical systems. It features a slide actuator with a half pitch rocker switch design, incorporating a gold wiping contact system to ensure superior electrical connection and durability.
This switch offers a contact resistance of 100 milliohms and an insulation resistance of 100 megaohms at 250V DC, providing high performance and safety for sensitive circuits. The device is built with a low profile and includes a tape seal for added protection and longevity in mechanical operation.
The mechanical life expectancy of this switch is 1000 cycles, making it suitable for various industrial and manufacturing applications where consistent switching performance is required.
Typical uses for the TE Connectivity GDH08S04 switch include electronic equipment, automation systems, PCB assemblies, and any application requiring a robust slide rotary coded DIP switch with high reliability.
The switch operates with a slide actuator type for precise control. Contact resistance is low at 100 milliohms, ensuring reliable electrical connection. Insulation resistance is rated at 100 megaohms at 250 volts DC, providing safety and durability.
The mechanical life of the switch is rated at 1000 cycles, supporting long-term use. The low profile design includes a tape seal enhancing durability. Gold wiping contact system improves electrical performance and contact reliability.
Suitable for PCB mounting with a half pitch rocker style format. Ideal for use in various electronic and electrical applications. Explore the extensive range of Rotary Coded DIP Switches and other TE Connectivity products at EnvMart for industrial, electronic, and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of this switch is 100 milliohms, ensuring reliable electrical connections.
It has an insulation resistance rated at 100 megaohms at 250 volts DC.
The mechanical life of this switch is rated at 1000 cycles, supporting long-term use in various applications.
This switch operates with a slide actuator type, allowing for precise control.
Yes, it is designed for PCB mounting with a half pitch rocker style format.
The low profile design includes a tape seal that enhances durability and protects the internal components.
It is ideal for use in electronic equipment, automation systems, and PCB assemblies.
The GDH08S04 switch is manufactured in India.
The gold wiping contact system improves electrical performance and contact reliability for the switch.
The insulation resistance is rated at 250 volts DC.
It ensures reliable electrical connections through its low contact resistance and gold wiping contact system.
It is categorized as a slide rotary coded DIP switch.
