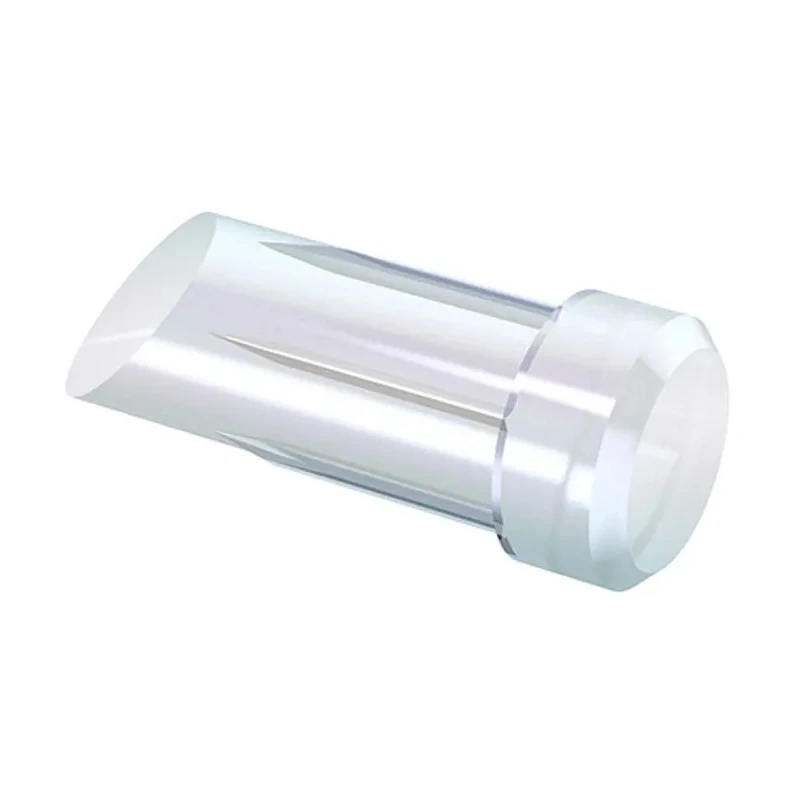

Mentor GmbH Panel Mount 1-Way Straight Rigid LED Light Pipe Clear, Yellow 1282.4000

Mentor GmbH 1282.4000 panel mount 1-way straight rigid LED light pipe is engineered for precise light guidance from SMD LEDs through front panels. Constructed from clear PC UL94 material, this component offers excellent durability and flame retardancy, vital for electrical and industrial environments, and meets UL94 safety standards.

Measuring 7.2mm length with an outside diameter of 3.2mm and an inside diameter of 2.6mm, the pipe features a diagonal 45° inject face designed to sit closely against LEDs such as OSRAM's TOPLED and CHIPLED series, maximizing luminance transfer with minimal loss or bleed between adjacent lights. Its rigid structure and panel mount design facilitate secure installation with straight orientation, delivering bright yellow illumination without the LED included.

The operating ambient temperature ranges from -40°C to +85°C, catering to a variety of harsh industrial and commercial environments. Configuration is single way (1 x 1 rows x columns) suitable for applications demanding singular light pipe solutions. It is an excellent choice for use in medical devices, security safety systems, communications equipment, and industrial control panels where reliable, clear visual indicators are necessary.

The light pipe is constructed from clear polycarbonate material with UL94 flame rating for safety. Featuring a diagonal 45° inject face for optimal light transfer efficiency. Designed for panel mounting, facilitating easy front panel integration.

Rigid configuration ensures stable and secure installation. Supports yellow LED color with no LED included, allowing user customization. Dimensions: length 7.2mm, outside diameter 3.2mm, inside diameter 2.6mm. Complies with industry standards and approvals including UL94.

Suitable for deployment in industrial, medical, and communication applications.

Choose Mentor GmbH's 1282.4000 LED light pipe for effective front panel illumination in demanding environments. Browse our Electronics & Electricals category for more LED Light Pipe solutions and reliable components.
