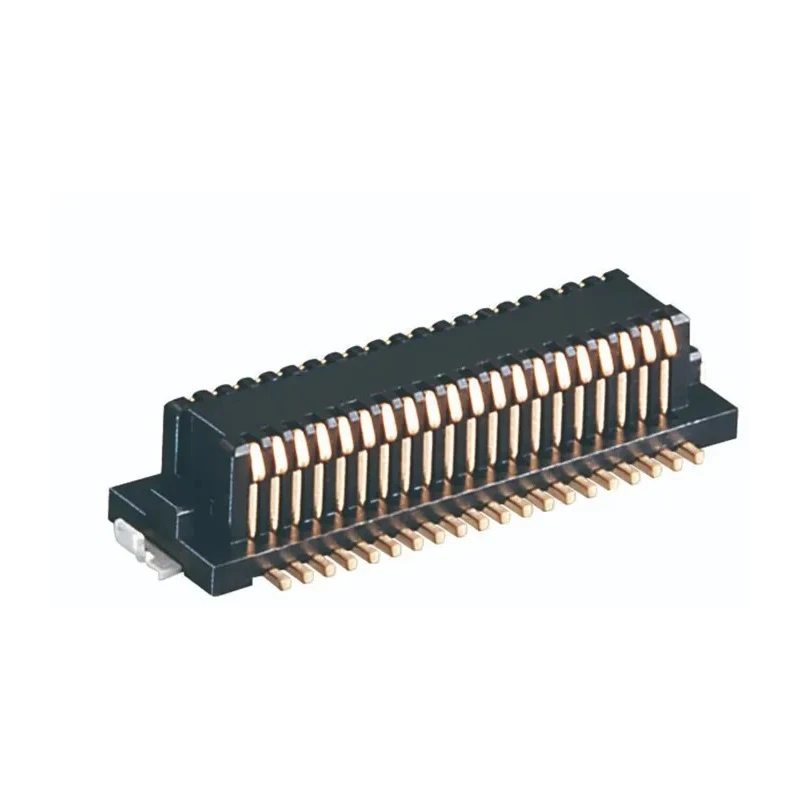

Hirose DF12 Series Straight Surface PCB Socket 20-Contact 2 Row 0.5 mm Pitch Solder

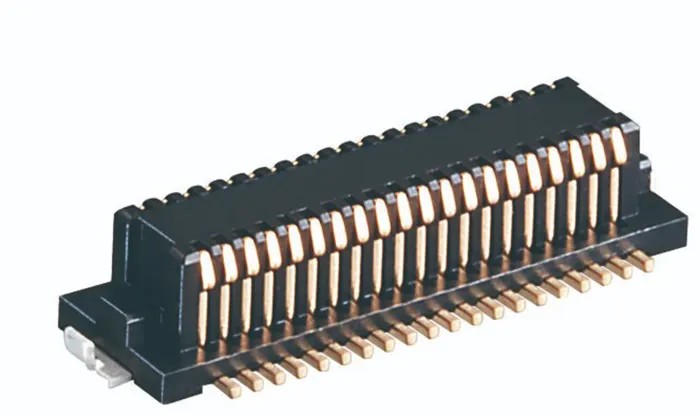

Hirose DF12NB(3.0)-20DS-0.5V(51) PCB Socket is a high-precision, straight orientation surface mount board-to-board connector from the DF12 series. Its ultra-miniature 0.5 mm pitch and 20-contact double row configuration make it ideal for compact electronic devices requiring reliable connections.

The housing is constructed from UL94V-0 polyamide material, offering excellent flame retardance and stability across a wide temperature range of -55°C to 125°C.

Contacts are made of copper with gold plating, ensuring excellent conductivity, corrosion resistance, and durability in demanding industrial, manufacturing, and electronic equipment environments.

This connector system supports a voltage rating of 50 V and a current of 300 mA, suitable for low-power PCB interconnections.

The 3 mm stacking height supports tight PCB spacing and efficient board design, and the socket includes features like board guide bosses and metal fittings to secure solder retention and ease assembly.

This PCB Socket is engineered for surface mounting, enhancing production efficiency for automated assembly lines and providing robust mechanical and electrical performance. Compact 0.5 mm pitch enables ultra-miniature board-to-board connections.

Polyamide housing provides durability and UL94V-0 flame resistance. Gold plated copper contacts ensure reliable conductivity and corrosion resistance. Rated for 50 V voltage and 300 mA current capacity. Designed for surface mounting with a stacking height of 3 mm.

Operating temperature range from -55°C to 125°C. Board guide bosses and metal fittings secure solder retention. Ideal for industrial, manufacturing, and electronic equipment applications. Explore the Hirose connectors collection at EnvMart for reliable industrial and electronic components.
