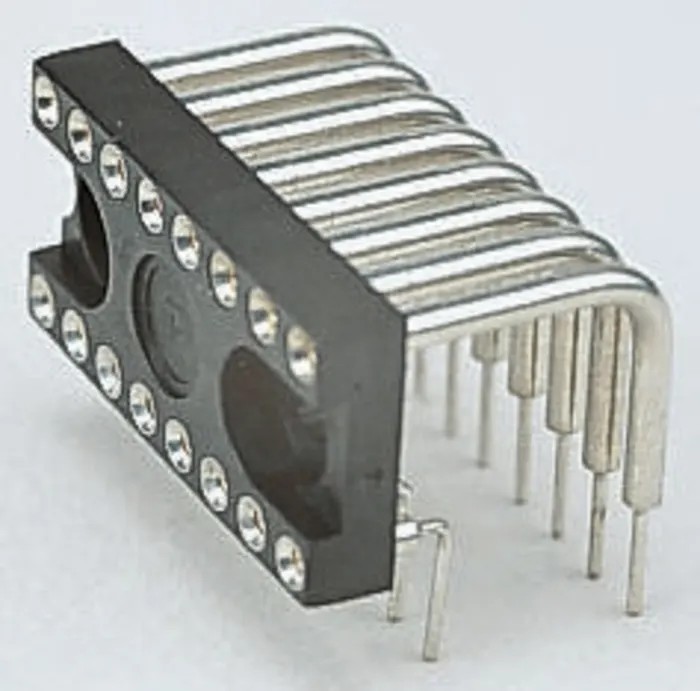

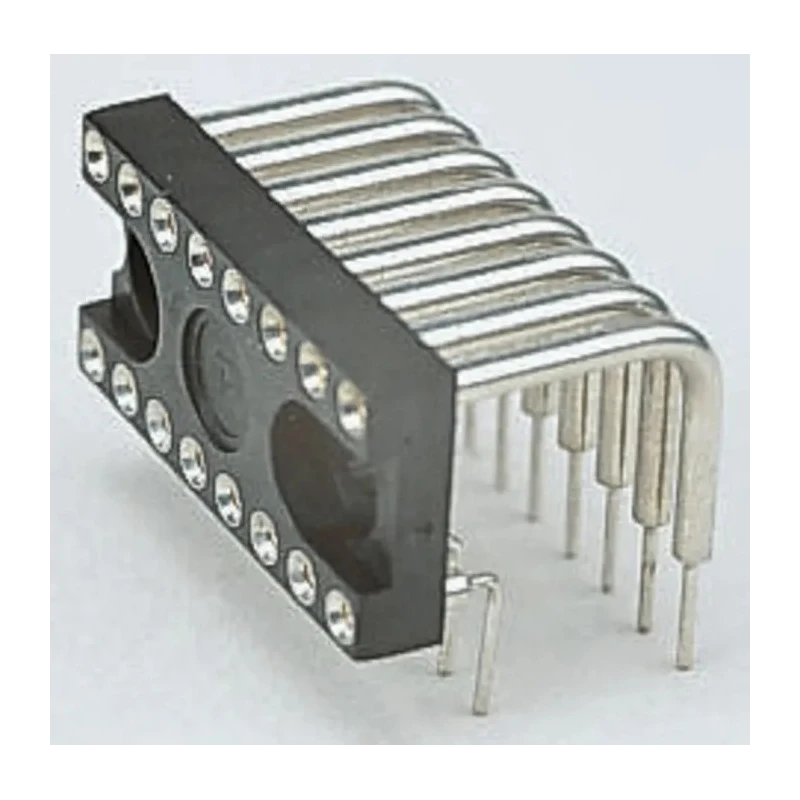

E-TEC DIL Socket 20 Way 2.54 mm Pitch Right Angle Through Hole Turned Pin Closed Frame LEH-320-S900-95

E-TEC LEH-320-S900-95 DIL Socket 20 Way features a 2.54 mm pitch and is designed with a right angle through hole turned pin closed frame for reliable electronic component connections.

Constructed using high-quality beryllium copper alloy contacts plated with gold and tin, it ensures excellent conductivity and corrosion resistance suitable for demanding industrial and electronic applications.

The socket has 20 contacts arranged in a dual in-line package style with a row pitch of 7.62 mm, a depth of 13.22 mm, and a width of 10.16 mm for compact PCB integration. Its solder termination type and through hole mount style provide stable mechanical and electrical connections, ideal for dot matrix or bar graph display modules.

This closed frame design socket from the LEH/LEV series is juxtaposable in line without throughput loss, enabling flexible use in various configurations. Features 20 contacts arranged in a dual in-line package style. Contact pitch is 2.54 mm with a row width of 7.62 mm.

Constructed with beryllium copper alloy contacts plated with gold and tin for reliable conductivity. Right angle orientation with a closed frame design ensures stable mounting and durability. Designed for solder termination and through hole mounting style.

Depth of the socket is 13.22 mm and width is 10.16 mm. Suitable for use with dot matrix or bar graph displays, juxtaposable without throughput loss. Part of the LEH/LEV series offering a range of 14 to 20-pin sockets.

This product is well suited for applications in the electronics manufacturing, industrial, and laboratory environments where secure and dependable electrical interconnections are critical.
