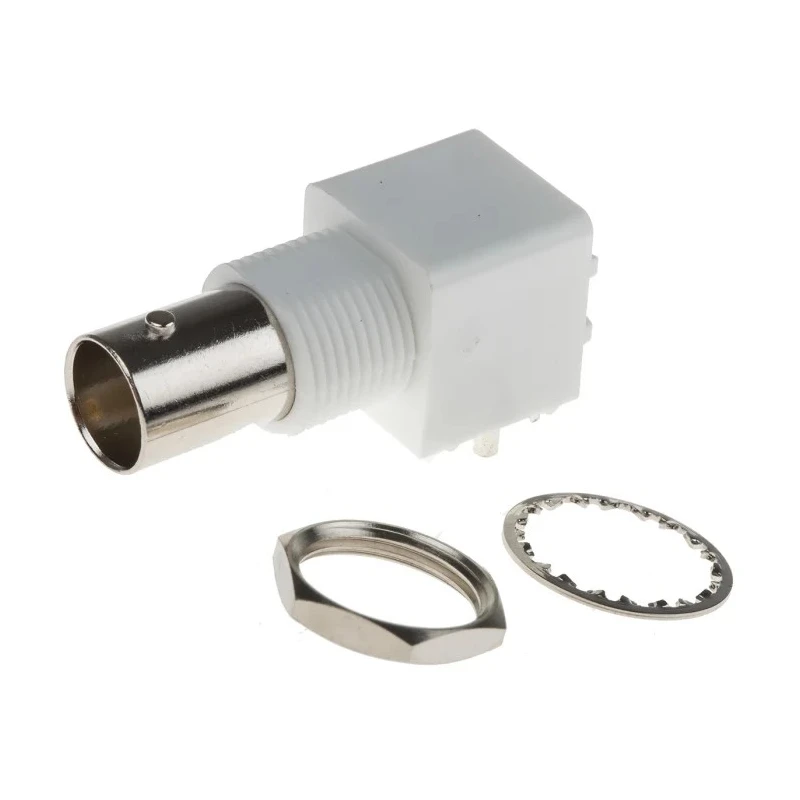

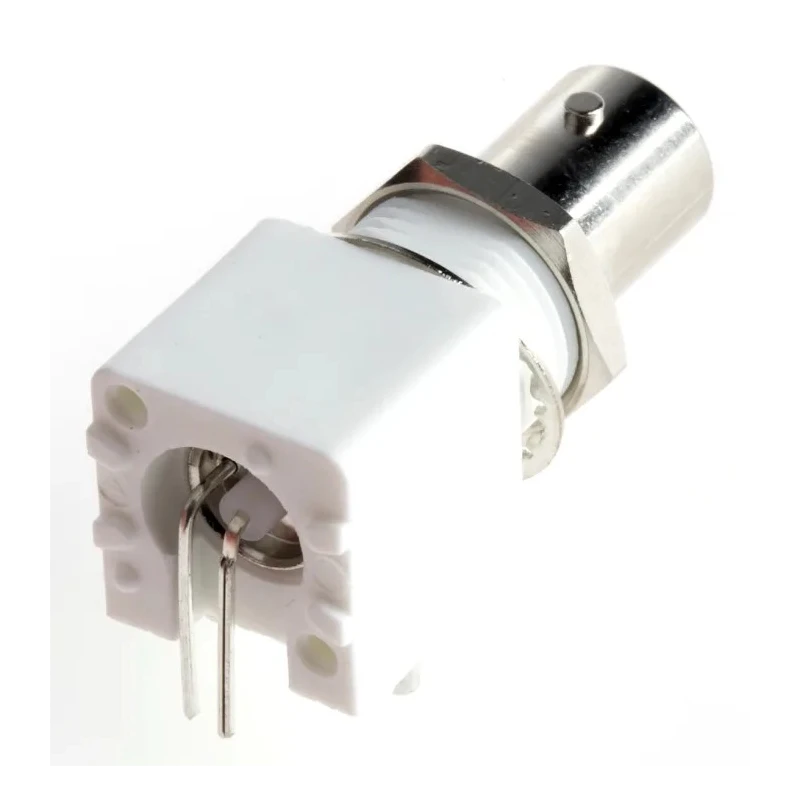

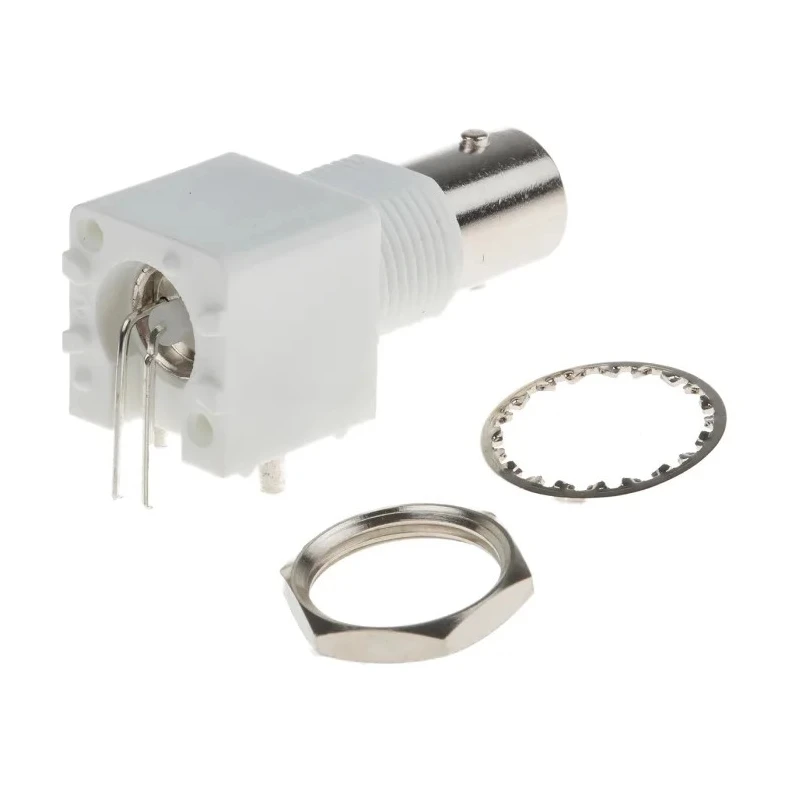

RS PRO Coaxial Connector PCB Female BNC, 75 Ω, Right Angle Body, Through Hole Mount 546-5159
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-5159 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Phosphor Bronze |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO, jack PCB Mount, 75Ω, Solder Termination, Right Angle BodyBrand | RS PRO |
Key Features
- Features a gold-plated female contact for excellent conductivity and long service life.
- Has a robust nickel-plated body with bulkhead mount capability.
- Operates up to 1GHz frequency suitable for RF signal applications.
- Includes a PTFE insulator for enhanced reliability and insulation.
- Designed for use in antenna connections, telecom, medical equipment, and CCTV systems.
- Implements a secure bayonet coupling system for stable connection.
- Rated for operating temperatures from -65°C to 85°C.
Product Description
RS PRO 546-5159 Coaxial Connector PCB Female BNC is a premium right angle coaxial connector with 75 Ω impedance, ideal for high frequency RF signal integrity applications up to 1GHz. It features a PCB mount design with through hole termination that ensures a secure and stable connection for electronic devices.
The connector body is nickel plated for durability, while the female contact is gold-plated phosphor bronze to deliver superior conductivity and resistance to corrosion, making it suitable for long-term use in demanding environments. The PTFE insulation delivers reliable dielectric strength and stability under varying temperature conditions.
This bulkhead mount coaxial connector includes a bayonet locking mechanism that ensures quick and secure connections with minimal signal loss, making it ideal for antenna connections, cable modems, telecommunication infrastructure, medical diagnostic devices, satellite communication, and CCTV systems.
The connector is rated to operate reliably in temperatures ranging from -65°C to 85°C, supporting stable performance in harsh conditions. Its right angle orientation allows for efficient space utilization on PCBs and assemblies.
Gold-plated female contact optimizes conductivity and durability. Nickel-plated robust body supports mechanical strength and corrosion resistance. PTFE insulation enhances reliability of signal performance. Supports operation frequencies up to 1GHz for RF applications.
Right angle body with through hole mount for PCB integration. Bulkhead mount design secures installation to panels or chassis. Suitable for antenna, telecom, medical, satellite, and CCTV applications.
This RS PRO Coaxial Connector ensures high quality, reliability, and performance required in industrial, laboratory, and commercial electronics environments. It is made in Taiwan, Province Of China, offering international manufacturing standards. Explore more from RS PRO for trusted components in your electronic designs or projects.
