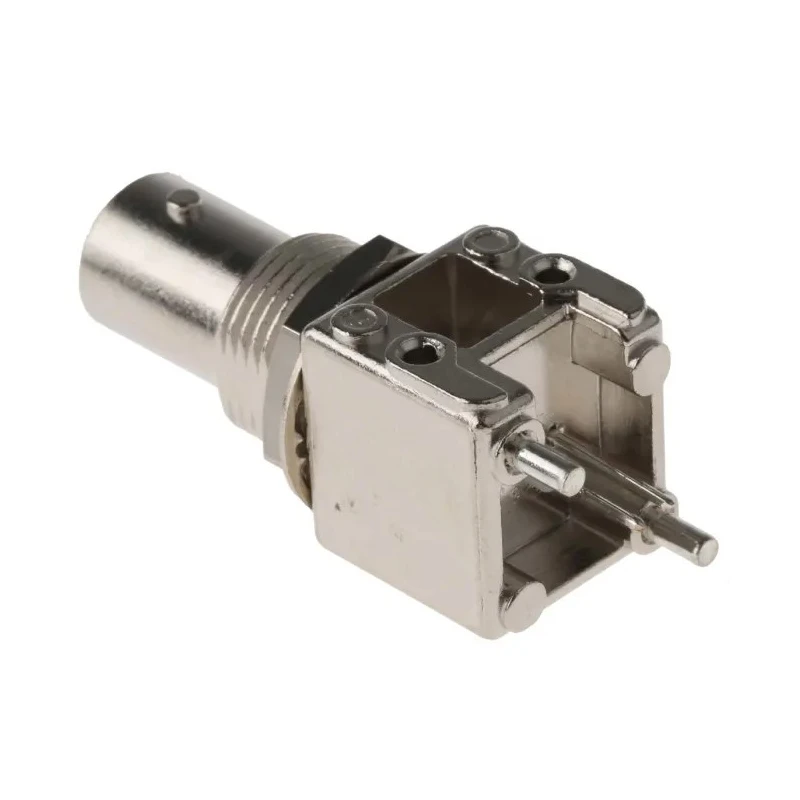

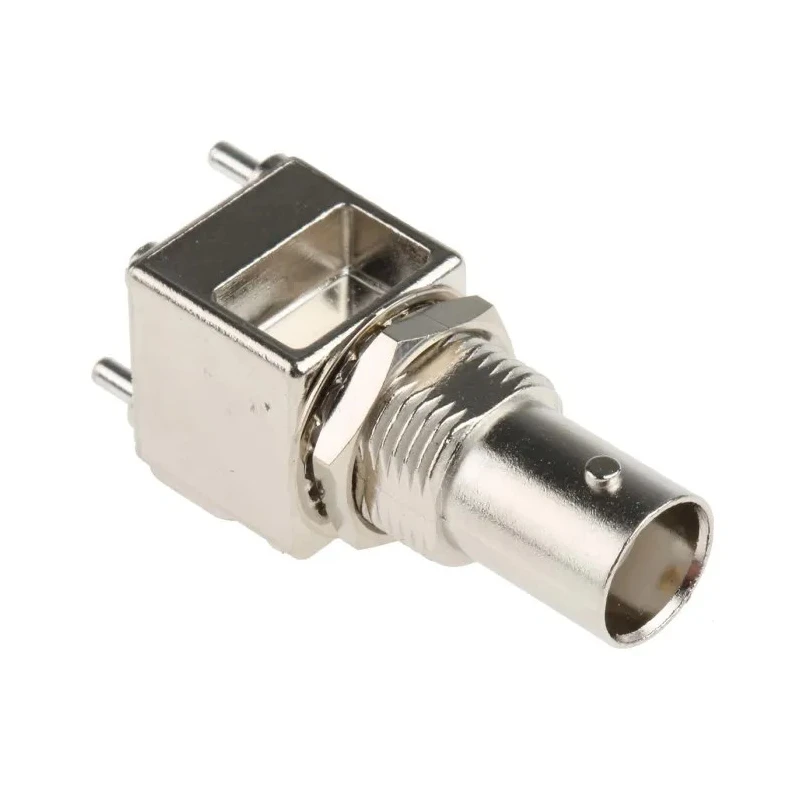

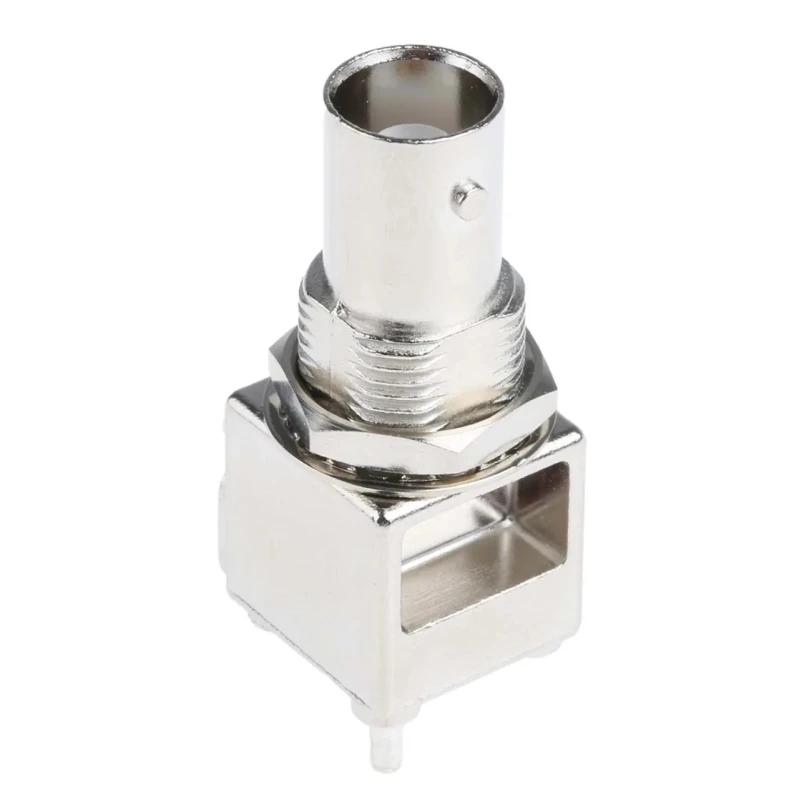

RS PRO Coaxial Connector PCB Female BNC, 50 Ω, Straight Body Through Hole 546-5187

RS PRO 546-5187 Coaxial Connector PCB Female BNC is a high-quality, shielded RF connector designed for PCB mounting with a straight body and through-hole termination. Featuring a 50 Ω impedance, this connector is built to ensure excellent signal integrity and durability for industrial and commercial applications.

The body of the connector is nickel plated to provide corrosion resistance and mechanical strength, while the center pin contact is gold plated phosphor bronze, ensuring consistent electrical performance over prolonged use. The PTFE insulation material adds high reliability and stable dielectric properties, making it suited for demanding environments.

The connector supports operating frequencies up to 1 GHz, making it suitable for various RF signal transmissions including telecommunications, antenna connections, medical devices, cable modems, satellite communications, and CCTV systems.

Its bayonet coupling system offers a quick and secure mating mechanism, reducing assembly time without compromising connection stability. The PCB mounting through-hole design provides robust mechanical retention on circuit boards, facilitating reliable wire-to-device applications.

Operating temperature ranges from -65°C to 85°C enable its deployment in diverse environmental conditions. With a normal polarity female connection and standard size, it is compatible with a wide range of coaxial cable assemblies.

Nickel plated metal body for durability and corrosion resistance. Gold-plated phosphor bronze contact for enhanced conductivity. PTFE insulator ensures reliable electrical insulation. Supports operating frequency of 1 GHz suitable for RF applications.

Bayonet coupling for secure and easy connection. Designed for PCB mounting with through-hole termination. Works in temperature range from -65°C to 85°C. Ideal for antenna connections, telecom, medical, and CCTV use cases.

Standard size with female connector gender and normal polarity. Manufactured in Taiwan with RS PRO quality assurance.

RS PRO products are renowned for their rigorous industry-standard testing and dependable performance, trusted by engineers worldwide. Explore more from RS PRO and other quality connectors on EnvMart for your industrial and electronic component needs.
