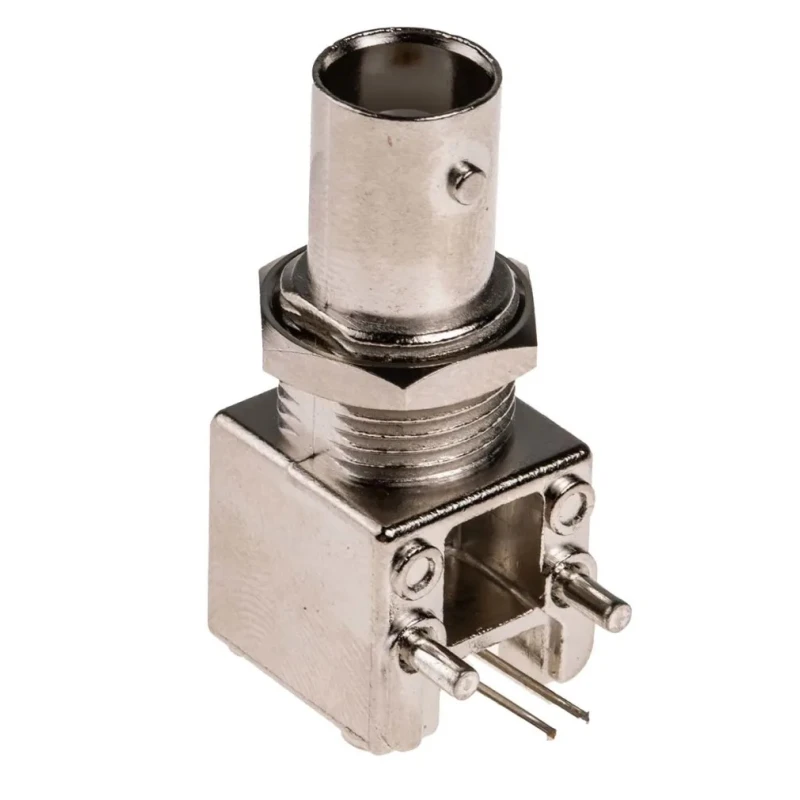

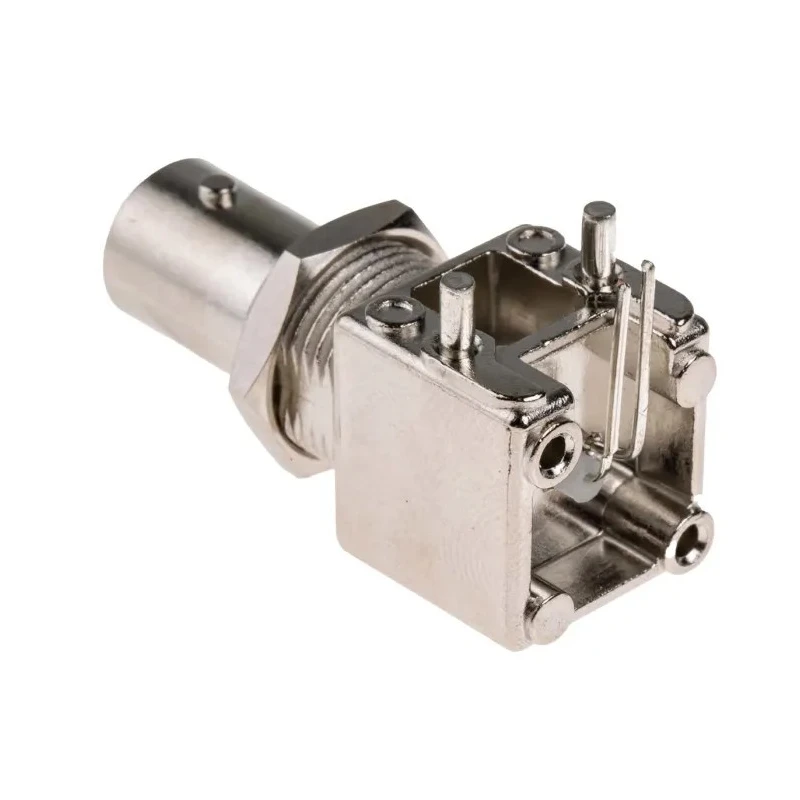

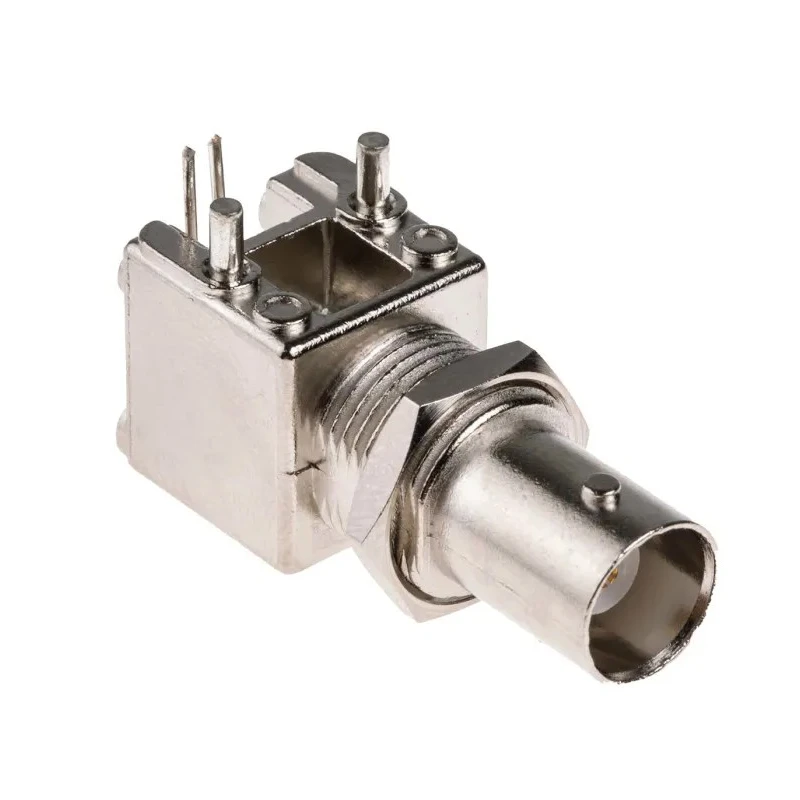

RS PRO Coaxial Connector PCB Female BNC 50 Ω Right Angle Body Through Hole 546-5137
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-5137 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Phosphor Bronze |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector PCB Female BNC, 50 Ω, Straight Body Through HoleBrand | RS PRO |
| NiPt BNC shielded 90deg PCB socket,50ohmBrand | RS PRO |
Key Features
- Gold-plated female contact for optimum conductivity.
- Nickel-plated robust metal body ensures durable performance.
- PCB mount style with bulkhead mounting for panel and chassis integration.
- Operating frequency of 1 GHz with PTFE insulation material for reliability.
- Designed for reliable RF signal applications including telecom and medical equipment.
- Normal polarity with phosphor bronze contact material guarantees secure connection.
- Suitable for coaxial cable type integration with standard size interface.
Product Description
RS PRO 546-5137 Coaxial Connector is a precision PCB mount female BNC connector featuring a 50 Ω impedance and a right angle body configuration for convenient PCB layouts. Manufactured with a nickel-plated metal body for robustness and a gold-plated phosphor bronze contact, this connector ensures optimal signal transmission and reliable conductivity over a long lifespan.
The connector supports an operating frequency up to 1 GHz and uses PTFE insulation material for enhanced dielectric strength and durability. Its through hole termination and bulkhead design enable secure mounting on panels and chassis, making it ideal for wire-to-device applications in various industrial environments.
This RS PRO Coaxial Connector is widely used across RF signal transmission applications including antenna connections, cable modems, telecom devices, satcom systems, CCTV installations, and medical test equipment. The female connector with normal polarity provides secure and stable connections while ensuring compatibility with coaxial cable assemblies.
The compact right angle design facilitates use in space-constrained applications, optimizing layout efficiency on printed circuit boards. Its standardized dimensions and robust construction support comprehensive industrial, commercial, and laboratory use cases where reliable RF connectivity is essential.
Gold-plated female contact ensures maximum efficiency and long service life. Nickel-plated metal body offers high durability and shielding. PCB mount with bulkhead for secure panel integration. 50 Ω impedance suited for RF and signal transmission.
Operating frequency up to 1 GHz supports diverse applications. PTFE insulation for reliable electrical performance. Right angle orientation for optimized PCB layout.
Choose RS PRO products for trusted quality and rigorous testing to meet demanding industrial standards. Explore a complete range of RS PRO connectors and electronic components at EnvMart for dependable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 1 GHz, making it suitable for various RF signal applications.
It features a PCB mount style with through hole termination, allowing for secure installation on printed circuit boards.
The impedance of this coaxial connector is 50 Ω, which is standard for RF signal transmission.
The connector has a nickel-plated metal body for durability and a gold-plated phosphor bronze contact for optimal conductivity.
It operates within a temperature range of -40°C to 60°C, suitable for various environmental conditions.
This connector is designed for use with coaxial cables, ensuring reliable connections in RF applications.
The connector features a right angle orientation, which helps optimize PCB layouts in space-constrained applications.
The contact material is phosphor bronze, which ensures a secure and stable connection.
It uses PTFE insulation material, which enhances dielectric strength and reliability.
It is widely used in RF signal transmission applications, including telecom devices, cable modems, and medical test equipment.
The body of this connector is nickel-plated, which provides additional durability and shielding against interference.
This model features a female contact, designed for secure integration with compatible male connectors.
