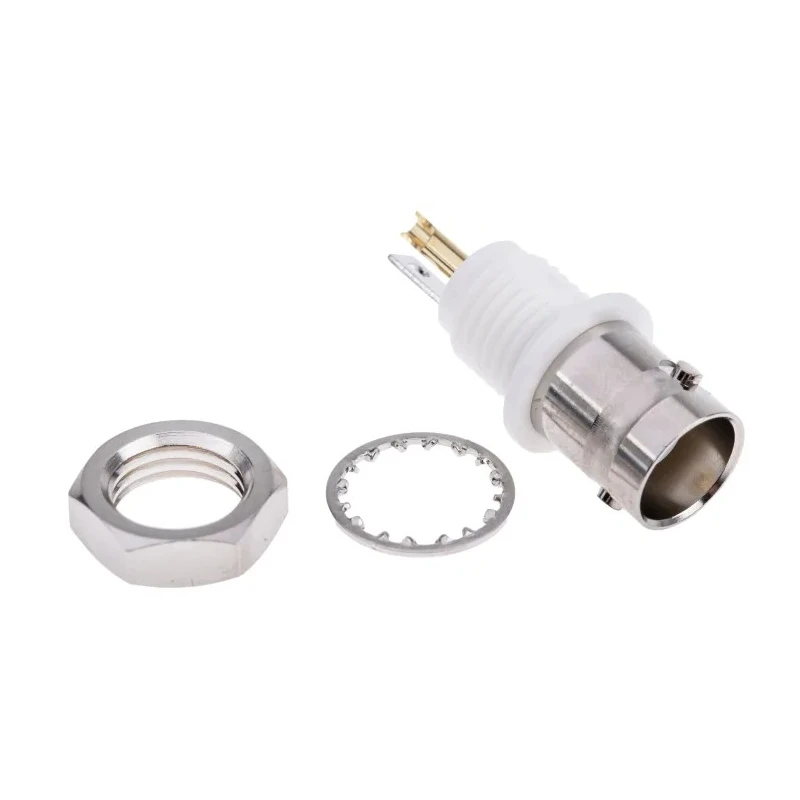

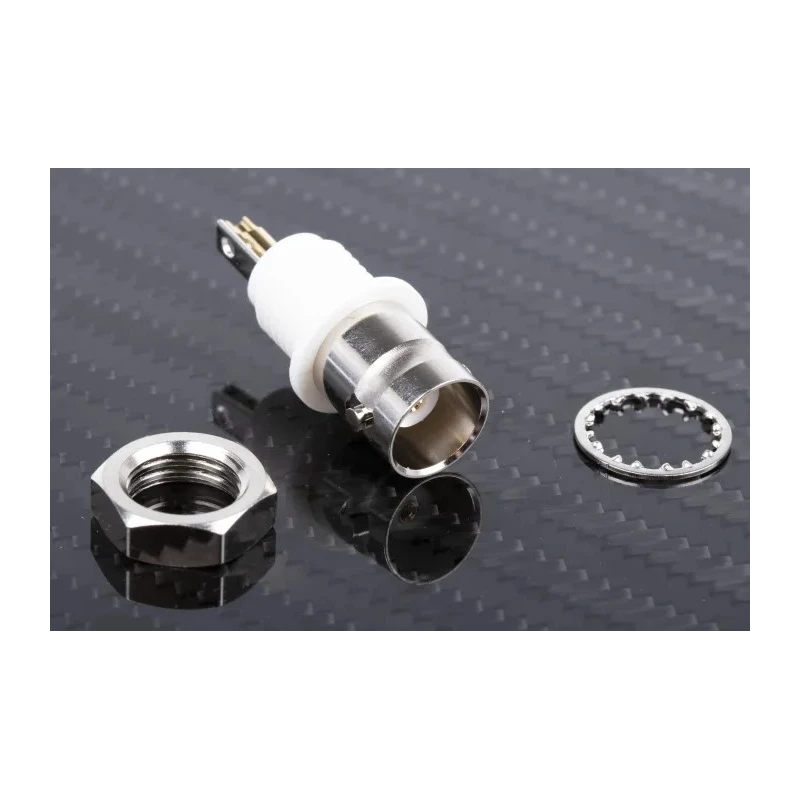

RS PRO Coaxial Connector Panel Mount Female BNC 50 Ω Straight Body Solder 546-4910

Free Delivery in India | Lowest Global Shipping Charges

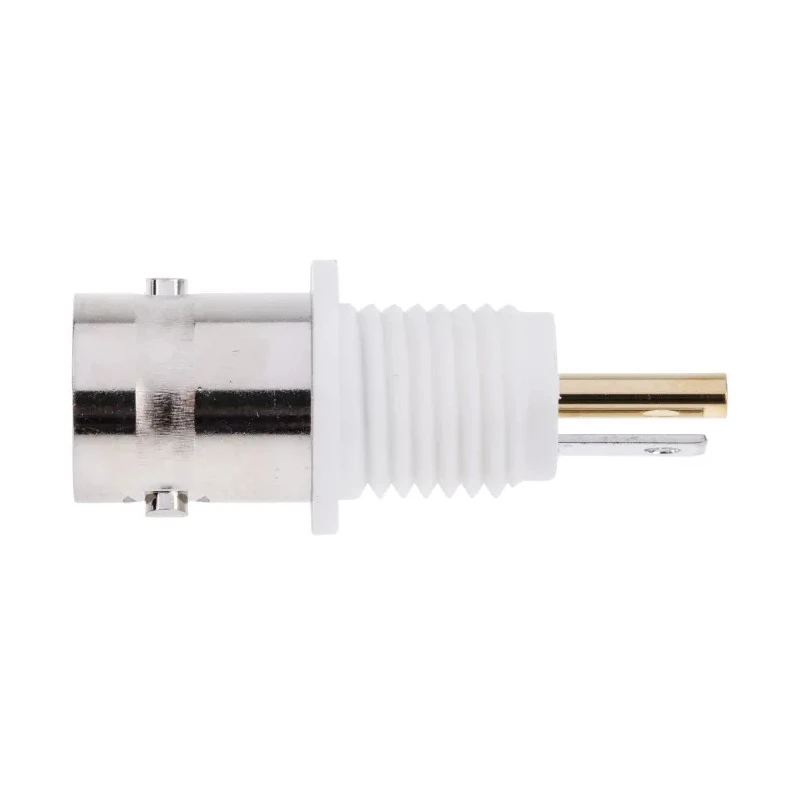

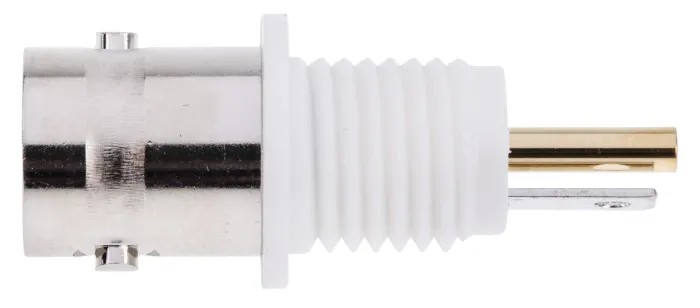

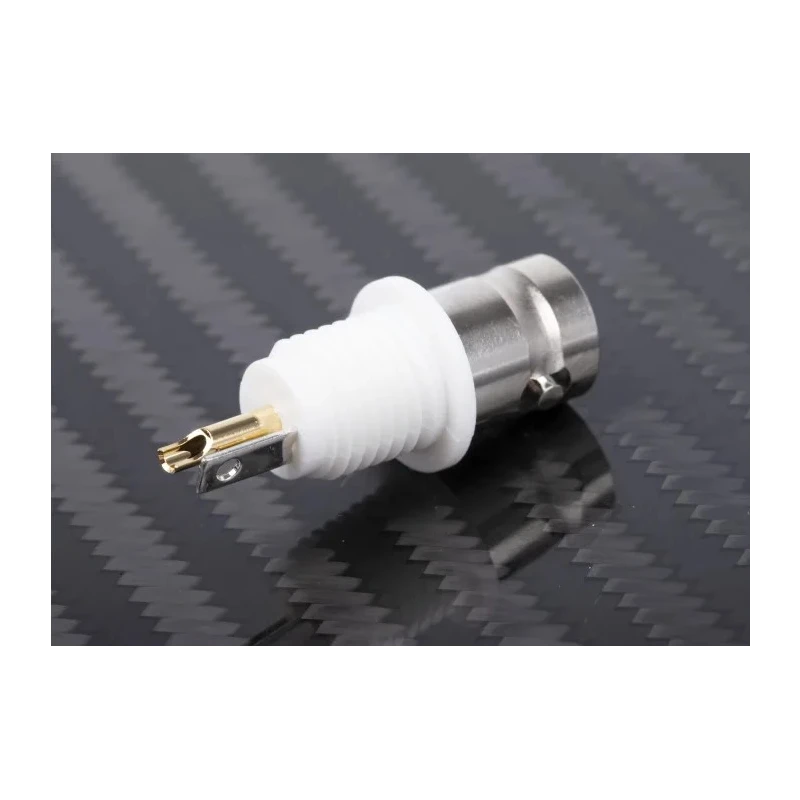

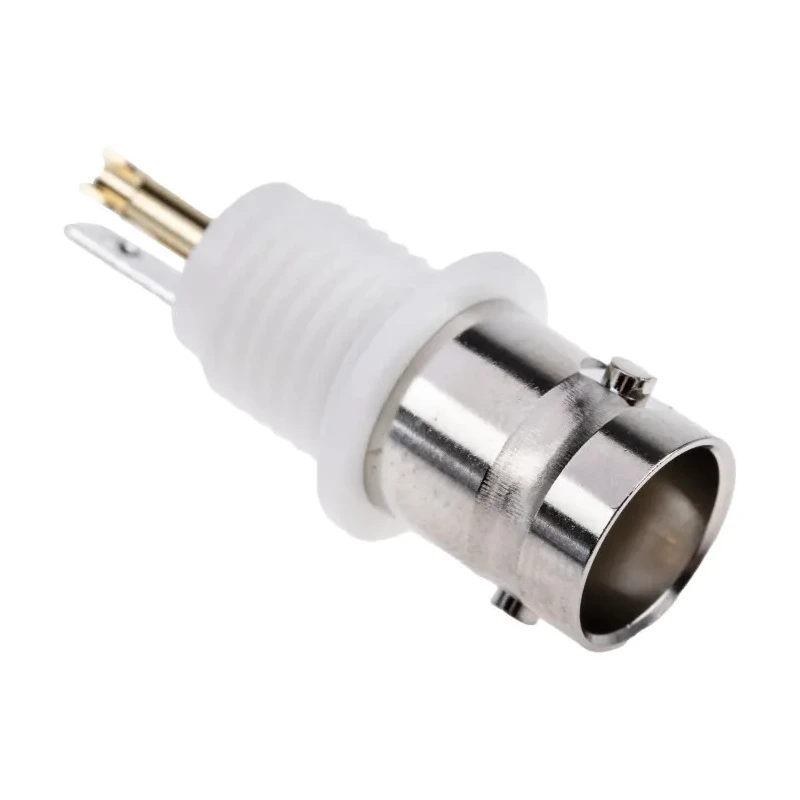

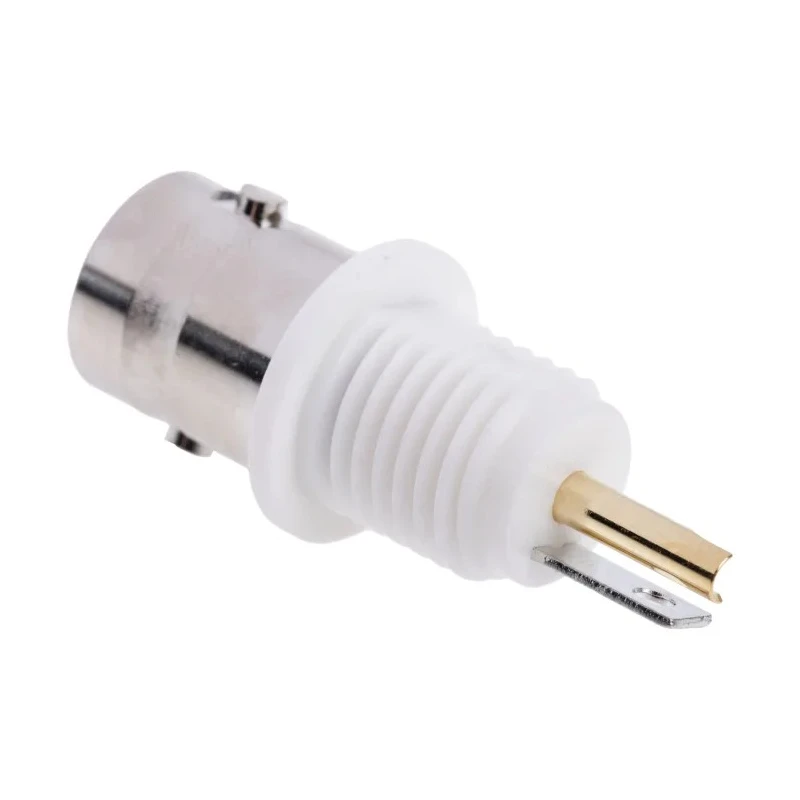

RS PRO Coaxial Connector Panel Mount Female BNC 50 Ω Straight Body Solder 546-4910

Name: RS PRO Coaxial Connector Panel Mount Female BNC 50 Ω Straight Body Solder 546-4910
Brand: RS PRO
SKU: 341594
Price: 5.44 USD
Availability: InStock



Category Coaxial Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Size	Standard
Brand	RS PRO
Orientation	Straight
Model	546-4910
Mount Type	Panel Mount
Operating Frequency	4GHz
Contact Material	Brass
Series	RS PRO
Termination Type	Solder
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-40°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	BNC
Body Plating	Nickel
• Insulation material	ABS
NiPt solder Insul BNC bulkhead skt,50ohmBrand	RS PRO
RS PRO Coaxial Connector Panel Mount Female BNC, 50 Ω, Vertical Body SolderBrand	RS PRO

Key Features

This BNC connector features a robust nickel plated body for durability.
Gold plated brass contacts ensure excellent conductivity and long service life.
Solder tab termination provides a secure and reliable connection.
Suitable for operating frequencies up to 4 GHz for high-performance RF applications.
Designed for panel mount installation with bulkhead and screw-on nut.
ABS insulator material improves reliability and insulation.
Operating temperature range from -40°C to 60°C for varied environments.
Ideal for applications in antenna connections, telecom, CCTV, satellite communications, and medical equipment.

Product Description

RS PRO 546-4910 Coaxial Connector Panel Mount Female BNC is a high-quality 50 Ω RF connector designed specifically for panel mounting applications. It is intended for use with coaxial cables in industrial, telecommunications, test, and broadcast environments. Featuring a straight body with solder tab termination, this connector ensures a secure, long-lasting electrical connection.

The connector housing is nickel plated, granting robust mechanical durability, while the centre pin contact is gold plated brass, enhancing conductivity and resistance to corrosion. An ABS insulator enhances electrical insulation and performance stability across a temperature range of -40°C to 60°C.

Its bayonet coupling mechanism provides quick and reliable mating, ideal for applications demanding frequent connection and disconnection. The connector supports operating frequencies up to 4 GHz, making it suitable for RF signal transmission in applications including antenna connections, cable modems, telecommunications, CCTV systems, satellite communication, and medical instrumentation.

The panel mount bulkhead jack includes a secure screw-on nut for mounting to panels and chassis, facilitating easy installation and maintenance. This BNC connector features a robust nickel plated body for durability. Gold plated brass contacts ensure excellent conductivity and long service life.

Solder tab termination provides a secure and reliable connection. Suitable for operating frequencies up to 4 GHz for high-performance RF applications. Designed for panel mount installation with bulkhead and screw-on nut.

ABS insulator material improves reliability and insulation. Operating temperature range from -40°C to 60°C for varied environments. Ideal for applications in antenna connections, telecom, CCTV, satellite communications, and medical equipment.

This Coaxial Connector is part of the RS PRO series renowned for engineering quality and reliability. It meets industrial requirements for electronic components and is an excellent choice for engineers seeking performance and durability in RF connector solutions.

Explore more RS PRO electronic connectors and components for comprehensive industrial and commercial applications at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating frequency of this BNC connector is 4 GHz, making it suitable for high-performance RF applications.

This model features a solder tab termination, which provides a secure and reliable electrical connection.

The operating temperature range for this connector is from -40°C to 60°C, allowing it to function in varied environments.

The connector has a nickel plated body for durability, gold plated brass contacts for excellent conductivity, and an ABS insulator for improved reliability and insulation.

This BNC connector is designed for panel mount installation and includes a bulkhead and screw-on nut for secure mounting to panels and chassis.

The impedance of this coaxial connector is 50 Ω, which is standard for RF applications.

The orientation of this connector is straight, which is typical for many BNC applications.

This connector is ideal for applications in antenna connections, telecommunications, CCTV systems, satellite communications, and medical equipment.

This connector has a female contact gender, which is typical for BNC connectors used in various applications.

The country of origin for this product is Taiwan.

This connector is classified as a standard size, which is common for panel mount applications.

The contacts of this connector are gold plated, which enhances conductivity and resistance to corrosion.
