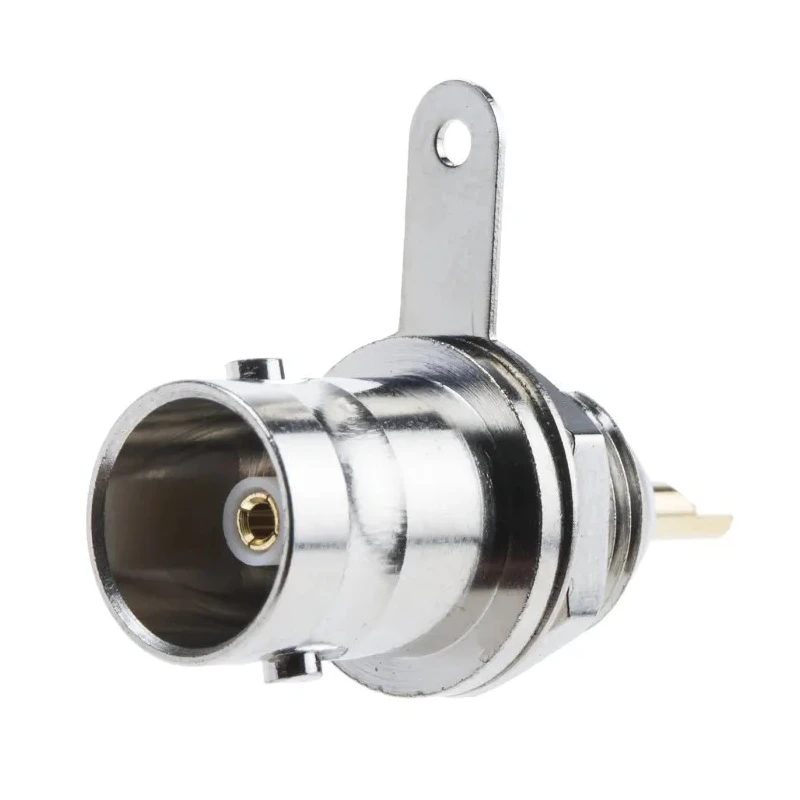

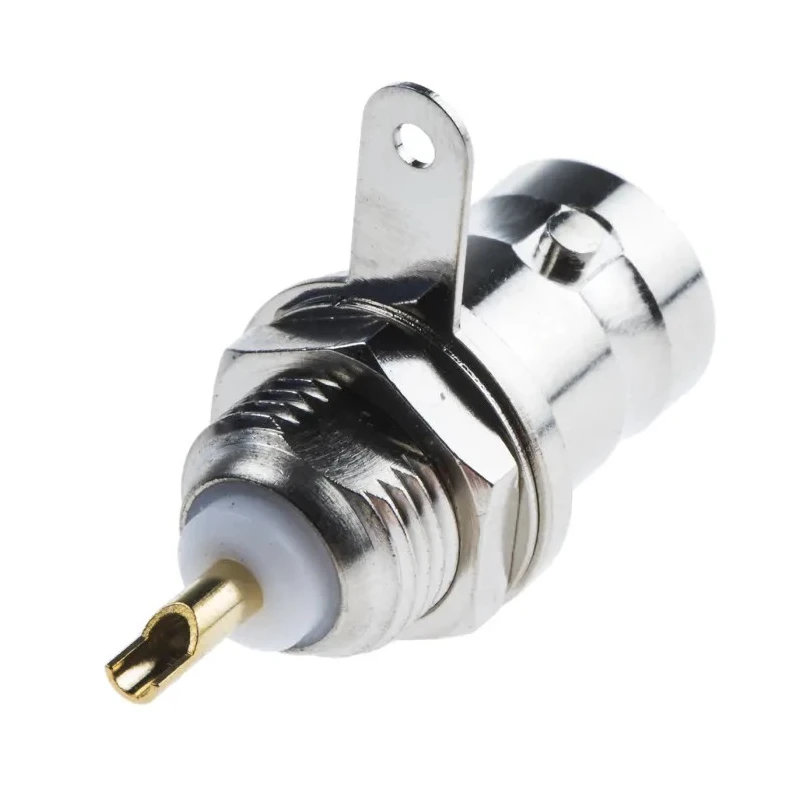

RS PRO Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Solder 546-4904
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-4904 |
| Mount Type | Panel Mount |
| Operating Frequency | 1GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| NiPt soldered std BNC bulkhead skt,75ohmBrand | RS PRO |
| RS PRO Coaxial Connector Panel Mount Female BNC, 75 Ω, Straight Body SolderBrand | RS PRO |
Key Features
- Panel mount type ensures secure and fixed installation.
- Female BNC connector supports 75 Ω impedance for optimal signal transmission.
- Straight body orientation enhances cable alignment and connection stability.
- Nickel plating on the body provides corrosion resistance and durability.
- Gold-plated brass contacts improve electrical conductivity and resist oxidation.
- Operating frequency up to 1 GHz suitable for RF applications.
- Solder termination method guarantees strong cable attachment.
- Bulkhead fitting resists accidental disconnection and improves mechanical strength.
Product Description
RS PRO 546-4904 is a high-quality coaxial connector designed for panel mount applications, featuring a female BNC interface with 75 Ω impedance and a straight body orientation. This connector is engineered to provide excellent electrical performance in RF signal transmission with minimal loss up to operating frequencies of 1 GHz. The nickel-plated body offers robust environmental protection against corrosion, making it suitable for industrial, laboratory, and commercial electronic systems.
The brass contact with gold plating enhances conductivity and prevents oxidation, ensuring long-lasting reliable connections. The solder termination type facilitates secure cable attachment, and the bulkhead mount design prevents accidental disconnection while providing sturdy mechanical stability. Its operating temperature range from -65°C to 165°C allows deployment in a variety of demanding temperature conditions.
Manufactured according to strict RoHS guidelines, this product minimizes hazardous substances in compliance with environmental regulations. The RS PRO 546-4904 coaxial connector is widely applicable in RF coaxial cable assemblies, broadcasting equipment, telecommunications, test instruments, and electronic control systems.
Panel mount female BNC connector with straight body and 75 Ω impedance. Nickel-plated body resists moisture-induced corrosion. Gold-plated brass contacts enhance electrical conductivity and durability. Solder termination secures strong and reliable cable connections.
Bulkhead fitting for secure cable locking and mechanical strength. Supports frequencies up to 1 GHz for high-performance applications. Wide operational temperature range from -65°C to 165°C ensures versatile usage. RoHS compliant construction guarantees environmental safety.
Explore RS PRO Coaxial Connectors and other electronic components on EnvMart for reliable connectivity solutions covering industrial, laboratory, telecommunications, and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector has an impedance of 75 Ω, which is optimal for RF signal transmission.
It supports operating frequencies of up to 1 GHz, making it suitable for high-performance RF applications.
This model features a panel mount design, ensuring secure and fixed installation.
The body is nickel-plated for corrosion resistance, and the contacts are made of brass with gold plating to enhance electrical conductivity.
It operates within a temperature range of -65°C to 165°C, allowing for versatile usage in various environments.
The connector uses a solder termination method, which guarantees a strong and reliable cable connection.
It has a straight body orientation, which enhances cable alignment and connection stability.
It is widely applicable in RF coaxial cable assemblies, broadcasting equipment, telecommunications, test instruments, and electronic control systems.
This model features a female contact gender, suitable for connecting with male connectors.
Yes, it is manufactured according to RoHS guidelines, minimizing hazardous substances and ensuring environmental safety.
It is classified as a standard size, which is typical for panel mount connectors.
The connector is manufactured in Taiwan.
