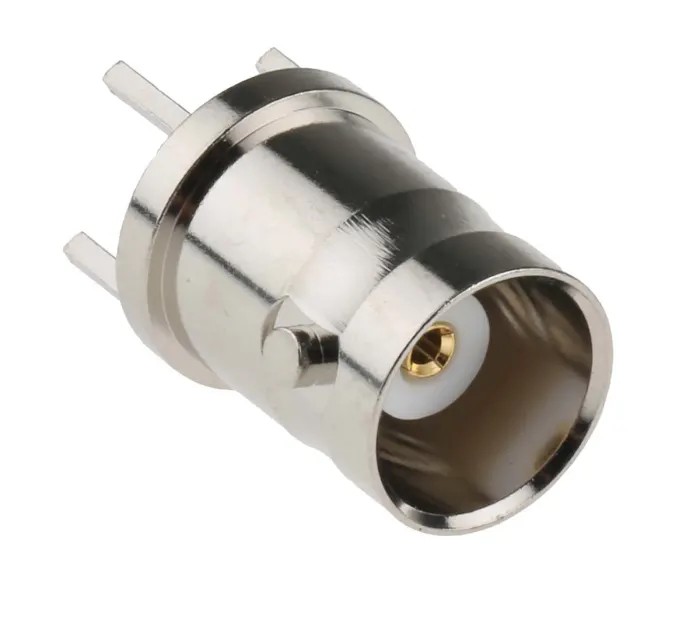

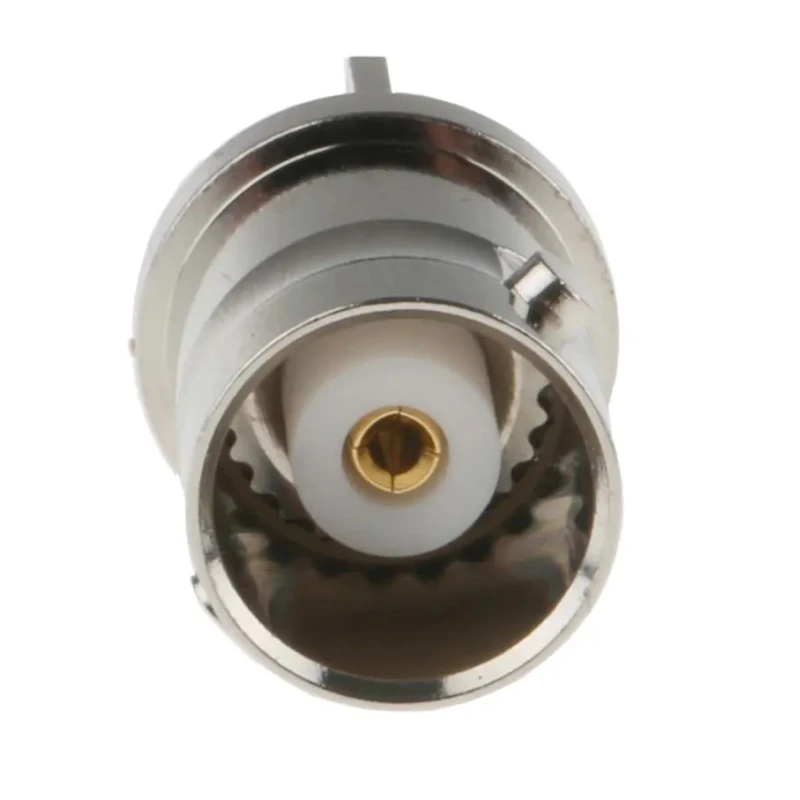

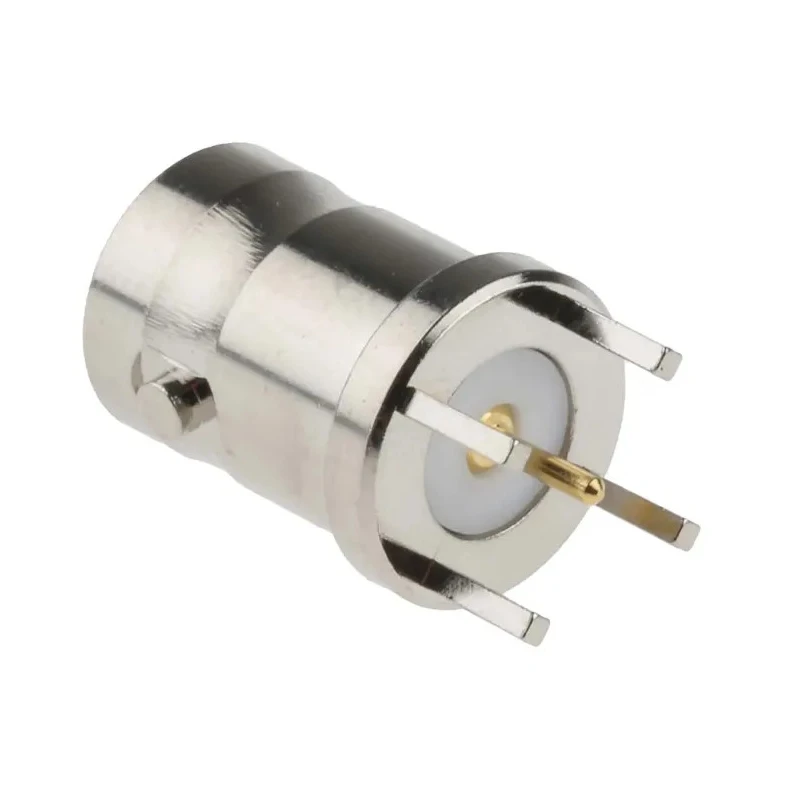

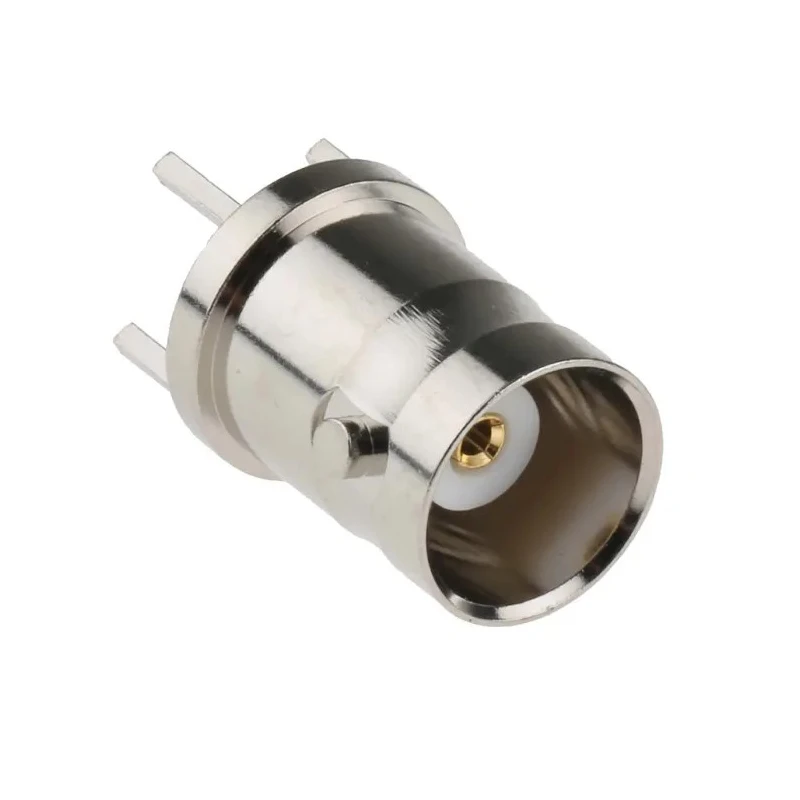

RS PRO Coaxial Connector PCB Female BNC 50 Ω Straight Body Through Hole 1 GHz Frequency 165°C Max Operating 546-4027
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-4027 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector PCB Female BNC, 50 Ω, Vertical Body Through HoleBrand | RS PRO |
| NiPt BNC straight PCB mount socket,50ohmBrand | RS PRO |
| TE Connectivity, jack Through Hole, 50Ω, Straight BodyBrand | TE Connectivity |
Key Features
- Operates at a frequency of 1 GHz for effective signal transmission.
- Features a straight body orientation with through hole termination for PCB mounting.
- Constructed with a nickel-plated body and gold-plated brass contacts for durability and conductivity.
- Supports operating temperatures from -65°C up to 165°C for versatile environmental conditions.
- Utilizes a PTFE insulation material to ensure signal integrity and reliability.
- Employs a bayonet coupling mechanism typical of BNC connectors for secure connection.
- Designed for RF, telecom, medical, CCTV, and test equipment applications.
Product Description
RS PRO 546-4027 coaxial connector PCB female BNC is a high-quality RF connector designed for through hole PCB mounting. With a 50 Ω impedance and 1 GHz maximum operating frequency, it guarantees reliable signal transmission in electronic circuits. The connector features a straight body with a durable nickel-plated metal exterior and gold-plated brass center contact to provide excellent conductivity and long service life.
Its PTFE insulator ensures high insulation reliability and signal integrity in demanding environments. This connector supports a wide operating temperature range from -65°C to 165°C, making it suitable for various industrial and commercial applications.
Equipped with a bayonet coupling system, it offers secure and convenient connection and disconnection, ideal for RF signal applications including telecom, medical equipment, CCTV, satellite communication, and antenna connections.
Operates effectively up to 1 GHz frequency for RF applications. 50 Ω impedance matching for consistent signal quality. Straight body through hole mount designed for PCB integration. Robust nickel-plated body with gold-plated brass contacts for durability and conductivity.
PTFE insulation for high reliability in signal transmission. Wide temperature tolerance from -65°C to 165°C. Bayonet coupling system for secure connections.
Manufactured in Taiwan, Province of China, RS PRO connectors combine quality engineering and reliability, suitable for industrial, laboratory, telecommunications, manufacturing, and security camera systems.
Explore more electronic components and Coaxial Connectors in the Electronics & Electricals category at EnvMart for professional solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 1 GHz, ensuring effective signal transmission for RF applications.
This model has an impedance of 50 Ω, which is standard for many RF applications to maintain signal quality.
It supports an operating temperature range from -65°C to 165°C, making it suitable for various environmental conditions.
The connector features a through hole termination type, designed for PCB mounting, which allows for secure integration into electronic circuits.
The connector has a nickel-plated body and gold-plated brass contacts, providing durability and excellent conductivity.
It employs a bayonet coupling mechanism, which allows for secure and convenient connections and disconnections.
The insulation material used is PTFE, which ensures high insulation reliability and signal integrity in demanding environments.
This model features a straight body orientation, suitable for various installation scenarios.
This coaxial connector is manufactured in Taiwan, Province of China.
It is designed for RF, telecom, medical, CCTV, and test equipment applications, making it versatile across different fields.
The connector has a female contact gender, which is typical for BNC connectors used in various applications.
The contacts are gold-plated, which enhances conductivity and helps prevent corrosion over time.
