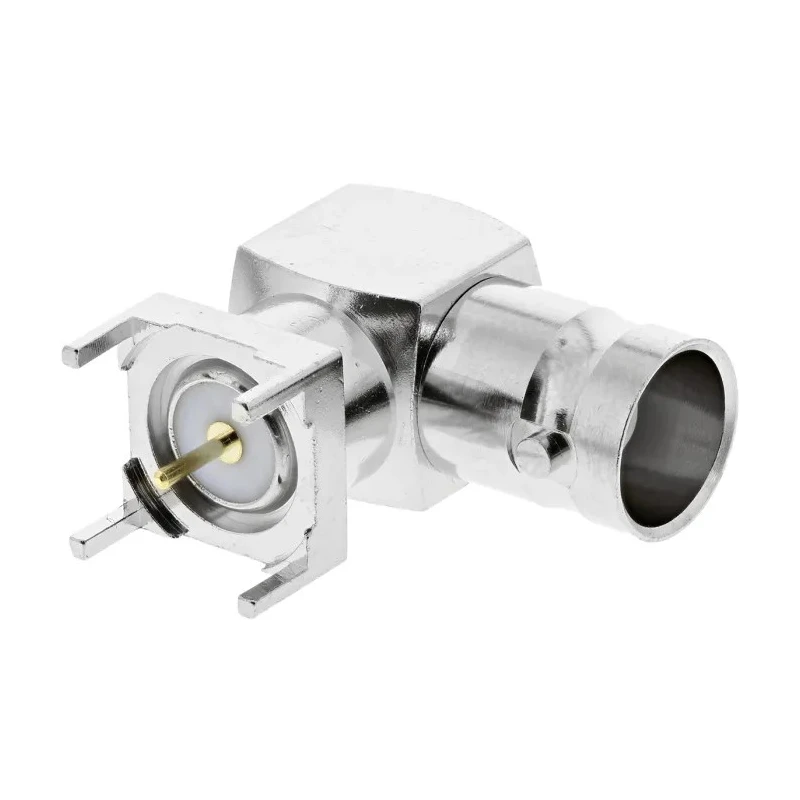

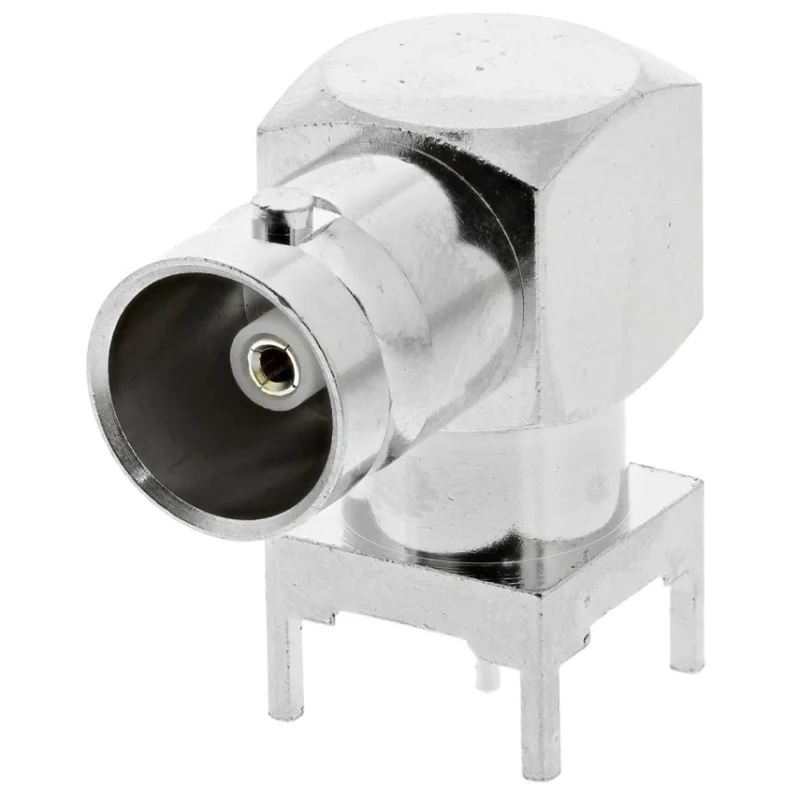

RS PRO Coaxial Connector PCB Female BNC, 75 Ω, Right Angle Body Through Hole 546-4061
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-4061 |
| Mount Type | PCB |
| Operating Frequency | 1GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Right angle body orientation for compact PCB mounting.
- Nickel plated brass body with gold-plated contacts for corrosion resistance.
- Operates reliably from -65°C to 165°C temperature range.
- Supports operating frequency up to 1 GHz for minimal signal loss.
- Through-hole termination type with normal polarity for secure connection.
- Polytetrafluoroethylene (PTFE) insulation ensures water resistance protection.
- Female connector gender for compatible BNC cabling.
- Manufactured in Taiwan, Province Of China with high quality standards.
Product Description
RS PRO 546-4061 coaxial connector is a high-quality female BNC type designed for PCB mounting with a right angle body orientation and 75 Ω impedance. It ensures a stable and reliable connection for electronic components and power connectors.
This connector features a nickel-plated brass body and gold-plated contacts, which provide excellent corrosion resistance and electrical conductivity. Its operating frequency supports up to 1 GHz, making it suitable for RF signal transmission while minimizing signal loss and interference.
With a temperature operating range from -65°C to 165°C, it functions effectively in harsh industrial and electronic environments. The through-hole termination method with normal polarity enhances connection security and durability on printed circuit boards.
The connector is insulated with polytetrafluoroethylene (PTFE) material, which protects against water ingress and potential damage. Its right angle design allows easy installation in tight spaces and along edges without bending cables incorrectly.
Right angle body orientation for compact PCB mounting. Nickel plated brass body with gold-plated contacts for corrosion resistance. Operates reliably from -65°C to 165°C temperature range. Supports operating frequency up to 1 GHz for minimal signal loss.
Through-hole termination type with normal polarity for secure connection. PTFE insulation ensures water resistance protection. Female connector gender for compatible BNC cabling. Manufactured in Taiwan, Province Of China with high quality standards.
Suitable for industrial, laboratory, and electronic assembly applications.
This RS PRO connector is ideal for electronic manufacturing, laboratory equipment, RF communication setups, and power distribution systems requiring reliable PCB coaxial connections. Compatible with RS PRO series connectors, it meets professional industry demands.
Explore more Coaxial Connectors and related electronic components and accessories at EnvMart for your precise application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 1 GHz, which helps minimize signal loss during transmission.
This connector has an impedance rating of 75 Ω, making it suitable for various RF applications.
It operates reliably within a temperature range from -65°C to 165°C, allowing use in various environments.
The connector uses a through-hole termination type with normal polarity for secure connections on printed circuit boards.
The body is made of nickel-plated brass, and the contacts are gold-plated to provide corrosion resistance and good electrical conductivity.
This model features a right angle body orientation, which facilitates compact PCB mounting in tight spaces.
It is insulated with polytetrafluoroethylene (PTFE), which offers protection against water ingress.
The contact gender of this connector is female, making it compatible with male BNC cabling.
This connector is manufactured in Taiwan, Province Of China, adhering to high quality standards.
It is suitable for industrial, laboratory, and electronic assembly applications, particularly in RF communication setups.
The connector is classified as a standard size, which is typical for PCB mounting applications.
This connector belongs to the RS PRO series, which is known for its reliable electronic components.
