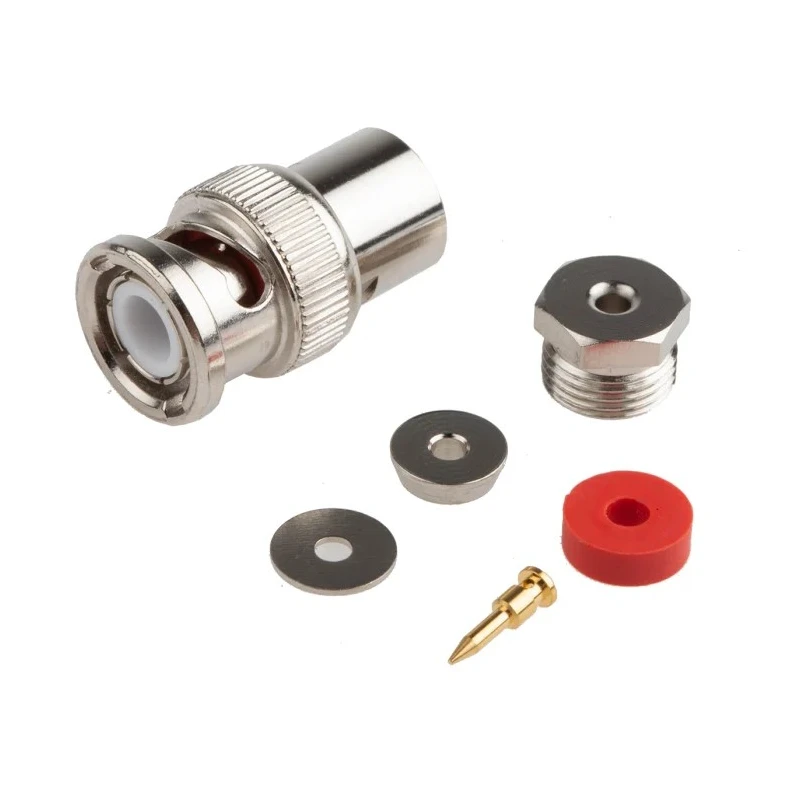

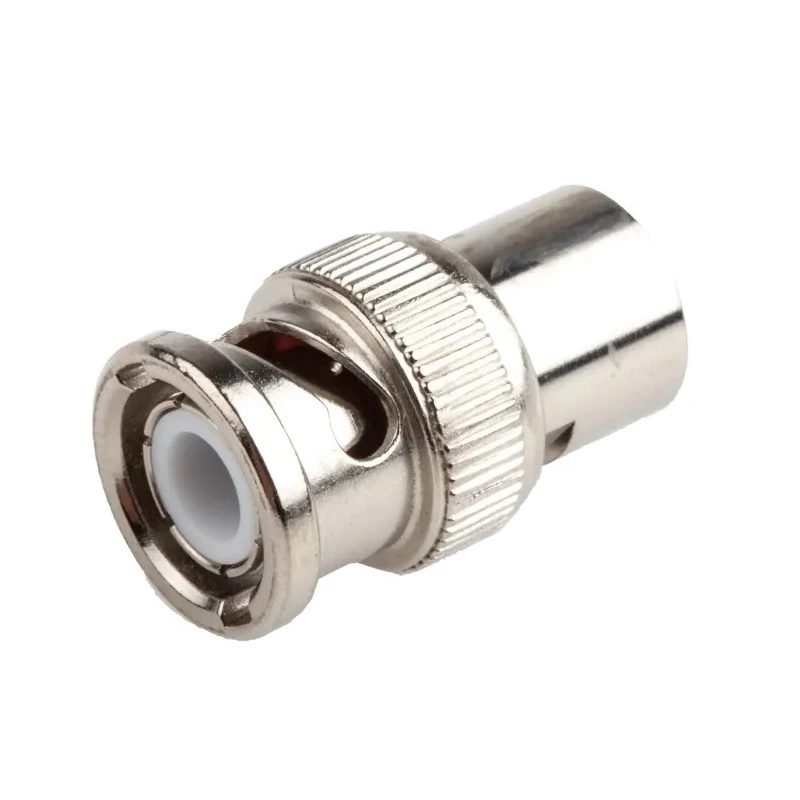

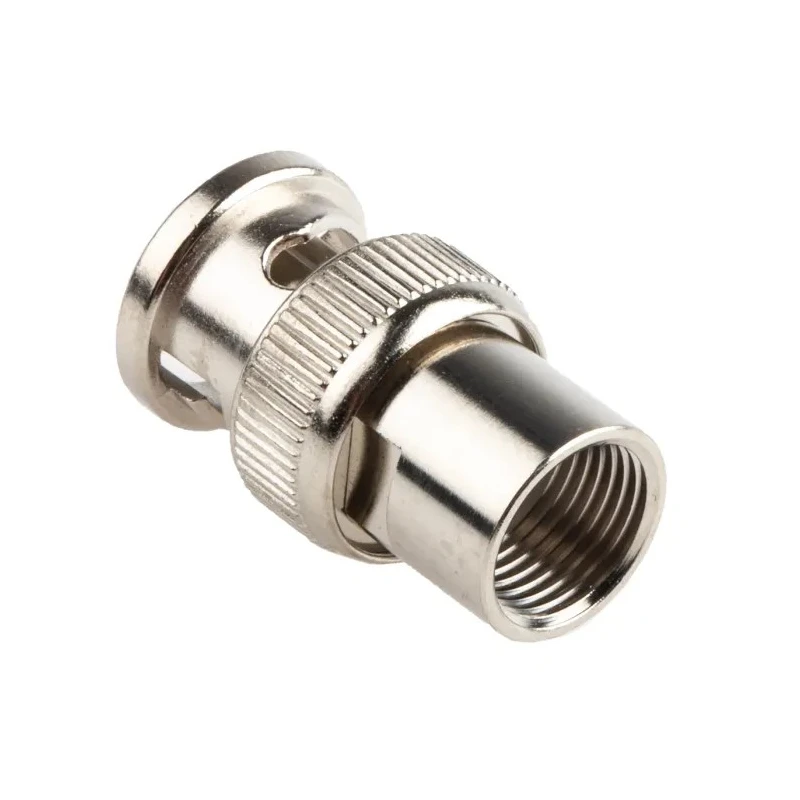

RS PRO Coaxial Connector Cable Male BNC 50 Ω Straight Body Clamp 546-3816
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3816 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Clamp |
| Maximum Operating Temperature | 60°C |
| Cable Type | RG178 |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector Cable Male BNC, 50 Ω, Straight Body ClampBrand | RS PRO |
| Clamp BNC straight plg-RG178Ncable,50ohmBrand | RS PRO |
Key Features
- The connector utilizes a nickel plated body for robust durability.
- Gold plated male contacts ensure high conductivity and long service life.
- Designed for RG178 coaxial cables with clamp termination for secure attachment.
- Operates reliably within a temperature range of -40°C to 60°C.
- Supports operating frequency up to 4 GHz for high-frequency applications.
- Includes PTFE insulation material for enhanced reliability.
- Ideal for RF signal applications including CCTV, telecom, and medical equipment.
- Employs a bayonet coupling system typical of BNC connectors for easy connection.
Product Description
RS PRO 546-3816 Coaxial Connector Cable Male BNC is a high-quality RF coaxial connector designed for use with RG178 coaxial cables. It provides a 50 Ω impedance and supports frequencies up to 4 GHz, ensuring reliable signal transmission in various high-frequency applications.
The connector body is nickel plated, providing excellent durability and resistance to wear. The center pin contact is male and gold plated, offering superior conductivity and long-term performance. The cable clamp termination method ensures a secure and stable cable connection, which is simple to install with a screw-on action.
This connector operates effectively in a wide temperature range from -40°C up to 60°C, making it suitable for use in harsh environments. The insulation material used is PTFE, known for its excellent electrical and thermal characteristics, further enhancing the connector's overall reliability.
Applications of the RS PRO 546-3816 connector include antenna connections, cable modems, telecom systems, medical equipment, satellite communications, and CCTV systems. The bayonet coupling mechanism provides a secure and convenient locking system to maintain stable and efficient connections.
The connector utilizes a nickel plated body for robust durability. Gold plated male contacts ensure high conductivity and long service life. Designed for RG178 coaxial cables with clamp termination for secure attachment.
Operates reliably within a temperature range of -40°C to 60°C. Supports operating frequency up to 4 GHz for high-frequency applications. Includes PTFE insulation material for enhanced reliability. Ideal for RF signal applications including CCTV, telecom, and medical equipment.
Employs a bayonet coupling system typical of BNC connectors for easy connection.
This product is manufactured in Taiwan, Province of China and offers new product condition standards from RS PRO, a trusted brand known for rigorously tested, high-quality industrial components.
Browse more Coaxial Connector solutions at EnvMart, your industrial partner for reliable electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 4 GHz, making it suitable for high-frequency applications.
It is designed for use with RG178 coaxial cables, utilizing a clamp termination for secure attachment.
This connector operates reliably within a temperature range of -40°C to 60°C, allowing it to function in harsh environments.
The connector features a nickel plated body for durability, gold plated male contacts for high conductivity, and PTFE insulation material for enhanced reliability.
This model has an impedance rating of 50 Ω, which is standard for many RF applications.
The connector uses a clamp termination method, which ensures a secure and stable cable connection through a screw-on action.
This connector features male contacts, making it suitable for various RF signal applications.
This product is manufactured in Taiwan, Province of China.
It is ideal for RF signal applications including CCTV, telecom systems, medical equipment, and satellite communications.
It employs a bayonet coupling system, typical of BNC connectors, for easy and secure connection.
The contact material is brass, which is commonly used for its good electrical conductivity.
This model features a straight orientation, making it suitable for direct cable connections without bends.
