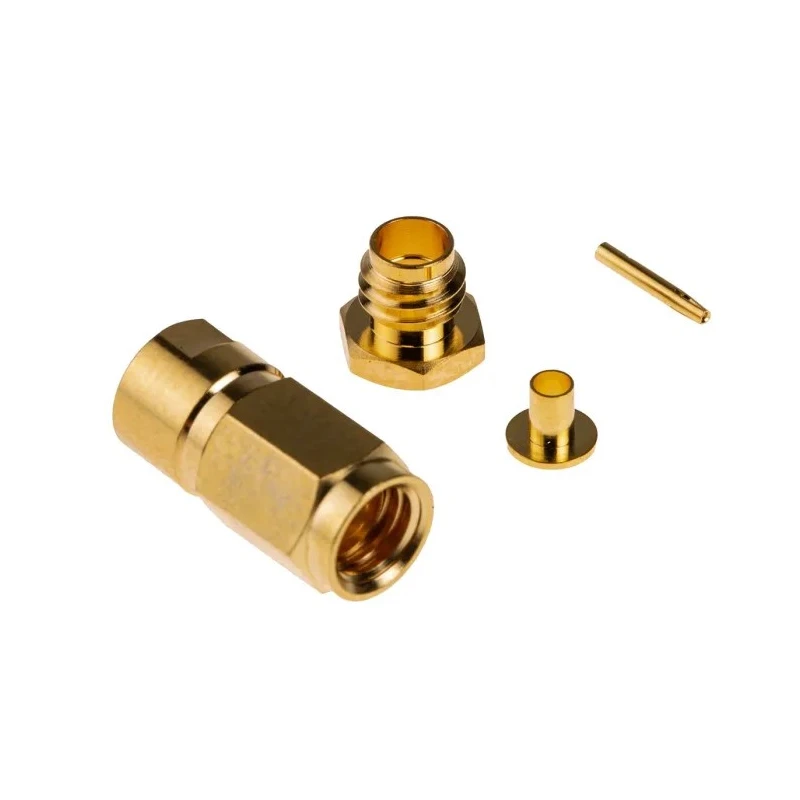

RS PRO Coaxial Connector Cable Male SMC, 50 Ω, Straight Body Clamp 546-3428

Name: RS PRO Coaxial Connector Cable Male SMC, 50 Ω, Straight Body Clamp 546-3428
Brand: RS PRO
SKU: 341578
Price: 19.3 USD
Availability: InStock



Category Coaxial Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Size	Subminiature
Brand	RS PRO
Orientation	Straight
Model	546-3428
Mount Type	Cable
Operating Frequency	10GHz
Contact Material	Beryllium Copper
Series	RS PRO
Termination Type	Clamp
Maximum Operating Temperature	165°C
Cable Type	RG174A/U
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	SMC
Body Plating	Gold
RS PRO Coaxial Connector Cable Male SMC, 50 Ω, Straight Body ClampBrand	RS PRO
Clamped SMC female straight plg-RG174A/UBrand	RS PRO

Key Features

This coaxial connector features a subminiature SMC type compatible with RG174 A/U cable.
It has a male connector gender with a straight orientation for reliable connections.
The connector uses a clamp termination method ensuring secure cable mounting.
Operating frequency is rated up to 10 GHz, suitable for high-frequency signal transmission.
Body and contact are plated with gold for excellent corrosion resistance and signal integrity.
Contact material is beryllium copper, contributing to durability and performance.
Wide operating temperature range from -65°C to 165°C ensures reliability in harsh environments.
It features normal polarity and a threaded coupling design for secure assembly.

Product Description

RS PRO 546-3428 Coaxial Connector Cable Male SMC is a subminiature 50 Ω straight body clamp type coaxial connector designed for use with RG174 A/U cables. This high-quality connector provides excellent electrical performance with an operating frequency of up to 10 GHz, making it ideal for RF signal transmission in electronics, communication, and industrial applications.

The male connector features a robust gold-plated body and contact, which protects against corrosion and vibration, ensuring stable connections and reducing electromagnetic interference (EMI). The beryllium copper contact material enhances durability and conductivity.

The connector uses a clamp termination method, allowing easy and secure cable mounting with the appropriate clamping tools. It operates reliably within a temperature range of -65°C to 165°C, suitable for a variety of environmental conditions.

This coaxial connector is designed with normal polarity and a threaded coupling mechanism that facilitates firm and vibration-proof cable connections, maintaining signal integrity and preventing accidental disconnections.

RS PRO products are developed under stringent quality controls and tested for industry standards to ensure durability and reliable performance across laboratory, industrial, telecommunications, and electronic manufacturing sectors.

Subminiature SMC type Coaxial Connector suitable for RG174 A/U cables. Male connector with straight body orientation for reliable signal transmission. Clamp termination ensures secure cable mounting. 10 GHz maximum operating frequency for high-speed data communication.

Gold plating on body and contacts for corrosion resistance and EMI protection. Beryllium copper contacts provide long-lasting conductivity. Wide operating temperature range from −65°C to 165°C for diverse applications. Threaded coupling design prevents accidental disconnects due to vibration.

Ideal for applications in electronics, telecommunications, industrial, and test equipment. Explore more RS PRO connectors and coaxial components to meet your specific electronic and RF connection requirements here at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating frequency of this coaxial connector is 10 GHz, making it suitable for high-frequency signal transmission.

This model is compatible with RG174 A/U cables, designed specifically for use with this coaxial connector type.

The connector uses a clamp termination method, which ensures secure cable mounting and stable connections.

The contacts are made of beryllium copper, and both the body and contacts are plated with gold for corrosion resistance and improved signal integrity.

It operates reliably within a temperature range of -65°C to 165°C, suitable for various environmental conditions.

This connector features a male gender with a straight body orientation, designed for reliable signal transmission.

The threaded coupling design facilitates secure assembly, preventing accidental disconnections due to vibration and ensuring stable connections.

The impedance rating of this connector is 50 Ω, which is standard for many RF applications.

The country of origin for this coaxial connector is Taiwan.

This connector is classified as a subminiature size, suitable for compact applications.

This model is ideal for use in electronics, telecommunications, industrial applications, and test equipment.

Gold plating on the contacts enhances corrosion resistance and reduces electromagnetic interference (EMI), contributing to stable connections.
