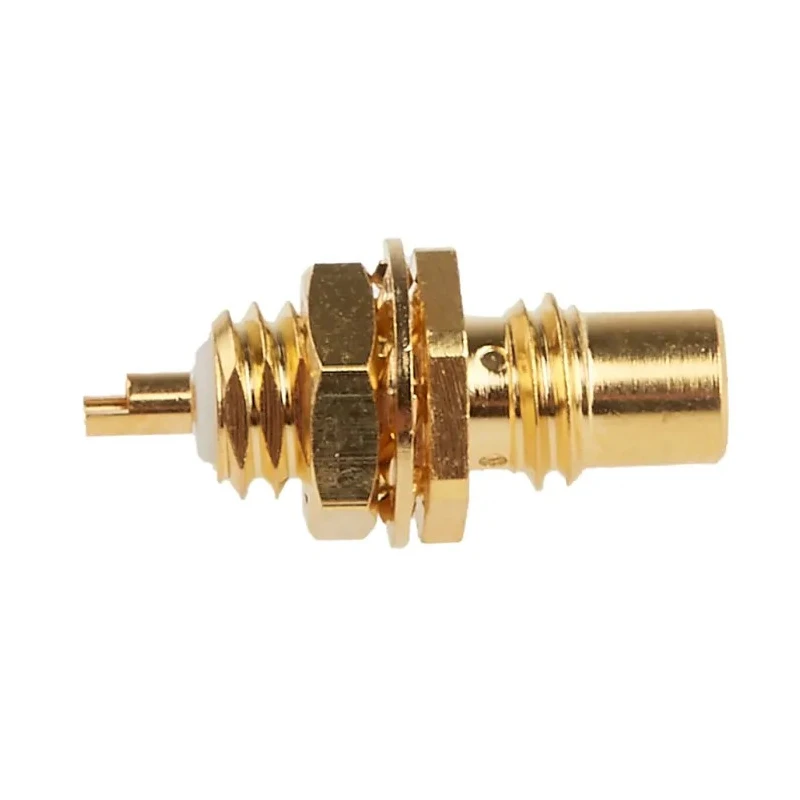

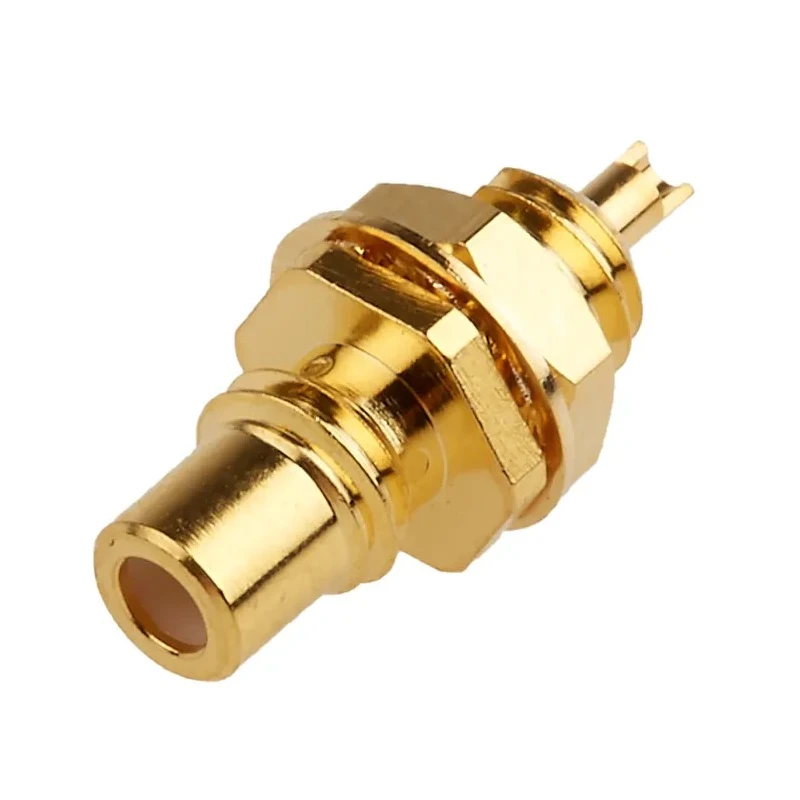

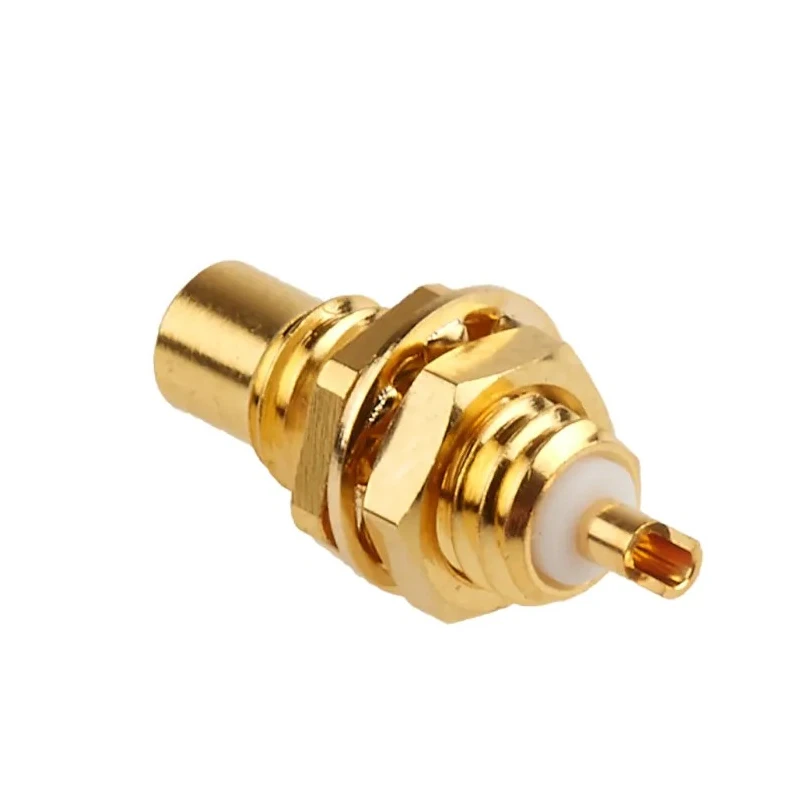

RS PRO Coaxial Connector Panel Mount Female SMC, 50 Ω Impedance, Straight Body, Solder Termination 546-3440

RS PRO 546-3440 Coaxial Connector Panel Mount Female SMC is a premium coaxial connector designed for professional electronic and RF applications. This connector features a subminiature design with a straight body and panel mount style, making it ideal for compact and secure installations.

With an impedance of 50 Ω, it ensures optimal signal transmission and minimal loss, suitable for communication and measurement devices. The gold-plated body and contacts provide excellent conductivity and corrosion resistance, enhancing the durability and performance of the connector.

The connector is designed for use with RG174A/U coaxial cable, terminated via soldering to ensure a stable electrical connection. It supports operating frequencies up to 10 GHz, making it suitable for high-frequency applications including telecommunications, aerospace, and test equipment.

The operating temperature range from -65°C to 165°C enables reliable performance in harsh environments, including industrial and laboratory settings. The bulkhead receptacle design permits secure panel mounting, preventing movement and ensuring a stable connection even in vibrating applications.

This RS PRO connector is constructed with a brass contact core and features a female contact gender, following standard connector designs for seamless compatibility with male connectors. The polarity is normal and the series belongs to RS PRO's trusted range of coaxial connectors.

This coaxial connector is suitable for panel mount configurations. It offers a 50 Ω impedance ideal for RF signal transmission. Constructed with gold plating for excellent conductivity and corrosion resistance. Compatible with RG174A/U cable type with solder termination.

Designed to operate efficiently up to 10 GHz frequency. Capable of operating within a temperature range of -65°C to 165°C. Features a female connector gender with brass contact material. This component includes a bulkhead receptacle ensuring secure mounting.

Gold-plated contacts guarantee reliable signal integrity.

This Coaxial Connector is essential for professional industrial, telecommunications, laboratory, and manufacturing environments where reliable and high-performance RF connections are required. Browse the Electronics Components category on EnvMart for compatible connectors and accessories to complete your installation needs.
